Please Find Below A List of PCB's For Upgrading Your Rotator Controller.



  Yaesu_93x20.jpg - 3.97 kB

  yLED-dc.



 (Qty 5) (FOR SALE) $22.00 each AUD.



 The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb



 Watch the yLED-dc video on YouTube

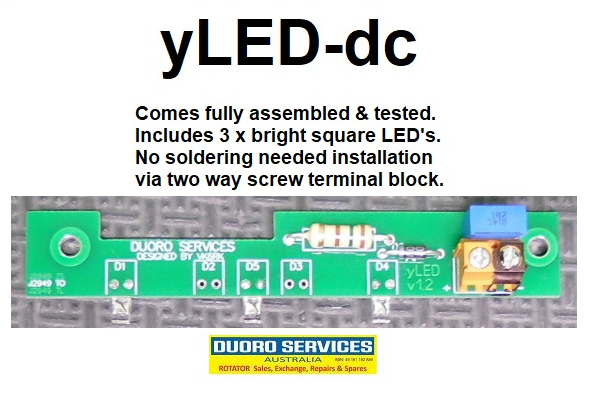

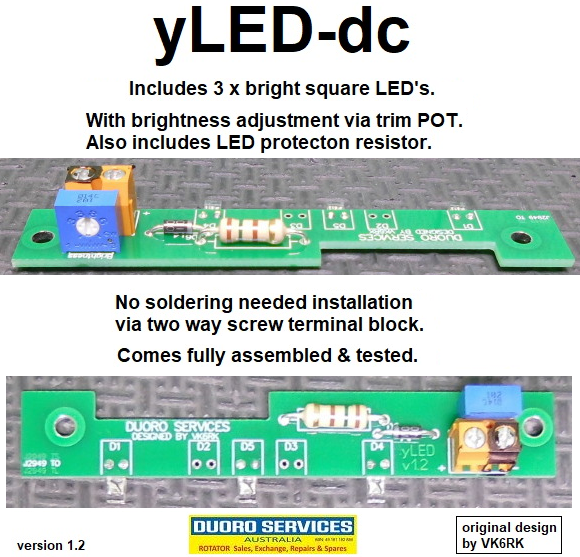

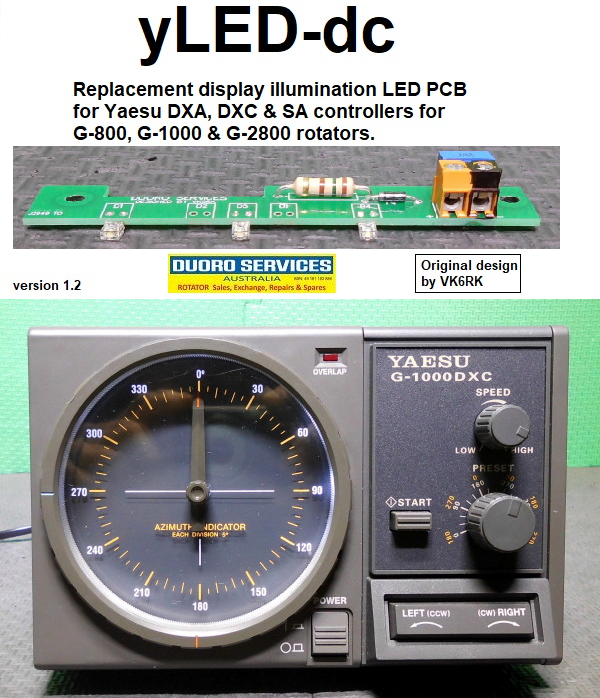

 yLED-dc. Replacement display illumination LED PCB for Yaesu DXA, DXC & SA controllers for G-800, G-1000 & G-2800 rotators.
Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Screw terminal block for non soldering installation + full install instructions.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver, Black marker & Watch the yLED-dc video.

Australia wide postage ($12.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.





  Yaesu_93x20.jpg - 3.97 kB

 yLED-dc-XL-A/C.



 (Qty 4) (FOR SALE) $24.00 each AUD.



 The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb



 Watch the yLED-dc-XL-A/C video on YouTube

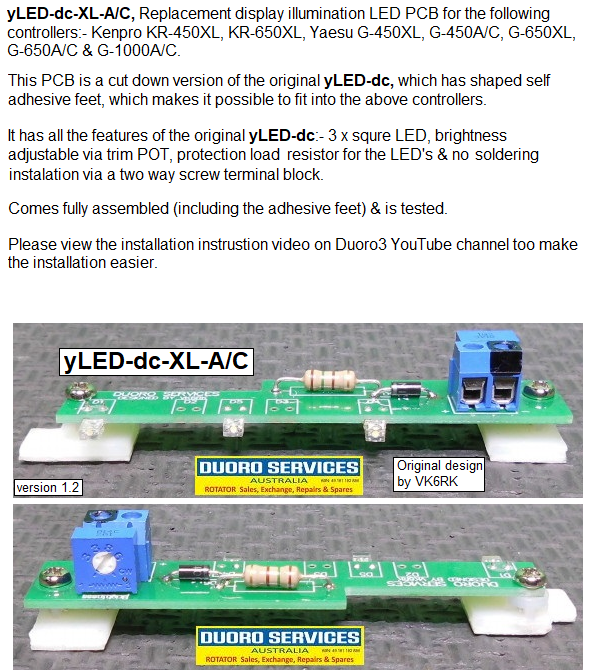

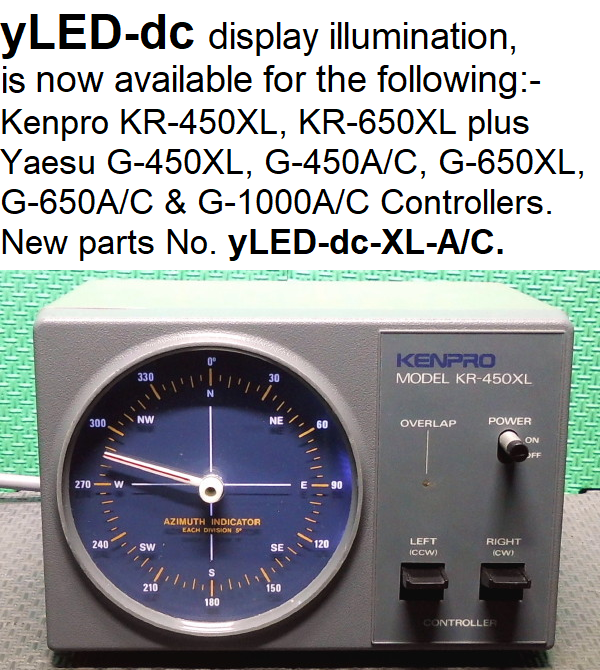

 yLED-dc-XL-A/C. Replacement display illumination LED PCB for Kenpro KR-450XL, KR-650XL, Yaesu G-450XL, G-650XL, G-450A/C, G-650A/C & G-1000A/C controllers.

This PCB is a cut down version of the original yLED-dc, to fit pass the direction switch of the above controllers, it also has self adhesive feet for mounting.

Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Screw terminal block for non soldering installation + full install instructions.

Comes fully assembled including the feet) & is tested.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver, Black marker & Watch the yLED-dc video.

Australia wide postage ($12.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.



  Yaesu_93x20.jpg - 3.97 kB

 yLED-ac.



 (Qty 5) (FOR SALE) $24.00 each AUD.



 The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb



 Watch the yLED-ac KR-800s video on YouTube

 Watch the yLED-ac G-1300 video on YouTube

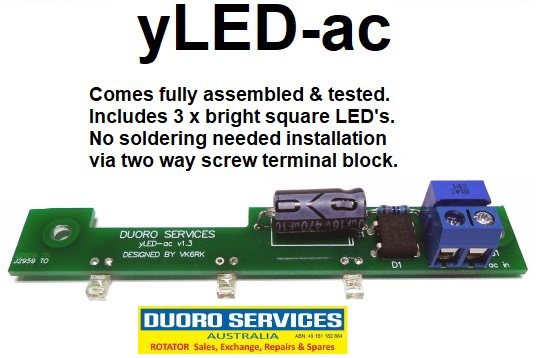

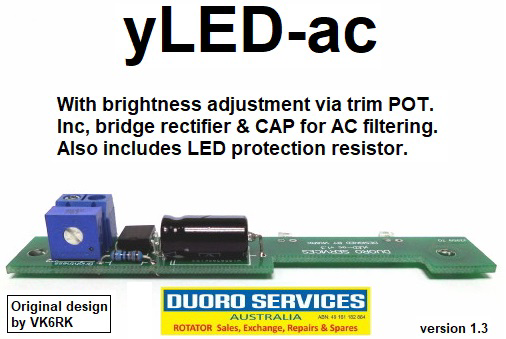

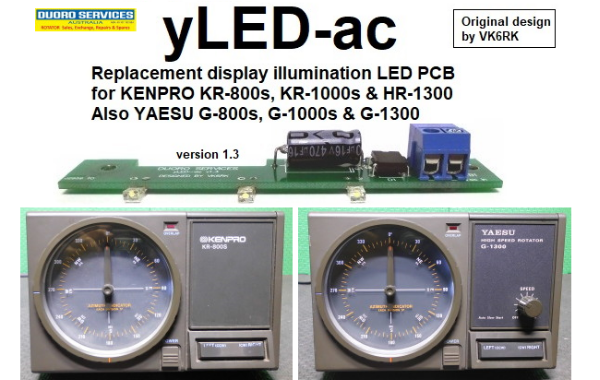

 yLED-ac. Replacement AC display illumination LED PCB for KENPRO KR-800s, KR-1000s & HR-1300 controllers, Also YAESU G-800s, G-1000s & G-1300 controllers.
Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting resistor, Bridge rectifier & 470uF 16v CAP (for minimal ac pulsing LEDs), Terminal block for non soldering installation + install instructions.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac videos.

Australia wide postage ($12.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.





 New.

  Yaesu_93x20.jpg - 3.97 kB

 yLED-ac-AE.



 (Qty 4) (FOR SALE) $28.00 each AUD.



 The pics below are of the actual item for sale.







youtube-logo-full_color100.jpg - 5.00 Kb

 Watch the yLED-ac-AE install video on YouTube

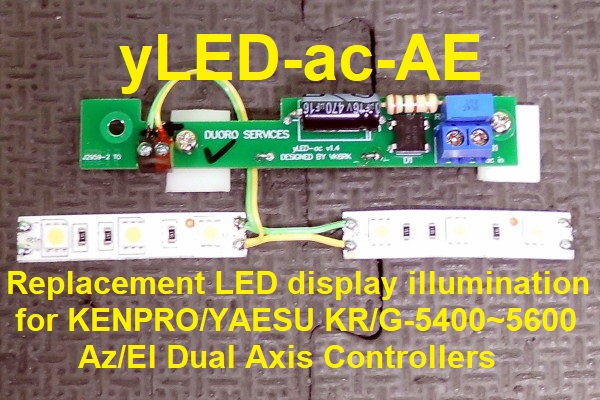

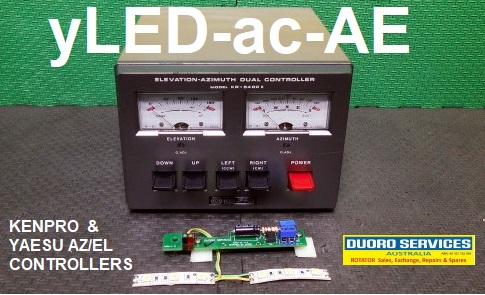

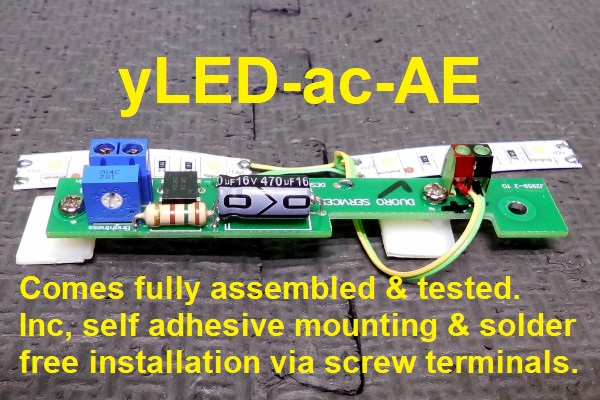

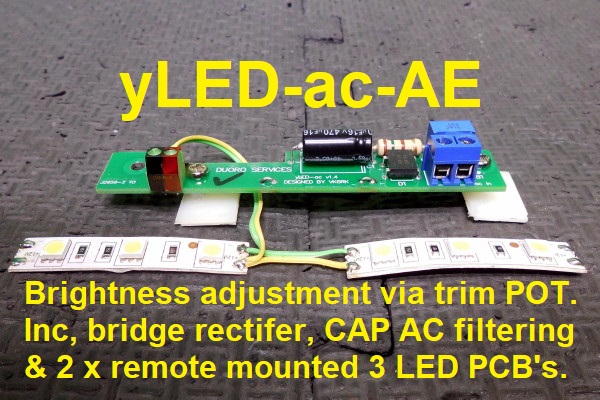

 yLED-ac-AE. Replacement display illumination LED PCB for YAESU G-5400, G-5500 & G-5600 Dual axis controllers, Also  KENPRO KR-5400, KR-5500 & KR-5600 dual axis controllers.
Comes standard with 2 remote 3 white LED self adhesive PCB , Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Input & output terminal block for non soldering installation + install instructions.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac-AE video.

Australia wide postage ($12.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.





New.

  Yaesu_93x20.jpg - 3.97 kB

 yLED-ac-KR.



 (Qty 4) (FOR SALE) $26.00 each AUD.



 The pics below are of the actual item for sale.







youtube-logo-full_color100.jpg - 5.00 Kb

 Watch the yLED-ac-KR install video on YouTube

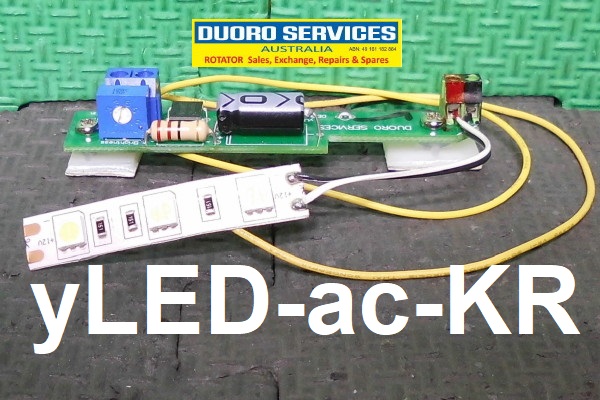

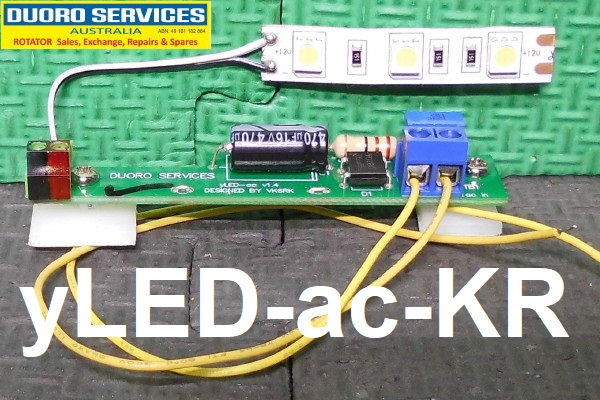

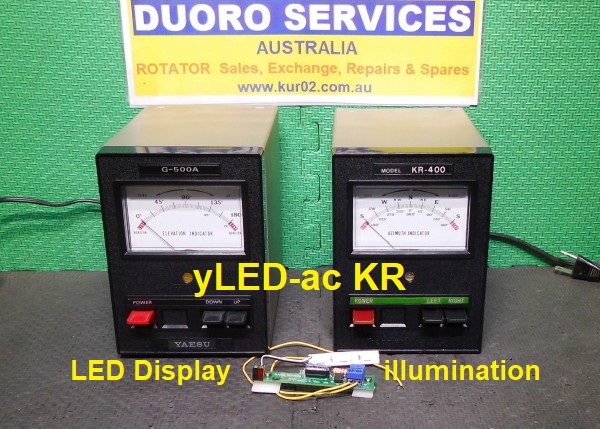

 yLED-ac-KR. Replacement display illumination LED PCB for KENPRO :- KR-400, KR-500,  KR-600 & KR-2000, Also YAESU G-400, G-500, G-550, G-600 & G-2000 controllers.
Comes standard with a remote 3 white LED self adhesive flexible PCB, Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Input & output terminal block & includes wiring for input + install instructions.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver, Soldering iron etc & Watch the yLED-ac-KR video.

Australia wide postage ($12.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.





 logo logo

 yLED-ac-HG.



 (Qty 5) (FOR SALE) $24.00 each AUD.



 The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb



 Watch the yLED-ac-HG install video on YouTube

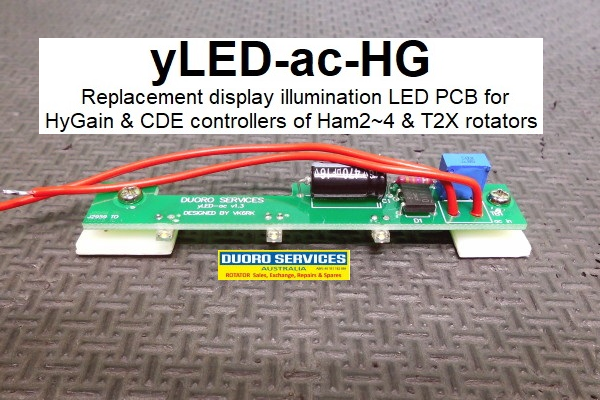

 NEW - yLED-ac-HG. Replacement display illumination LED PCB for HyGain & CDE controllers of Ham2~4 & T2X rotators.

Full assembled (including adhesive feet) & tested.

Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), 2 x self adhesive feet & flying power leads + full install instructions. .

Tools require for easy installation:- Philips screwdriver, Soldering iron, Trim POT adjuster flat screw driver & Watch the yLED-ac-HG installation video.

Australia wide postage ($12.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.





  Yaesu_93x20.jpg - 3.97 kB

 yLED-ac-RC.



 (Qty 4) (FOR SALE) $26.00 each AUD.



 The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb



Watch the yLED-ac-RC video on YouTube

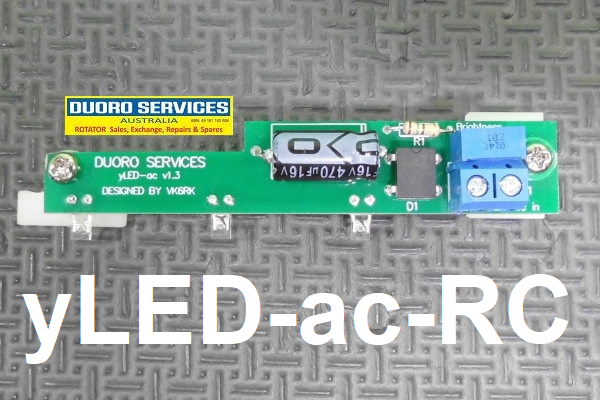

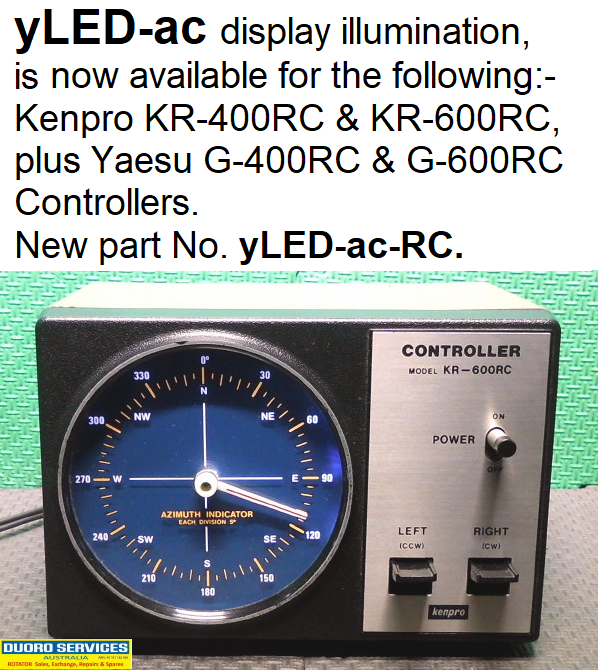

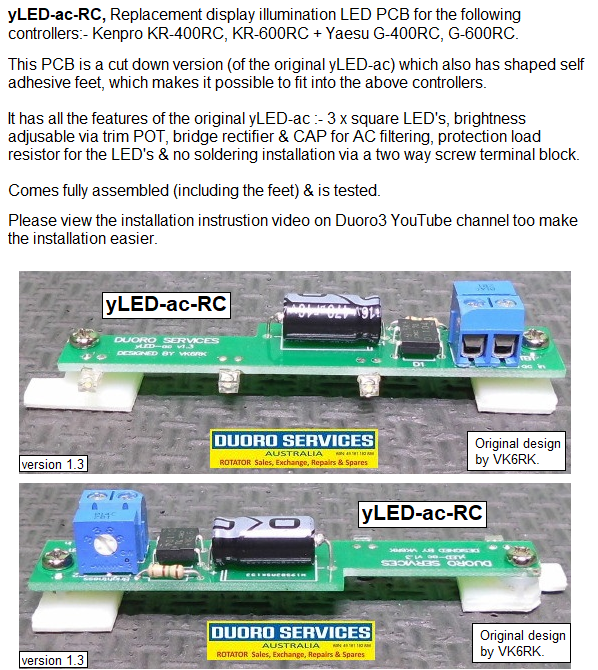

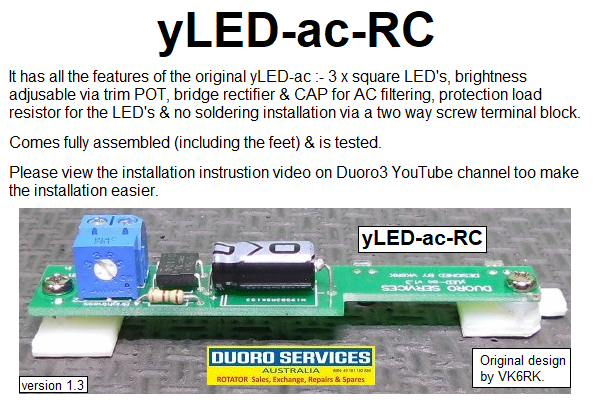

 yLED-ac-RC. Replacement display illumination LED PCB for Kenpro KR-400RC, KR-600RC, Yaesu G-400RC, G-600RC controllers.

This PCB is a cut down version of the original yLED-ac, to fit pass the direction switch of the above controllers, it also has self adhesive feet for mounting.

Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting resistor, Bridge rectifier & 470uF 16v CAP (for minimal ac pulsing LEDs), Terminal block for non soldering installation + install instructions.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac videos.

Australia wide postage ($12.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

Comes fully assembled (including the feet) & is tested.





  logo logo

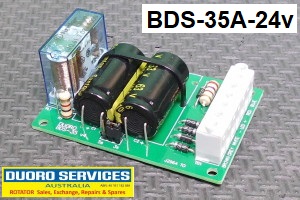

 BDS-35A-24v.



 Brake Delay PCB for Kenpro KR-2000 & Yaesu G-2000 rotators

 Plus CDE/HyGain Ham series & T2X rotators



 (Qty 2) (FOR SALE) $69.00 each AUD.



 The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb

 Watch the Kenoro KR-2000AB rotator in action



 NEW & IMPROVED v4. .

 Includes selectable 3 or 5 second delay, 16 Amp DPDT relay, 7 way 16 Amp terminal block for all wiring termination including LED brake action output.

By re-wiring the brake switch it can be configured into being a manual override/full auto brake switch (no more forgetting to turn the brake back on). L 72mm x W 49mm x H 27mm. Mounts on top of the transformer. View the YouTube video of the KR-2000AB in action on the rotator sales page video section.

I can do this upgrade for you, please contact me for a price.





 logo



 BDS-35A-100v.

  Brake Delay PCB for EMOTATOR 1100m, 1102 & 1103 rotators.



 (Qty 2) (FOR SALE) $69.00 each AUD.



 The pics below are of the actual item for sale.





 NEW & IMPROVED v4.

 Brake Delay PCB (assembled) for :- 1100M, 1102/3 MSA & MX etc controllers.

This is a 100v AC version, PCB.

Includes:-

Selectable 3 or 5 second delay via jumper link.

16 Amp DPDT relay & 7 way 16 amp PCB mount terminal block.

No soldering needed onto the PCB.

Also includes brake action LED output.

Plus can also be configured as an AUTO BRAKE RELEASE, controlled via the direction switches, NO BRAKE SWITCH NEEDED.

L 72mm x W 49mm x H 27mm.

I can do the upgraded for you , please contact me for a price.






Warranty Disclaimer : - Not covered by warranty :- Any electrical surge, spike or static discharge man made or from lightning. Breakage from turning an antenna or array to big for the capacity of the rotator. Not using the manufactures correct size control cable. From severe weather of any kind. Tower/mast collapse or failure of any kind. Dropping, abuse or misuse of any kind. Continually rotating unit beyond the manufactures duty cycle. Not servicing, checking or maintaining unit. Duoro Services shall not be liable for any incidental or consequential damage caused by the failure or otherwise of the above products.

........
