ELEVATION ROTATORS



ERC-51x series & AER-5



NEW Rotator sets available on request.

Kur02 page updated 27/06/2017).



Due to the fluctuation in exchange rates there are no prices listed.

All NEW rotators etc that I have in stock are listed on the rotator sales page.

Please contact me for a quotation on your requirements & up to date prices.

Over seas orders will be shipped direct from Create factory to save on import duties

, taxes into Australia, plus saving on freight costs.

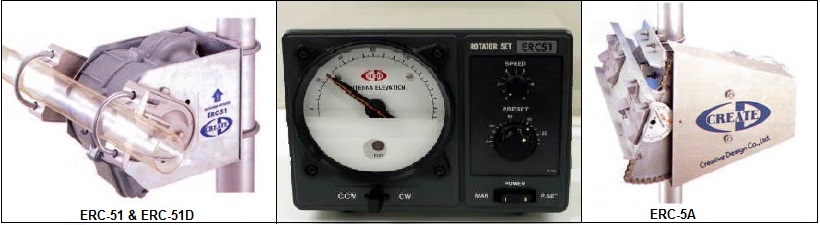

ERC-5x Series

erc-series.jpg - 61.08 Kb

ERC-51 & ERC-51D :- These 2 models of elevation rotators are designed for light weight to medium size Satellite or EME antenna systems. With easy U-bolt installation & cost effectiveness. Employing a worm drive system into two stage reduction gearing, driven by a high torque 28v AC motor for the ERC-51 model, where as the ERC-51D is driven via a 12v DC motor. They have low backlash with high rotation torque, powerfully braking without relying on any auxiliary brake system. With a total of 4 gears, two made from high tensile steel (running in a grease filled chamber) where as the other two gears are made from zinc alloy, all gears running on separate shaft. They come standard with Dial Pre-Set & Speed controls including computer interface.

ERC-5A :- This model elevation rotator is designed for large EME antenna or parabolic dish systems. Employing a worm drive system into two stage reduction gearing, driven by a high torque 28v AC motor. With high rotation & brake torque of the worm drive & reduction gearing via chain drive making it well suited to these large antennas. The four internal gears are made of high tensile steel (the first two gears run in a grease filled chamber & with all gears running on separate shafts) which then drives the anti-corrosion high tensile steel chains. Comes standard with Dial Pre-Set & Speed controls including computer control interface.



AER-5 Integrated Az & El Rotator Set

aer-5 controller.jpg - 34.91 Kb

aer5 rotator2.jpg - 23.78 Kb





















AER-5 :- Is an integrated Azimuth & Elevation Rotator Set.

Designed for light weight to medium size satellite or EME antenna systems. Both EL & AZ rotators employ a worm drive system into 2 stage reduction gearing, driven by a high torque 28v AC motor. They have low backlash with high torque, powerfully braking, without relying on any auxiliary brake system. With a total of four gears (in each rotator), of which two gears are made from high tensile steel running in a grease filled chamber & where as the other two gears are made from zinc alloy. Comes standard with the dual AZ/EL AER controller with Dial Pre-Set & Speed controls including computer interface.

The AER-5 mounts directly to the top of a tower or can be mounted on a pipe mast using the optional MC-2 Lower mast clamp assembly.



SPECIFICATIONS

INFO/MODEL ERC-51D ERC-51 ERC-5A AER-5
Rotation Torque (kg/m) 5 7 10 Az 6 / El 7
Brake torque (kg/m) 100 300 Az 90 / El 100
Rotation Angle (degrees) 120 max Az 380 / El 120
Mast size (mm) 48-62
Boom Size (mm) 40-60 55-77 40-60
Max. Antenna Weight (kg) 50 250 50
Horizontal Load (kg) 200 600 200
Rotation time EL (sec) 18-60 25-55 75-110 25-55
Rotation time AZ (sec) N/A 35-150
Reversal time (sec) 0 1/0
Pre-Set function N/A Provided
Pre-Set Accuracy N/A + - 3 degrees
PC tracker compatible Yes
Controller Input Voltage 12~15vDC Export model 115v & 230v AC
Power Rating AC (va) 90 150 Az 90/El 150
Power Rating @ 13v DC 4.0 amps N/A
Rotator voltage 5~12vDC 28v AC
Indicator Accuracy + - 4 degrees
Rotator weight (kg) 8.0 20.0 Az & El 12.0
Controller weight (Kg) 2.0 3.6 6.6
Control cable (cores) 5 7 2 x 7
Optional Accessories MC-2 lower mast clamp

Compiled & re-drawn by Peter Hastings of Duoro Services
