EMOTATOR :-  Current Rotators & Controllers

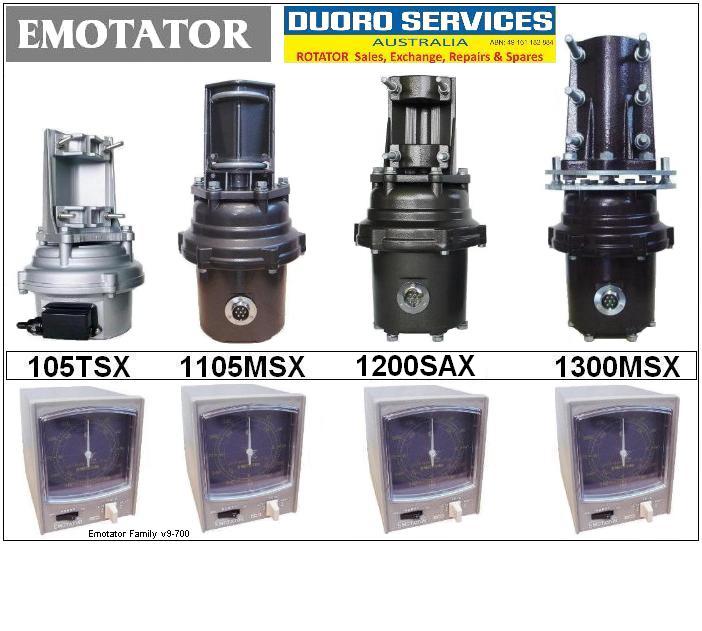

family v9-700.jpg - 82.27 Kb

NEW Emotator Rotator Sets (as pictured above) are how only available in Japan & use 100v AC to the rotator or have a 100v AC transformer. As for spare parts they are only supplying to the local Japanese dealers.



Kur02 page updated 02/05/2018.



CLICK to view NEW products from->  CREATE



All rotators that I have in stock are listed on the DUORO - Rotator Sales page.



CLICK FOR ALL SALES & TO CONTACT >

 DUORO SERVICES

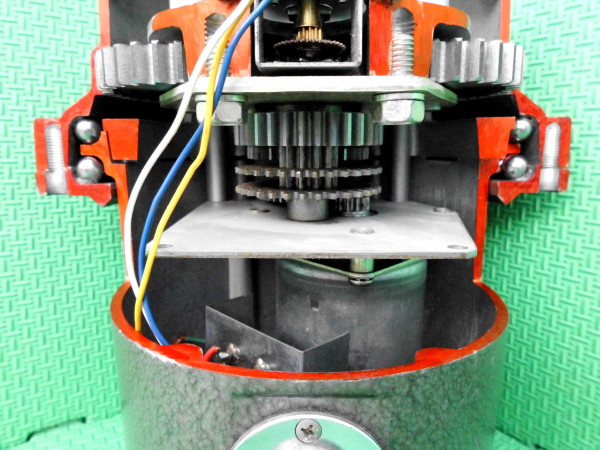

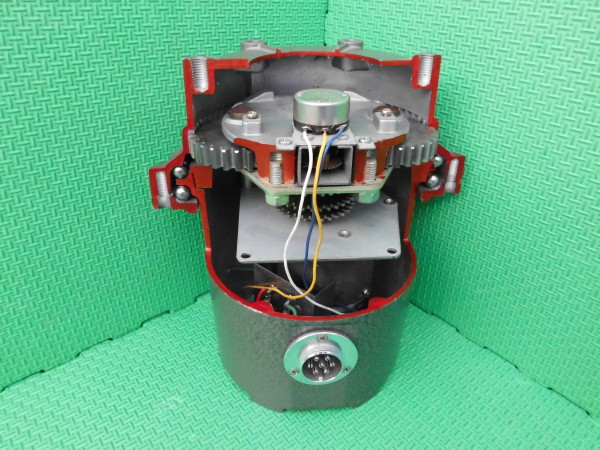

Below is a display cut away of a 1200 rotator showing the internals & gearing.





Specifications 105TSX 1105MSX 1200SAX 1300MSX
Antenna GD2    (Kgm2) 100 700 1000 1300
Wind Surface Area   (M Sq) 1.0 2.5 2.5 3.0
Rotation Torque  (Kg/m) 6.0 8.0 20 30.0
Brake Torque    (Kg/m) 30 100 180 250
Vertical Load Max.  (Kg) 300 400 800 800
Rotation Time (360 deg)  (Sec) 55 75 40 95
Controller Standard Yes Yes No Yes
Controller PreSet/Speed No No No No
Controller RS232 Remote No No Yes No
Rotator Voltage 24v DC 24v AC 24vDC 100v AC
Rotator Weight (Kg) 3.5 5.1 5.2 6.0
Control Cable 5 Conductor 6 Conductor 5 Conductor 6 Conductor
