RC5 Series & RC10s Rotators
NEW Azimuth Rotator sets available on request
|
KUR02 Page Updated 05/09/2023
Click For CREATE Rotator SPARES |
Click For CREATE Rotator Specs |
Due to the fluctuation in exchange rates there are no prices listed.
All NEW rotators etc that I have in stock are listed on the rotator sales page.
Please contact me for a quotation on your requirements & up to date prices.
All over seas orders will be shipped direct from Create factory to save on import duties
, taxes into Australia, plus saving on freight costs.
You will have to pay import duties & taxes etc when entering your country.
CLICK for SALES & to CONTACT Duoro Services |
All prices supplied will be in Australian Dollars (AUD).
DUORO SERVICES an authorised dealer & rotator services/repair centre for CREATE (Creative Design Corp.)
The Rotators:- The RC5 was designed for medium size antennas whilst the RC5A will handle large antennas & arrays. The RC5B is for extra large antenna systems & all are designed to be mounted with-in a tower or side mounting or track system with a mast bearing or two above them & also can be mounted to a pipe mast with the MC-2 lower mast clamp/flange adaptor.
All these rotators employ 60:1 worm gear drive (except RC5-1DC & RC5B-4/P they have 77:1 worm ratio) into 2 stage reduction gearing, giving a total of 1,800 : 1 gear ratio (RC5-1DC & RC5B-4/P have a ratio of 2,309 : 1), all driven by a high torque 28v AC motor (except RC5-1DC it uses a 12v DC motor), all able to rotate a full 380 degrees. They have low backlash with high rotation torque powerful braking without relying on any auxiliary brake mechanism. Gears are made of high tensile steel except the RC5-1, -3 & DC which uses some zinc alloy gears.
The Controllers:- The (-1,-2 & DC) are economy versions which comes standard with Dial Variable Speed control & momentary (hold on) direction switch..
Whist (-3 & -4) has Dial Pre-Set function & Dial Variable Speed control plus momentary (hold on) direction switch.
And finally (-3P & -4P) have Dial Pre-Set function, Dial Variable Speed control & Remote Computer Control .
All models have a full circle display & employ a single on-off-on manual paddle direction switch.
Now Available with a New Option:- 250mm flying control cable lead, to make fitting within towers easier, POA
Click for more info on the RC10S |
Model / Description | RC5-1DC | ..RC5-1.. |
RC5-3 RC5-3P |
RC5A-2 |
RC5A-3 RC5A-3P |
RC5B-3 RC5B-3P |
RC5B-4 RC5B-4P |
RC10S RC10SP |
Antenna Wind Area (m Sq) | 1.2 | 2.5 | 3.0 | |||||
Rotation Torque (Kg/m) | 5 | 6 | 16 | 22 | 25 | 30 | ||
Brake Torque (Kg/m) | 90 | 80 | 90 | 200 | 250 | 400 | ||
Worm Gear Ratio | 77:1 | 60:1 | 77:1 | 60:1 | ||||
Total Gear Ratio | 2,309:1 | 1,800:1 | 2,309:1 | 1,800:1 | ||||
Rotation Angle (degrees) | 380 | |||||||
Mast Size (mm) | 48 ~ 63 | 60~77 | ||||||
Mast Clamp Part Number | MC601 | MC621 | MC641 | |||||
Mast Clamp Material | Composite hi strength Alloy | Composite hi strength Alloy | Steel GAL | |||||
Mast Clamping Bolts | 4 | 6 | ||||||
Vertical Load (Kg) | 400 | 700 | 1,000 | |||||
Horizontal Load (Kg) | 800 | 1,000 | 1,500 | |||||
Dial Variable Speed Control | Provided on all models | |||||||
Speed Seconds 50Hz/360 deg. | N/A | 75 ~ 110 | 95 ~ 150 | 75 ~ 110 | ||||
Speed Seconds 60Hz/360 deg. | N/A | 60 ~ 95 | 80 ~ 125 | 60 ~ 95 | ||||
Speed Speeds DC / 360 deg. | 60 ~ 160 | N/A | ||||||
Reverse Delay Time (seconds) | 0 | 1 | 3 | |||||
Dial Pre-Set Function | N/A | N/A | Yes | N/A | Yes | |||
Pre-Set Accuracy | N/A | N/A | + - 8 deg | N/A | + - 8 degrees | |||
Remote Computer Connection | N/A | N/A | P model | N/A | P model | |||
Power Requirements AC | N/A | 90VA | 150VA | 200VA | 170VA | |||
Controller Input voltage | 12 ~ 15v DC | Export model 115v & 230v AC | 100v AC | |||||
Power Requirement @ 13DC | 4.0 Amps | N/A | ||||||
Indicator Accuracy | + - 3 deg | Less than + - 4 degrees | + - 3 deg | |||||
Controller weight (kg) | 2.0 | 3.6 | 2.0 | |||||
Rotator Weight (Kg) | 5.0 | 7.0 | 8.5 | 29.5 | ||||
Control Cable Requirements | 5 core | 7 core | ||||||
Optional Accessories | MC-2 Lower Mast Clamp Assembly | N/A | ||||||
Now available with NEW Option | a 250mm flying control cable lead for easier fitting within towers, POA. |

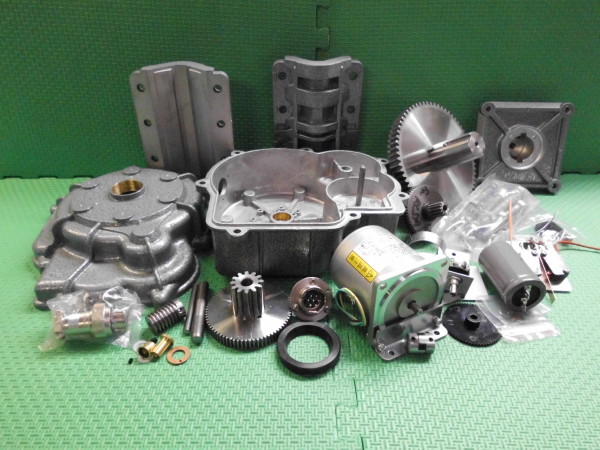

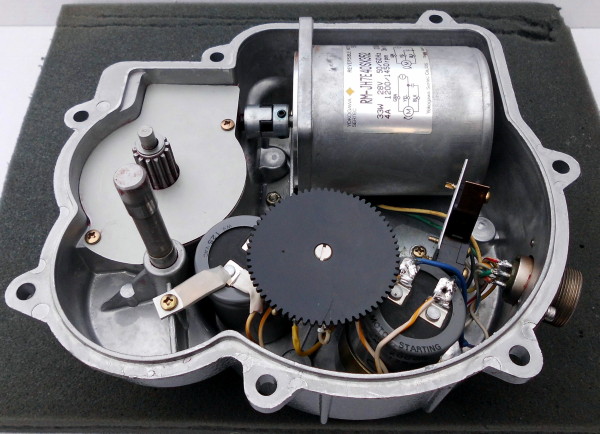

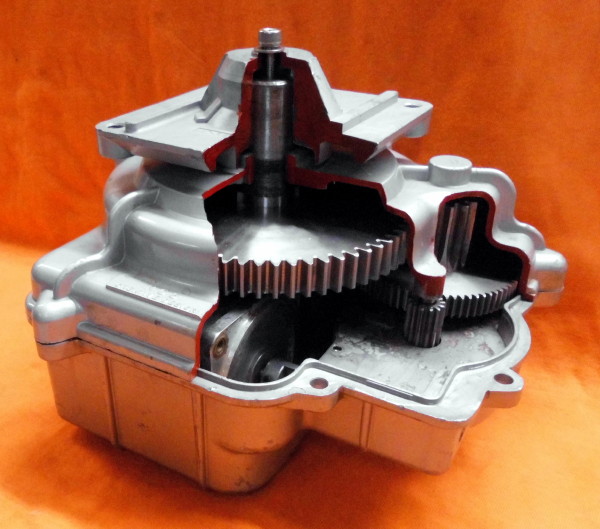

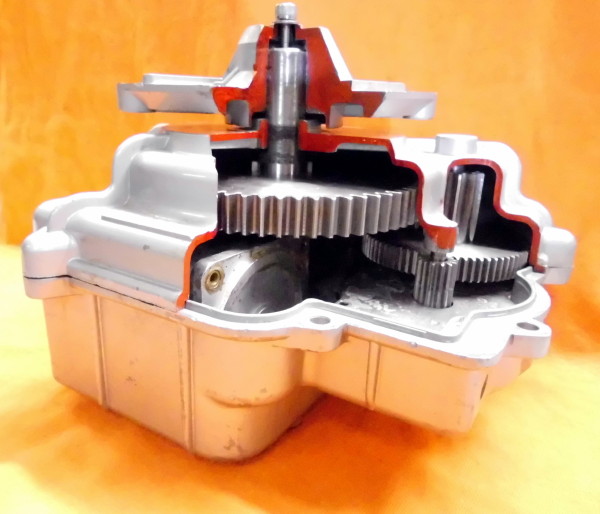

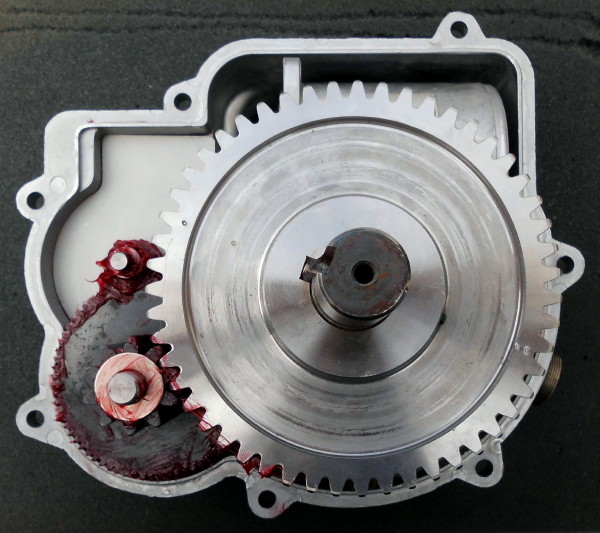

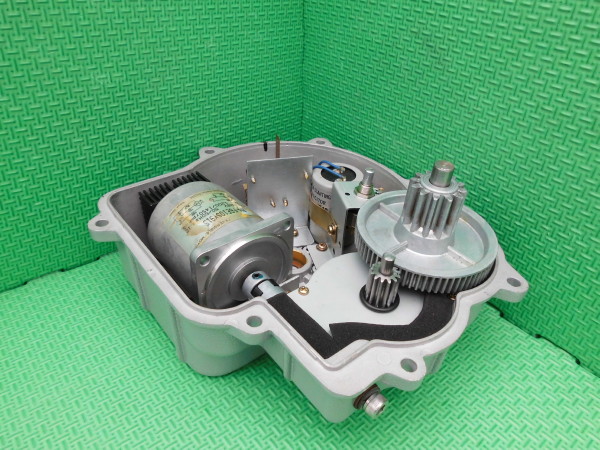

Below is a couple of pics of a display cut away version & 3 pics with the top housings & output flanges removed of a RC5 & RC5A + a pic of all parts inventory of a RC5A, Plus a YouTube video of the display cut-away rotator.
|
CLICK PIC to view in enlarged gallery form & click edge to move to next pic.
..........................................................................................................
