DUORO SERVICES Australia

CREATE AUTHORISED DEALER

Official sales, spare parts & rotator service centre



creative design corp4.bmp - 193.76 Kb

CREATE

SPARE PARTS etc.

The below set of 6 pics are just a pic gallery.

PLEASE SCROLL DOWN FOR A COMPLETE PARTS LIST.

Kur02 page updated 08/06/2021



CLICK below button for selected manufactures parts.

  CDE    COMMON   DAIWA   EMOTATOR   HYGAIN   KENPRO  YAESU

....

PayPal LogoPayPal Logo   Click for PURCHASING Details   PayPal LogoPayPal Logo



Buy now with PayPal

All prices are in Australian Dollars (AUD) & includes GST.



 Click For CREATE ROTATOR Specs & Info.



   Click for Rotator Comparison Tables



I ALSO SERVICE, REPAIR, REFURBISH & UPGRADE YOUR ROTATORS.



CLICK for SALES & to CONTACT Duoro Services





I Have Lots Of Spare Parts Available Not All Are Listed Below, Please Contact Me, I May Have What You Need In Stock Or Within A Rotator Or Controller For Spare Parts.





.STOCK AVAILABLE NEW, SECOND HAND & REFURBISHED SPARE PARTS & HARDWARE etc.

.Qty..

.New

.Qty..

2nd.H

..Qty

Refurb

 CREATE  CREATE $..AUD...
 Item/Part Number & Image  Description   each
          $



0

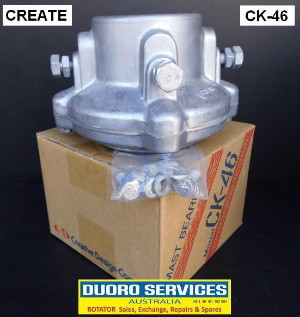

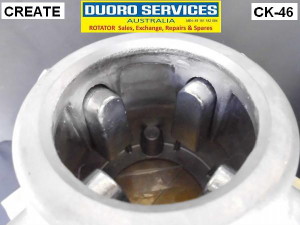

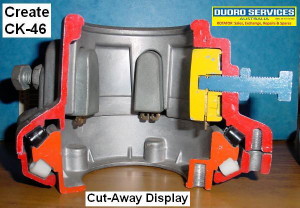

 CK-46



 NEW. MAST BEARING for above rotators.

 The CK-46 is a revolutionary new type of mast (thrust) bearing, that is a brake away from the standard notions of the past. Advanced engineering plastic technology for the bearings & magnesium alloy die-cast are used for the housings respectively, & also galvanized high tension bolts are used as the hardware, that assures high intensity & strength, anti-corrosion features of the mast bearing. The grasping method for the mast is chuck type (instead if bolts type) that adapts the same structures used in the lathe machine, enables a strong grasping force to the mast, that results in no bolt end damage to the mast, meaning aluminium mast can be used with the CK-46, with peace of mind.

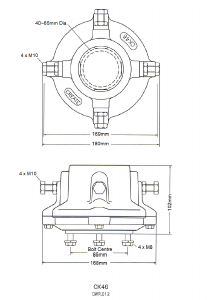

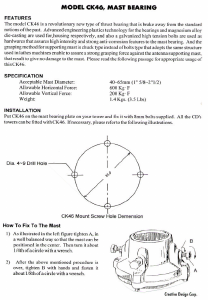

 CK-46 SPECIFICATIONS

 Mast diameter:-  40 ~ 65mm.

 Horizontal force:-  600 Kg.F.

 Vertical Force:-  200 Kg.F.

 Mounting:-  4 x M8 bolts.

 Weight:-  1.4 kg.

$ 00



    sold out

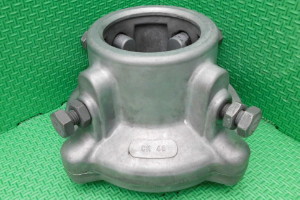

 CK-46-2nd



 REFURBISHED:- These Mast Bearings are used, but are in good condition.

 Completely striped down & cleaned etc then reassembled with new grease.

$ sold



1

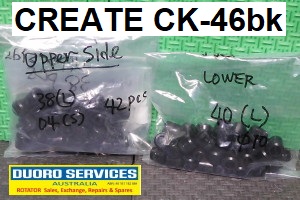

CK-46bk





 NEW. Replacement Bearing Kit to refurbish CK-46 Mast Bearing. Complete upper & lower cone bearing set.

$  69.00

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



1





 MC-2



 NEW. Lower Mast Clamp Assembly.

 Inc. adaptor plate & H/W for all RC5 model rotators/

$ 239.00
order

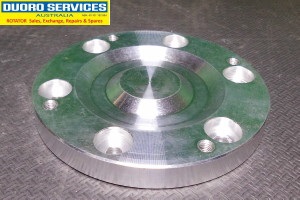

 MC-2AP



 NEW. Adaptor Plate only,

for lower mast clamp & can be used as a adaptor plate for some towers etc.

$ POA
order

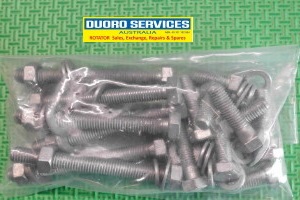

 MCB-S-123



 Mast Clamp Bolt Set

 For RC5-1 & 3 rotators.

$ POA
order

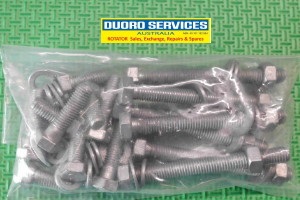

 MCB-S-123AB



 Mast Clamp Bolt Set.

 For RC5A & 5B rotators

$ POA

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



2

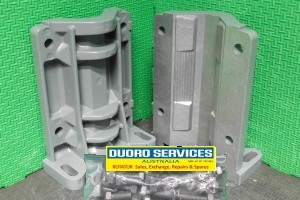

 MC-601



 NEW. Mast Clamp set

 For RC5-1 & 3 + DC rotators,  inc. hardware.

$ 100-ea
   Sold   out

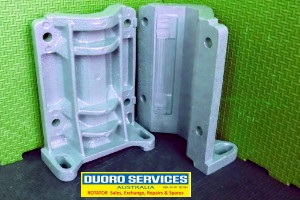

 MC-611



 2nd hand. Mast Clamp set

 For RC5A early version, 4 bolt clamping bolts, very heavy aluminium.

$  sold



2

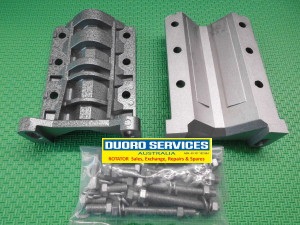

 MC-621



 NEW. Mast Clamp Set

 For RC5A & RC5B rotators, inc. hardware

$ 150-ea

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $   AUD



1





 01-TH

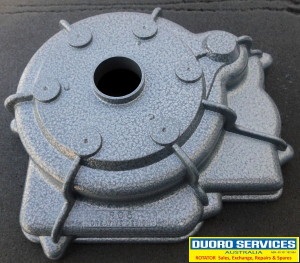

 NEW. Top Housing

 For RC5-1 & 3 + DC rotators, current model.

$ 150.00



1

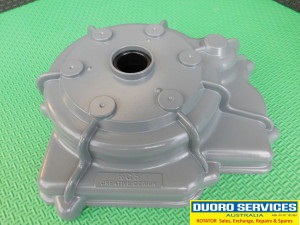

 01-THA



 NEW. Top Housing

 For RC5A-2 & 3 rotators, current model.

$ 160.00
order

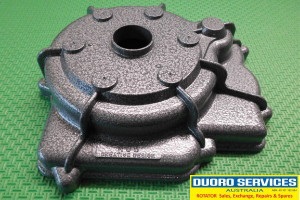

 01-THB



 NEW. Top Housing

 For RC5B-3 & 4 rotators, current model.

$ POA

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



1





 02-BH



 NEW. Bottom Housing

 For RC5-1 & 3 + DC rotators, current model.

$ 150.00



1

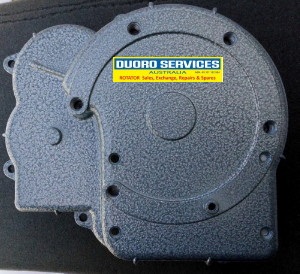

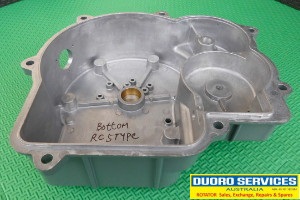

 02-BHA



 NEW.  Bottom Housing

 For RC5A-2 & 3 rotators, current model.

$ 160.00
order

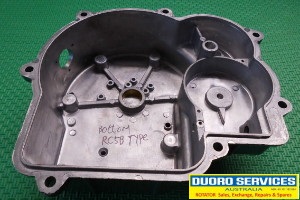

 02-BH-B



 NEW. Bottom Housing.

 For RC5B-3 & 4 rotators, current model.

$ POA

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $   AUD



2





 03-MC61



 NEW. MC-61 Output Flange.

 For RC5-1 & 3 + DC, current models, 25mm shaft.

$   52.00



1

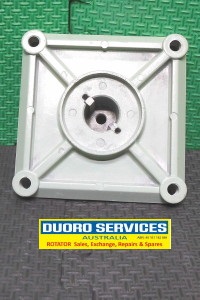

03-MC61e



 NOS. MC-61 Output Flange.

 For RC5-1 & 3 early versions, pre 1994 models.

$  50.00




1



03-MC61r



 REFURBUISHED. MC-61 Output Flange.

 For current version RC5-1 & 3 + DC current models.

$  30.00



2

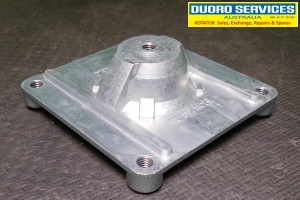

 03-MC62



 NEW. MC-62 Output Flange.

 For RC5A current model rotators with 30mm shaft, 2 x key ways.

$ 109.00



1

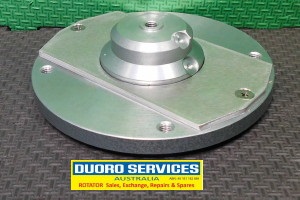

 03-MC63







 NEW. MC-63 Output Flange.

 For RC5B current version rotators with 30mm shaft & 2 x key ways.

Dia. 148mm x 45mm (total) height & weight is 1.72kg.

Note:- Original version rotators have a 25mm shaft with only one key way. MC-63 is no longer available for early version rotators with a 25mm shaft.

$ 460.00

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



34

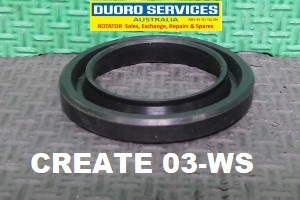

 03-WS



 NEW. Weather Seal

 For output flange & top housing all models

$   4-ea
order



 04-HHS



 7 x Hex Headed Screw.

 For housings (GAL)

$ POA



13

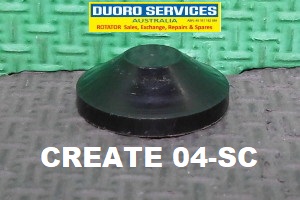

 04-SC





 NEW. Screw Cover.

 For output flange fixing bolt.

$   3-ea

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



4

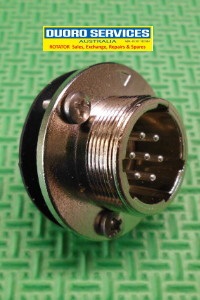

 05-CS



 NEW. Chassis Socket

 Connector 7-25j, for rotato.r

$  30-ea



5

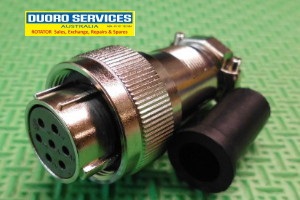

 05-P1



 NEW7 Pin F/M plug (7-25).

 for rotator end of control cable.

$  59-ea




1



 05-CS-sh



 2nd hand chassis socket.

 Connector 7-25j,

 for rotator, in good condition.

$  15-ea



18

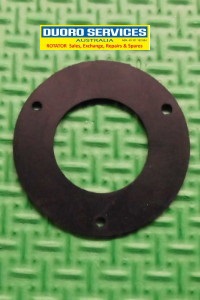

 05-WS



 NEW. Weather Seal.

 For chassis socket 7-25j

$    4-ea



8

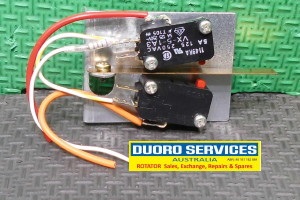

 06-LSA





 NEW. Limit Switch Assembly

 S3 & S4, includes wiring etc

$  30-ea





  2

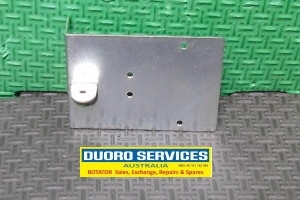

 06-LSB



 Refurbished. Mounting Bracket.

 For limit switches (Re-Zinc Plated)

$   3-ea




1

 06-LSAr



 Refurbished. Limit switch assembly.

 Re-zinc plated L bracket & new micro switches

$  15-ea




Sold out

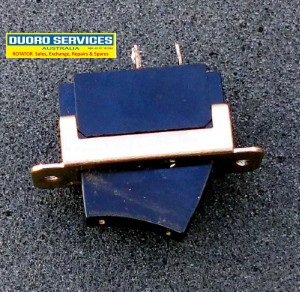

 06-PS-sh



 2nd Hand Power Switch.

 For RC5-1 controllers

 (BLA-53).

$ sold

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



3

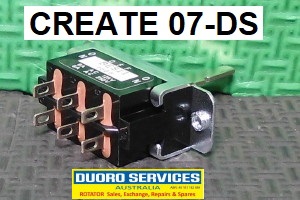

07-DS



 NEW. Direction Switch

 for controller 6 pin DPDT Centre off

 (current version BES-11) NON locking

$  25.00



2

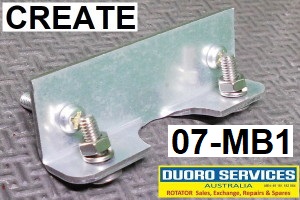

 07-MB1



 NEW. Motor Bracket

 For RC5 rotators.

 inc hardware.

$  12-ea



4





07-MB2



 NEW. Motor Bracket

 For RC5A & B rotators.

 inc hardware.

$  12-ea



1

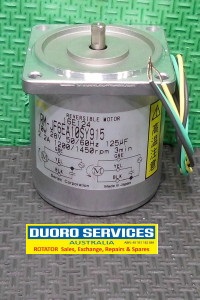

 07-M5





 NEW. Motor.

 For RC5 rotators, 28v AC.

 (F6E10S).

$ 280.00



1

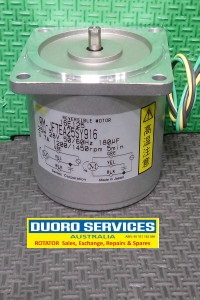

 07-M5A



 NEW. Motor.

 For RC5A rotators, 28v AC.

 (F7E25S).

$ 360.00



order

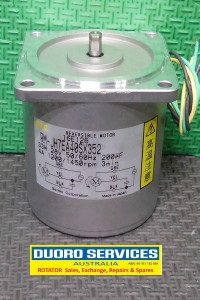

 07-M5B



 NEW. Motor.

 For RC5B rotators, 28v AC.

 (JH7ES40S).

$  POA



5

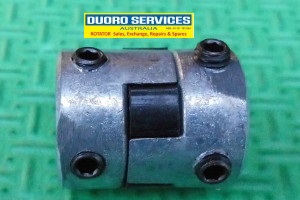

 08-CA



 NEW. Coupling Assembly.

 For motor to worm gear shaft, all model rotators.

$   15-ea



11

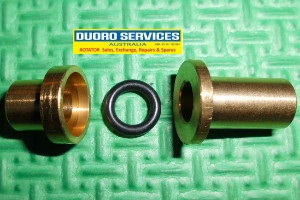

09-BBS



 New. Brass Bush Set,

 includes 'O' ring for worm gear all model rotators.

$ 12-set



100

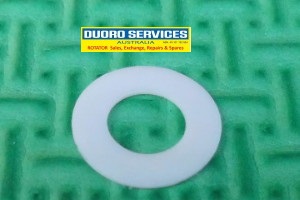

 09-TW



 NEW. Teflon Washer

 for worm gear

$     1-ea



4

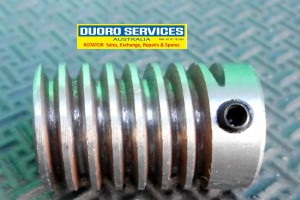

 09-WG



 NEW. Worm Gear.

 All model rotators.

 (SW 1-R1).

$   85-ea



11

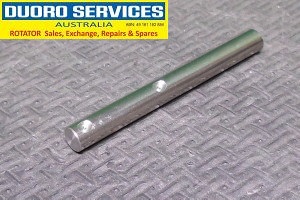

 09-WGS



 NEW. Worm Gear Shaft.

 All model rotators.

 (D6x57)

$     8-ea

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image

 Description $  AUD



5

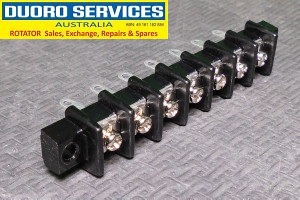

 10-TB



 NEW. Terminal Block

 for controller.

$   14-ea



3





 11-WW



 NEW. Worm Wheel.

 For RC5-1 & 3 rotators.

 (CG 1-60R1-M)

$ 112-ea



1

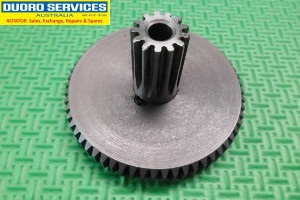

 11-WWA



 NEW. Worm Wheel

 For RC5A rotators.

 (CG 1-60R1-M).

$  140.00



2





11-WWB





 NEW. Worm Wheel.

 For RC5B rotator.

 (CG 1-60R1-M).

$ 145.00



11

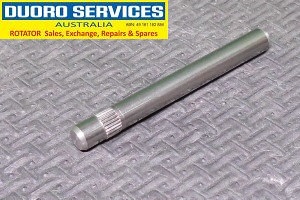

 11-WWS



 NEW. Worm Wheel Shaft.

 all RC5 model rotators.

$    7-ea



8

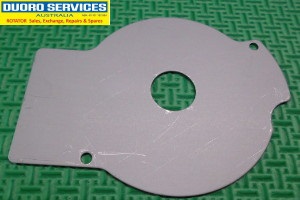

 12-WC



 NEW. Worm Cover.

 Cover Plate for worm gear/wheel chamber

$    4-ea

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $   AUD



17

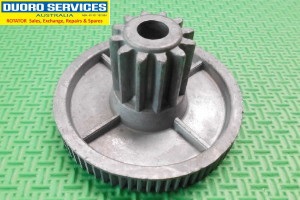

 13-DG



 NEW. Drive Gear,

 For RC5-1/3 & DC rotators. Aluminium.

 (Mo 2.0-12T/Mo 1.0-72T).

$ 55.00



2





 13-DGA



 NEW. Drive Gear,

 For RC5A rotators. Steel.

 (Mo 2.0-12T/Mo 1.0-72T).

$ 160-ea



1

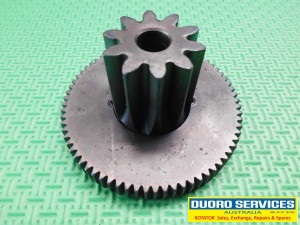

 13-DGB



 NEW. Drive Gear,

 For RC5B. current model rotators. Steel.

 (Mo 2.0-12T/Mo 1.0-72T).

$ 190.00



5





 13-DGBe



 NEW. Drive Gear,

 For RC5B Early version

 Pre 1994 model rotators. Steel.

 (Mo 2.5-10T/Mo 1.0-72T).

$  90-ea



4

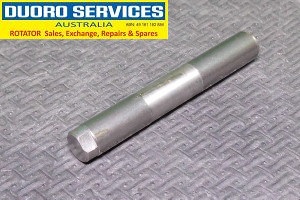

 13-DGS



 NEW. Drive Gear Shaft.

 For drive gear all model rotators.

 (D-cut, S45C, D10x68).

$    12-ea

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD

5

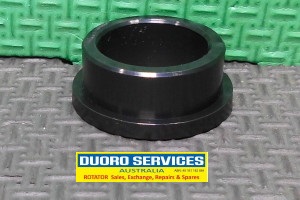

14-OPB



 NEW. Output Shaft Plastic Adaptor Bush.

 for RC5-1 & 3 etc current model rotators.

$    3-ea



2

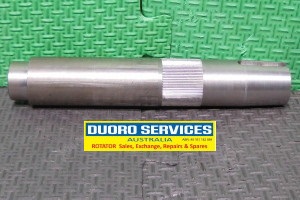

 14-OS



 NEW. Output Shaft.

 For current version RC5-1 & 3 + DC rotators

$ 140-ea

1





14-OSe



 NEW. Output Shaft.

 For early version RC5-1 & 3 rotators (pre 1994).

$   90.00



2

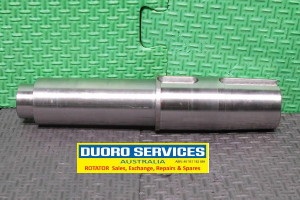

 14-OSAB



 NEW. Output Shaft.

 For current version RC5A & B rotators

$ 185-ea



2

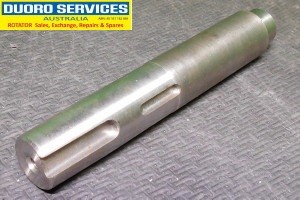

 14-OSAe



 NOS. Output Shaft early series.

 RC5A & B rotators, pre 1994

 25mm shaft with single key way for output flange.

$  90-ea



order





 14-OSG



 Output Shaft & Final Gear assembly.

 For RC5-1 & DC rotators, current models.

$  POA

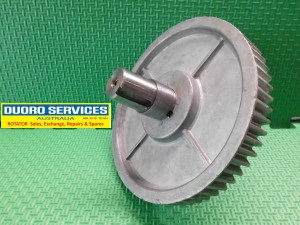

order





 14-OSG-A





 Output Shaft & Final Gear assembly

 For RC5A & B rotators, current models

$  POA



12

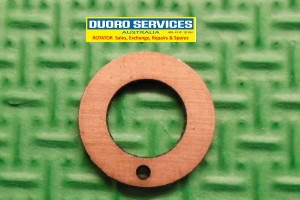

 14-TW



 NEW. Thrust Washer.

 Washer under Output Shaft of rotator.

 (70w - 1018)

$    8-ea



10





 14-TWe



 NEW. Thrust Washer.

 Washer under Output Shaft of early version rotators.

 (D20-10-1.5t)

$   8-ea

NEW

Qty

2nd H

Qty

Refurb

Qty


 Item/Part Number & Image  Description  $   AUD



3

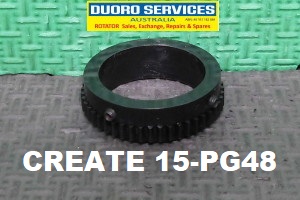

 15-PG48





 NEW.  Plastic Gear 48 tooth.

 For POT drive gear on Output Shaft of RC5A & RC5B.

 Mo 0.75-48T (meaning:- Gear Module 0.75 x 48 tooth)

 NOTE:- This gear is for current versions of rotators with a 27mm Output   Shaft size where this gear go onto. (Early versions only have a 25mm Output   Shaft size).

$  12-ea



4

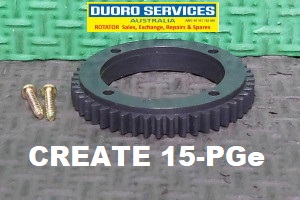

 15-PGe





 NOS. Plastic Gear Early.

 For POT drive gear on Output Shaft of early RC5A & RC5B rotators

 48 Tooth.

 Mo 0.75-48T (meaning:- Gear Module 0.75 x 48 tooth)

 NOTE:- This gear is for early (pre 1994) version rotators with a 25mm   Output Shaft size where this gear go onto. inc. screws

$  12-ea



21

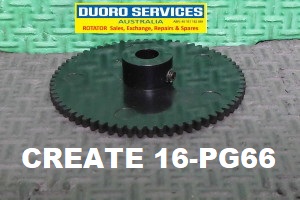

 16-PG66



 NEW. POT Gear 66 tooth.

 For ROTATOR POT.

 Mo 0.75-66T (meaning:- Gear Module 0.75 x 66 tooth).

 all current models (NEW) with a 6mm POT shaft size.

$    9-ea











NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $   AUD



4

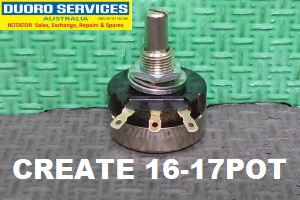

 16-POT



 NEW. VR11 Controller 5k (POT)

 Potentiometer 6mm dia.  Shaft.

 NOTE:- Check the shaft dia. before ordering you may have to replace 19- PG40 as well. As some early version POT's have a 6.25mm (1/4") diameter   shaft

$  40-ea



3





 17-POT



 NEW. VR 30 Rotator 5k (POT)

 Potentiometer current version. 6mm dia. Shaft

 NOTE:- If you are replacing an early version POT, you will need to change the POT GEAR 16-PG66 as well. As some early version POT's have a 6.25mm (1/4") diameter shaft.

$  40-ea



4

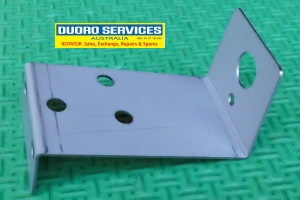

 17-MB



 NEW. MOUNTING BRACKET

 Z mounting bracket for POT & Caps in rotator

$    4-ea



6

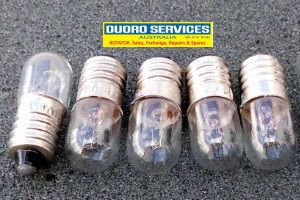

 17-18b12



 12 volt globes

 replacement for meter illumination

$ 2.50ea



1





 17-18b18



 18 volt replacement globes

 for early version controllers

$ 1.00ea

NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



5

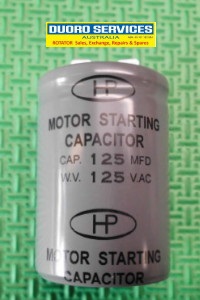

 18-C5

 NEW. Motor Start Capacitor.

 (C15) 125uF for RC5-1 & 3 rotators.

$  50-ea



3

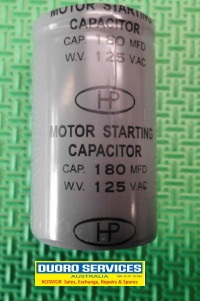

 18-CA



 NEW. Motor Start Capacitor.

 (C15) 180uF for RC5A rotators.

$  54-ea



1 set

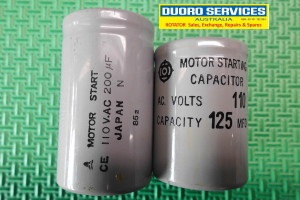

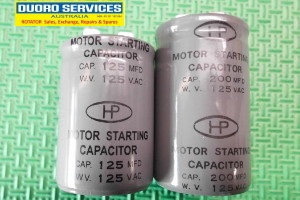

 18-CB

 NEW. Motor Start Capacitors

 (C15) 1 x 125uF & 1 x 200uF for RC5B rotators.

 (sold as a set of 2)

$ 109.00




Sold out





 18-MSC-Bsh



 2nd hand Motor Start Caps.

 (C15) for RC5B  (Tested OK).

$ sold



10



 18-CC



 NEW. CAP Clamp.

 Capacitor mounting clamp.

$   8-ea

NEW

Qty

2nd H

Qty

Refurb

Qty

 tem/Part Number & Image

 Description $  AUD



28

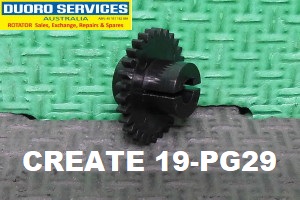

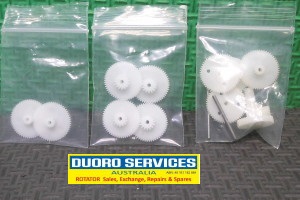

 19-PG29





 NEW. Plastic Gear 29 Tooth

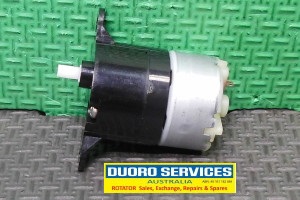

 Gear on servo motor in CONTROLLER DISPLAY. .

 Mo 0.75-29T (meaning:- Gear Module 0.75 x 29 tooth)

 NOTE:- This gear is for current version controllers which have a 3.8mm hole   for the servo motor shaft. On early models controllers the motor shaft   size is 3.0mm & you will have to make up a sleeve/bush for the gear to fix   properly.

$   6-ea



21

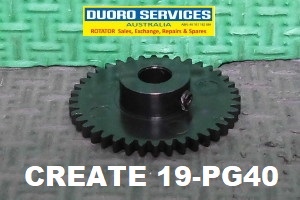

 19-PG40





 NEW. POT Gear 40 tooth

 on POT in controller display.

 Mo 0.75-40T (meaning:- Gear Module 0.75 x 40 tooth)

 NOTE:- This gear is for current model controllers with a 6mm shaft size on   the POT.

 Some early versions had 6.35mm(1/4") shafts on the POT.



$   9-ea
3



 19-SM





 NEW. Servo Motor

 For controller display.

 NOTE:- This Servo Motor is for current version controllers which have   a 3.8mm shaft servo motor. On early models controllers the servo   motor shaft size is 3.0mm.

$  75-ea
Assy.



 19-SG



 NEW. Gears for Servo Gearbox.

 Assorted gears in the drive train of the gear box, plus shafts.

 POA


NEW

Qty

2nd H

Qty

Refurb

Qty

 Item/Part Number & Image  Description $  AUD



24





 PCB-Q1

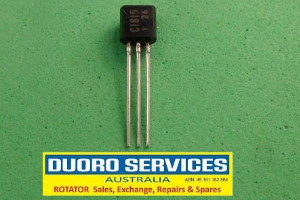

 NEW. Q1 Transistor 2SC1815

 For all RC5 model controller PCB's.

$    1-ea



23





 PCB-Q2



 NEW. Q2 Transistor 2SA1015

 For all RC5 model controller PCB's.

$    1-ea



3





 PCB-Q6

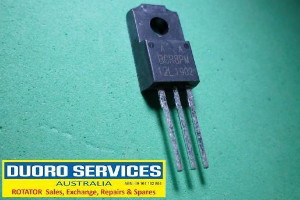

 NEW. Q6 Traic BCR8PM-12LA

 For current RC5 model controllers

$    5-ea



9





 PCB-U1&2

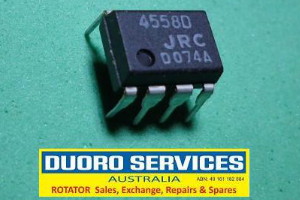

 NEW. U1 & 2 IC 4558D

 For all RC5 model controller PCB's.

$    2-ea
    Sold out



 TC7p1.2m

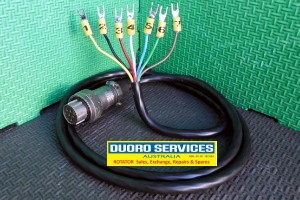

 Test & set-up cable

 1.2m long with refurbished P1 plug, new fork terminals & numbered labels. I   can make up this item for you using a new plug POA.

$ sold




DUORO Services

Installation & sales of communications equipment for

CB - Commercial - Amateur & Marine from the following suppliers.

Laser Antenna GME R F Industries

Phone

Australia 0427 043 054

International +61 427 043 054
