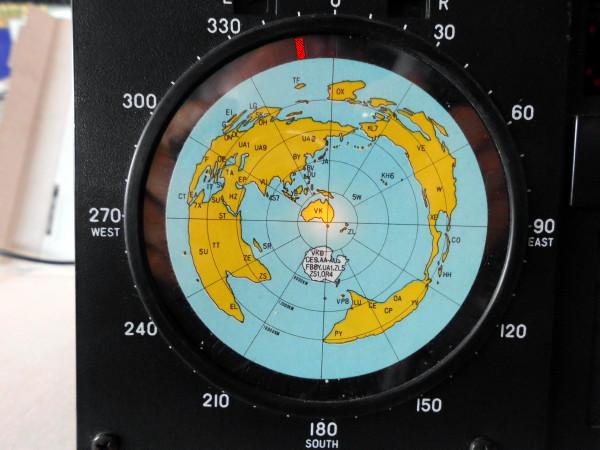

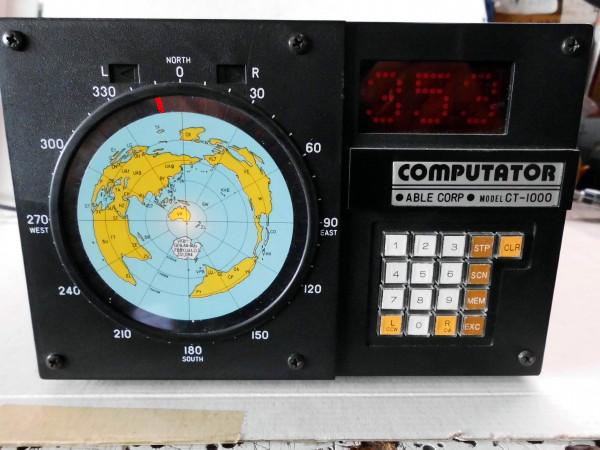

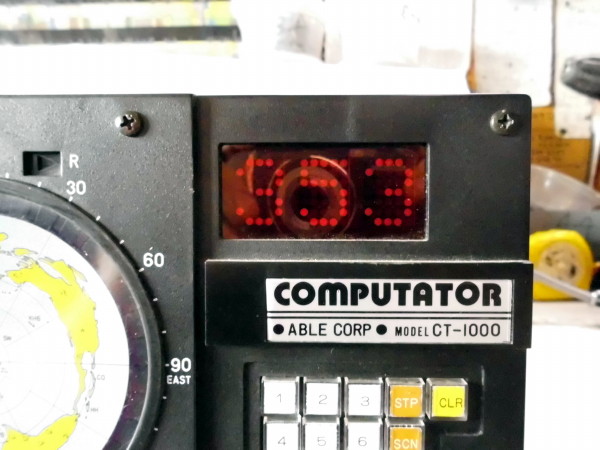

(TS) COMPUTATOR CT-1000 Repair, Service & Upgrade.

...........................................

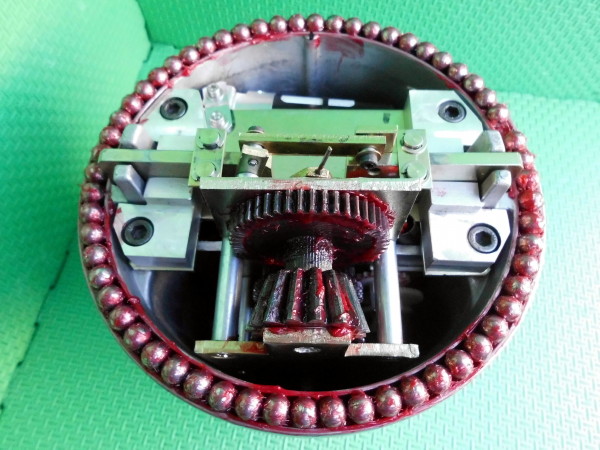

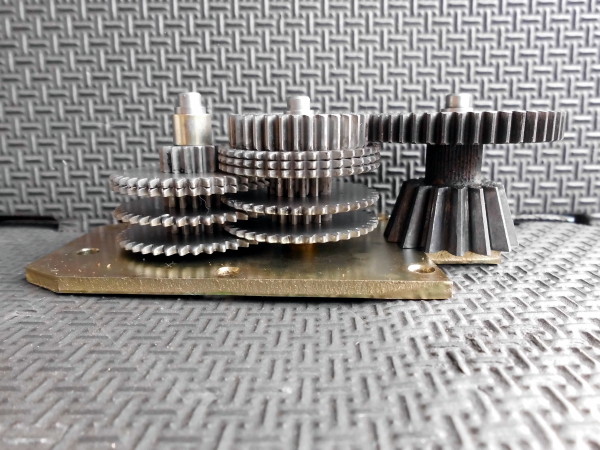

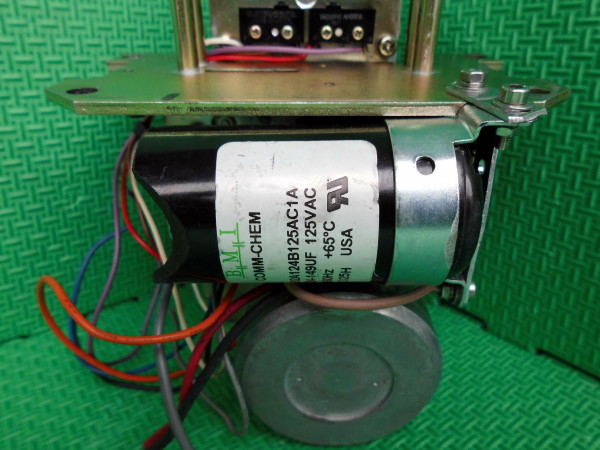

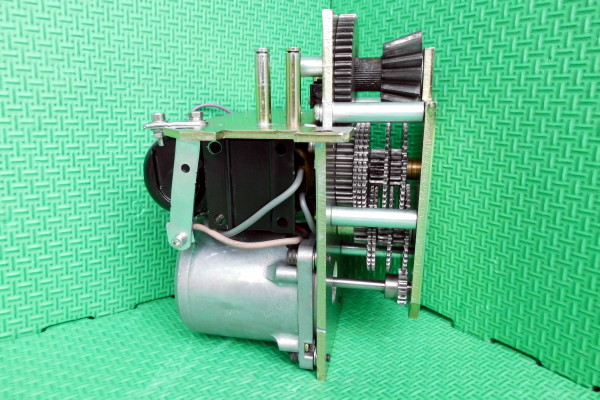

This Rotator was sent to me for service & repair etc, a interesting design in the fact that the motor is laying on it's side (like worm drive rotators) but all the gearing are on there edge (vertical) with a bevel final drive gear at the top driving the top housing + twin brake wedges activated by solenoid which locks into the top housing as well.

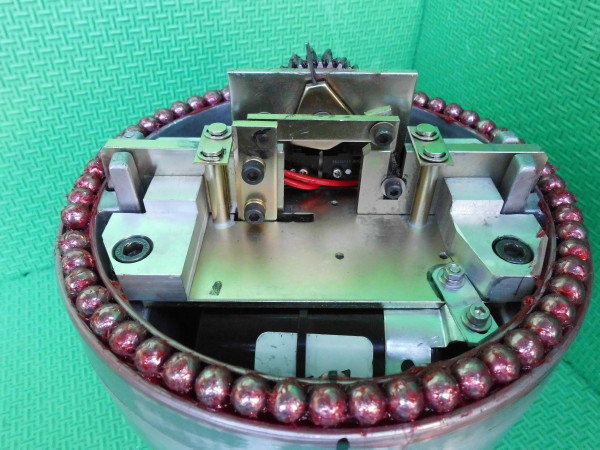

Full stripped down to the last nut bolt & removed a ton of excess grease. Bearing will have to be replaced.

When I finally got rid of all the grease I found a broken guide post for the wedge & a POT not working

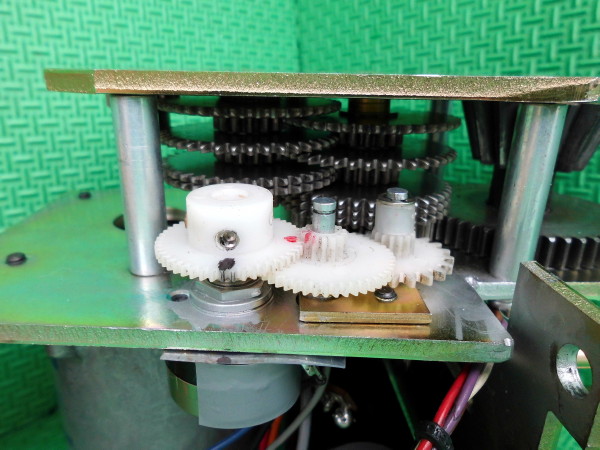

Repair broken brake wedge guide post (drilled & tapped). Replace broken POT with a standard 500 ohm Kenpro POT & mod POT drive gears(as the replacement POT has a standard length shaft), the two drive gears have been shortened & shimmed to allow the POT gear to fit on (POT gear was re-drilled & tapped for 2 new grub screws). POT mounting hole had to be lengthened & the location pin hole  was drilled out to give some adjustment, because the a gear was hitting the shaft of the POT (this includes the original POT).

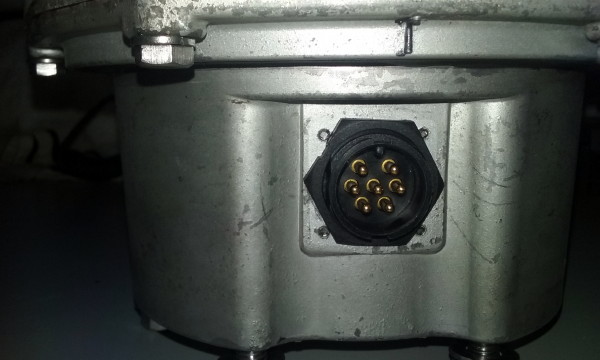

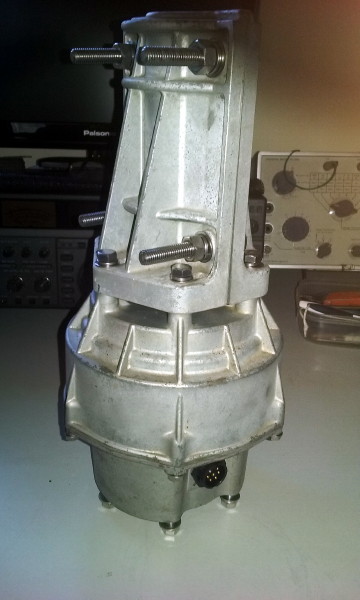

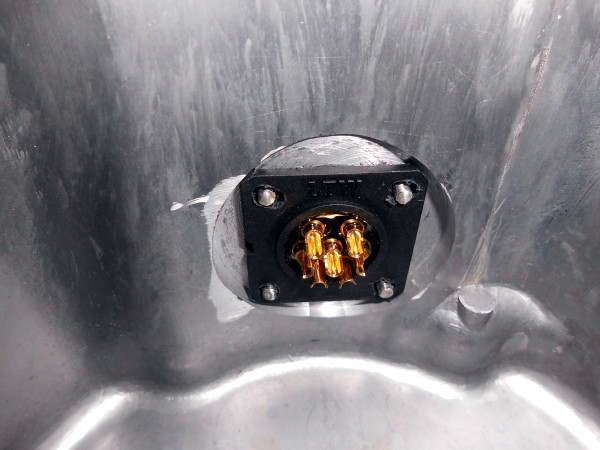

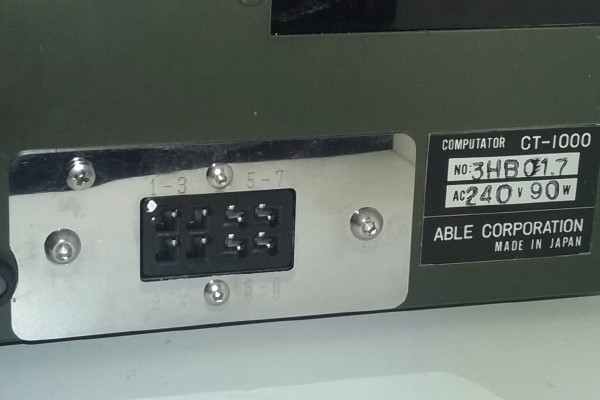

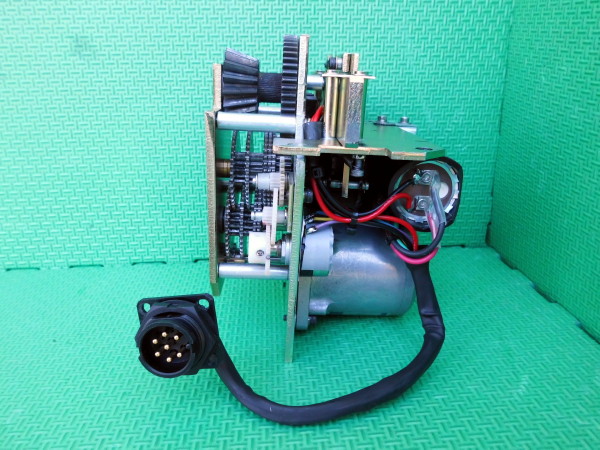

Upgrades:- Moved motor capacitor from the controller to the rotator saving 2 wires. Replaced 10 pin plug/socket on rotator with 7 pin IP67 socket/plug & had the inside edge of the socket hole milled to fit the new socket, This mod means you don't have to unsolder wires from socket to remove the motor/gear box assembly for servicing, bench tests etc, just unscrew the outer nut. Also upgraded the controller 10 pin socket/plug & replaced them with a 8 pin Cinch plug/socket & laser cut & etched mirror stainless steel cover plate. Rewired both units, reassembled, aligned & calibrated. (TS)

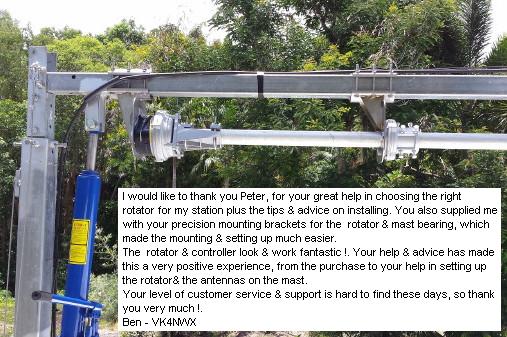

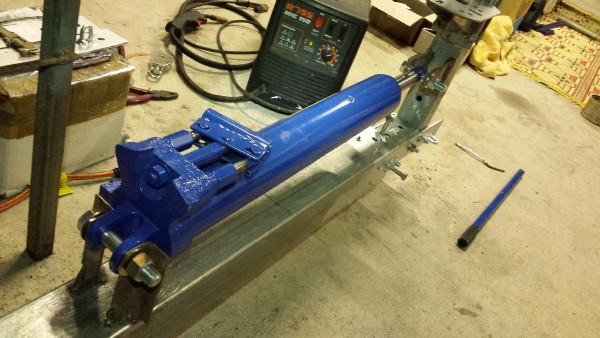

(BF) NEW WINCH-UP TOP LAY-OVER TOWER - Supplied rotator set & 3 all  stainless steel side mount brackets.

..............................................................................................................

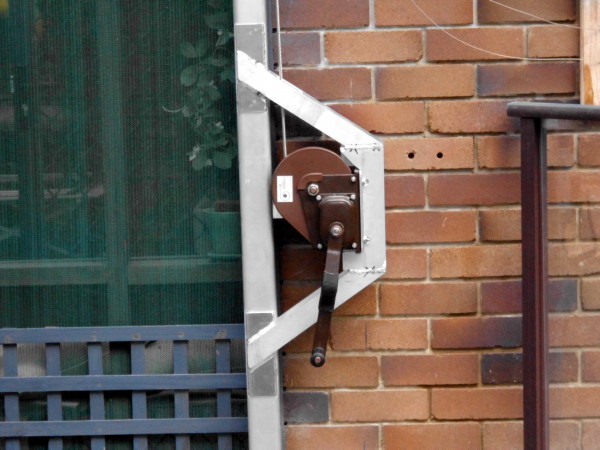

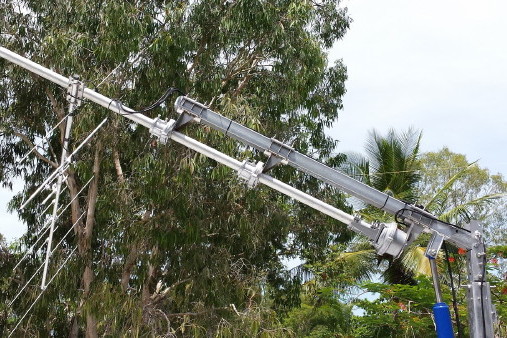

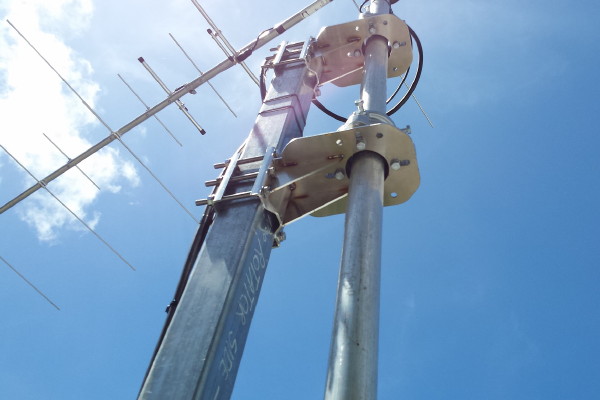

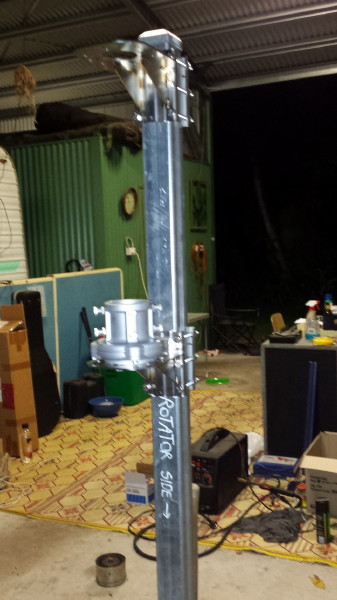

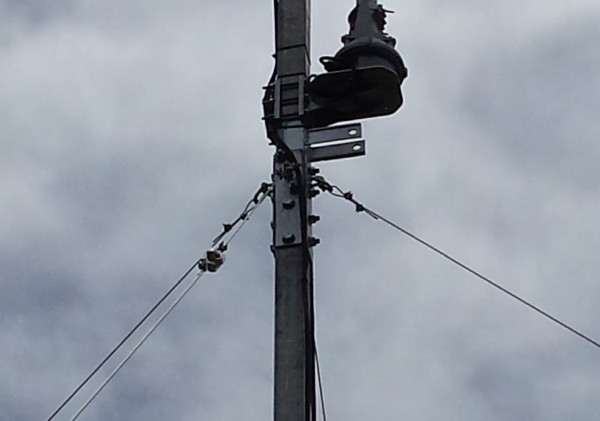

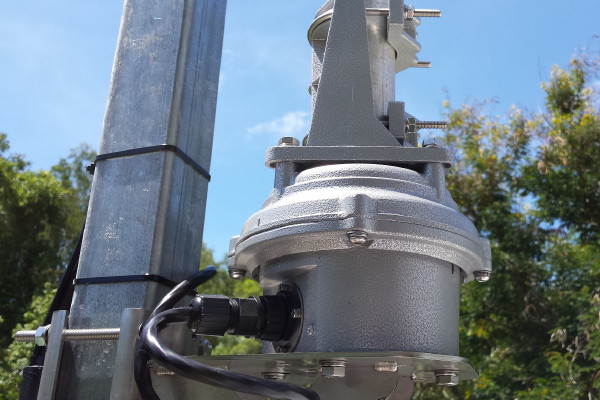

Supplied a rebuilt, upgraded Emotator 105TSX rotator set & three new all stainless steel side mounting brackets (1 x SMB65ssR & 2 x SMB64 ssB prototype bearing mounts). Using two mast bearing mounts on side mount brackets (SMB64ssB) means he can remove the rotator for servicing etc without disassembling the antenna system. Plus using two bearing means there is no side or vertical loading onto the rotator at all, this gives maximum protection to the rotator & a longer working life. Tower design & fabrication by customer (BF)

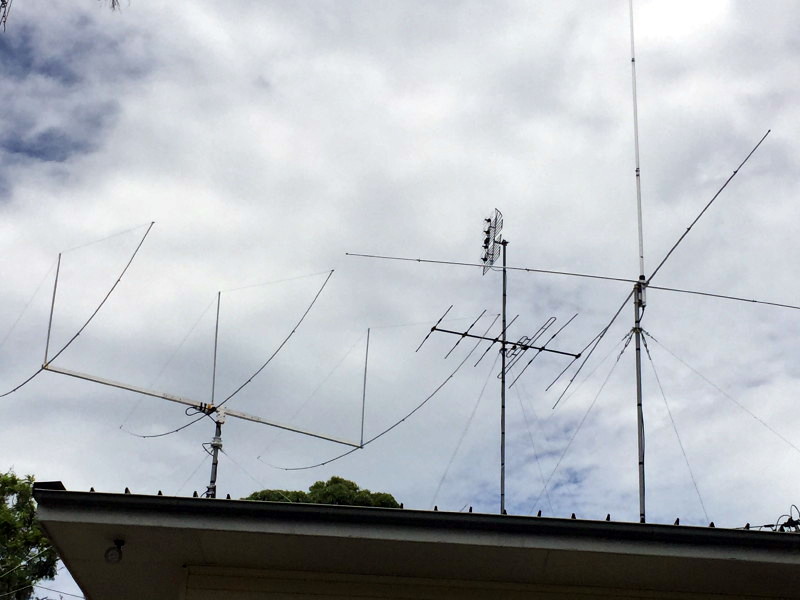

(DB) NEW ANTENNA SYSTEM :- Supplied Antennas.

............................................................................................

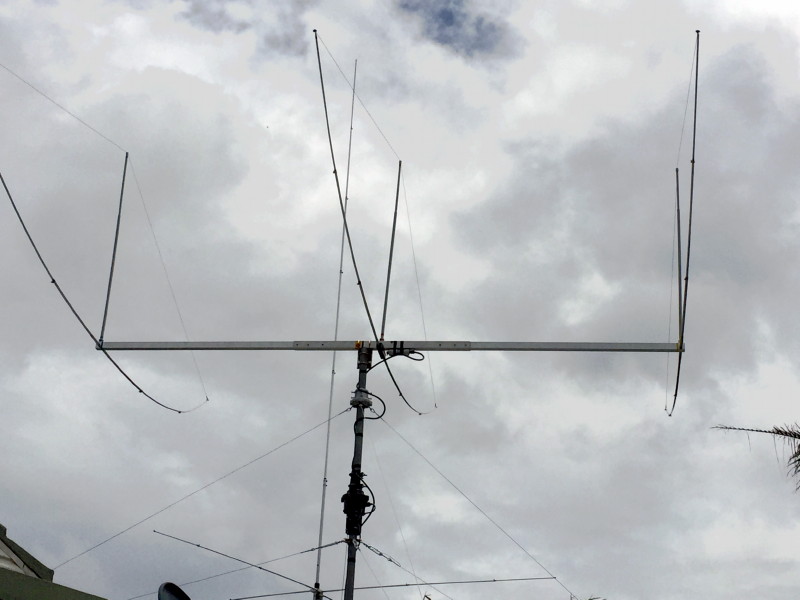

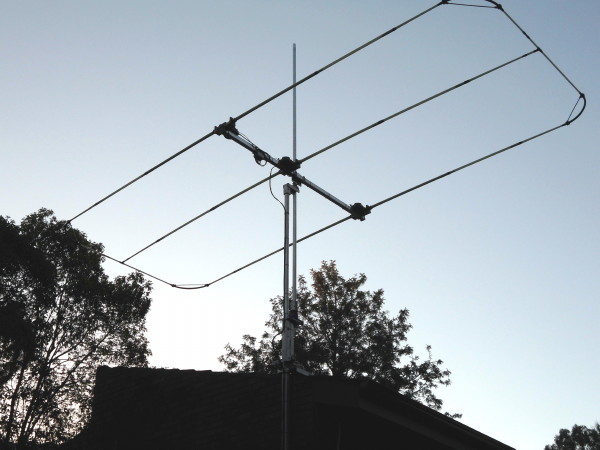

Supplied a NEW VR27 5/8 wave vertical antenna & a DQ11m3e 3 Element Diamond Quad. (DB)

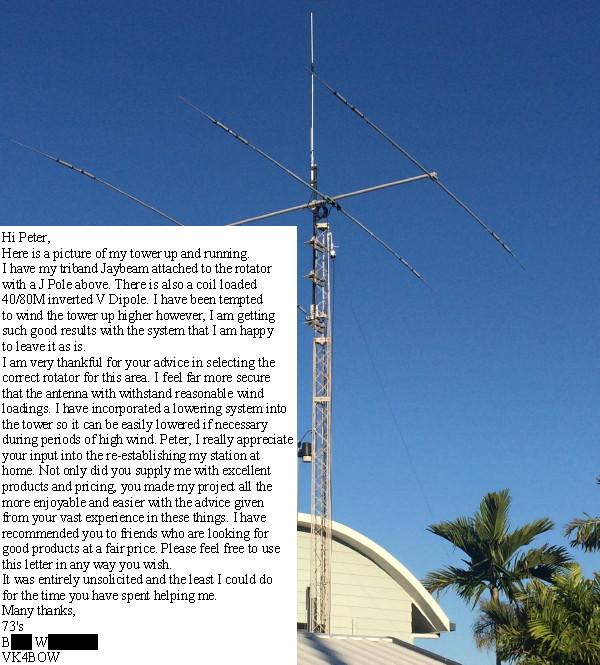

(BW) NEW STATION. Supplied Rotator, Bearings & Tower Mod Idea.

..............................................................................................

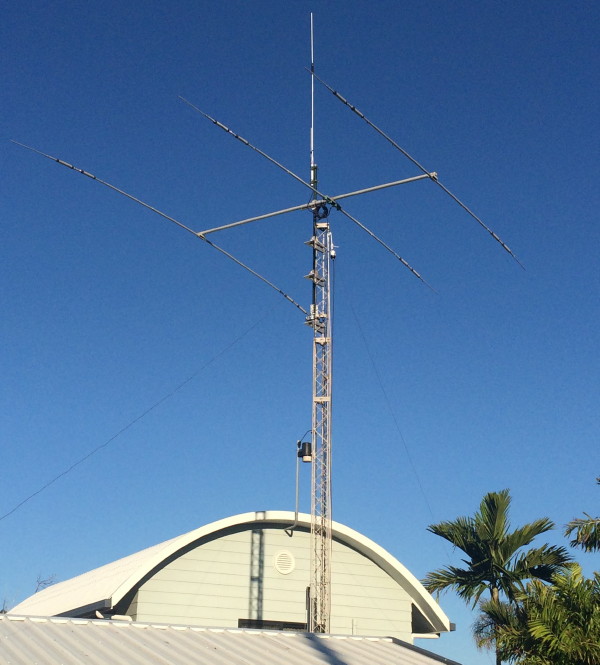

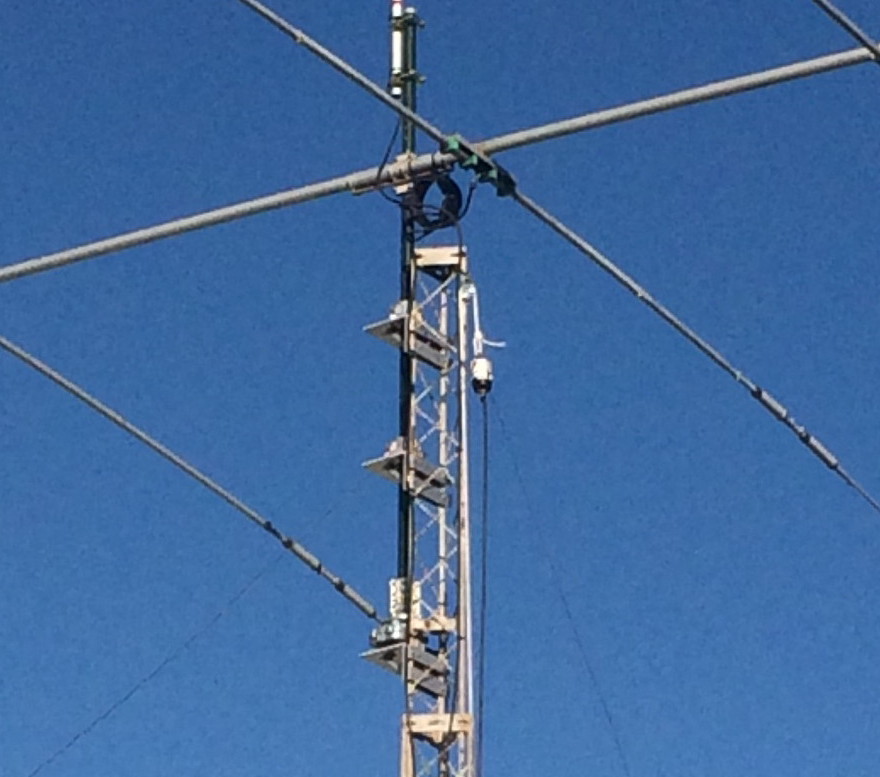

Supplied a CREATE RC5A-B Hybrid rotator I built + 2 x CREATE CK-46 mast thrust bearings & supplied info for the side mount tower mods. All tower mods done by customer. (BW)

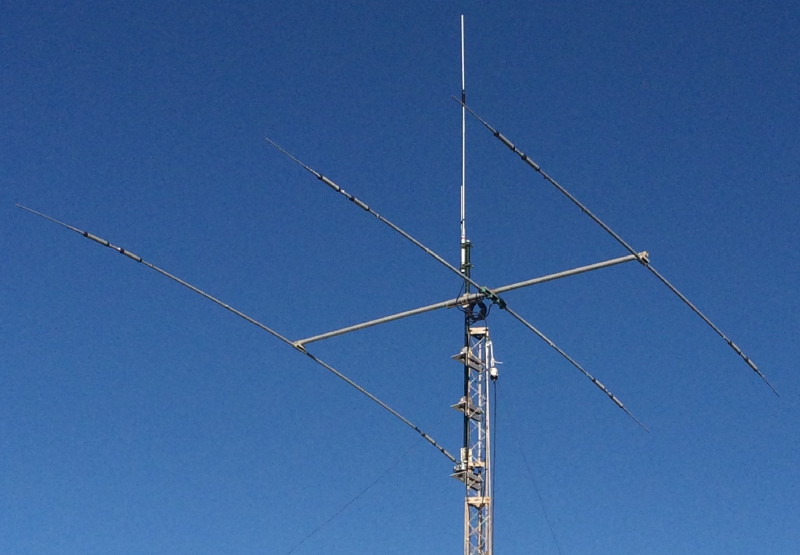

(WM) Duoro HY11m5e GTM Yagi & Tower Mods.

...............................................................................................

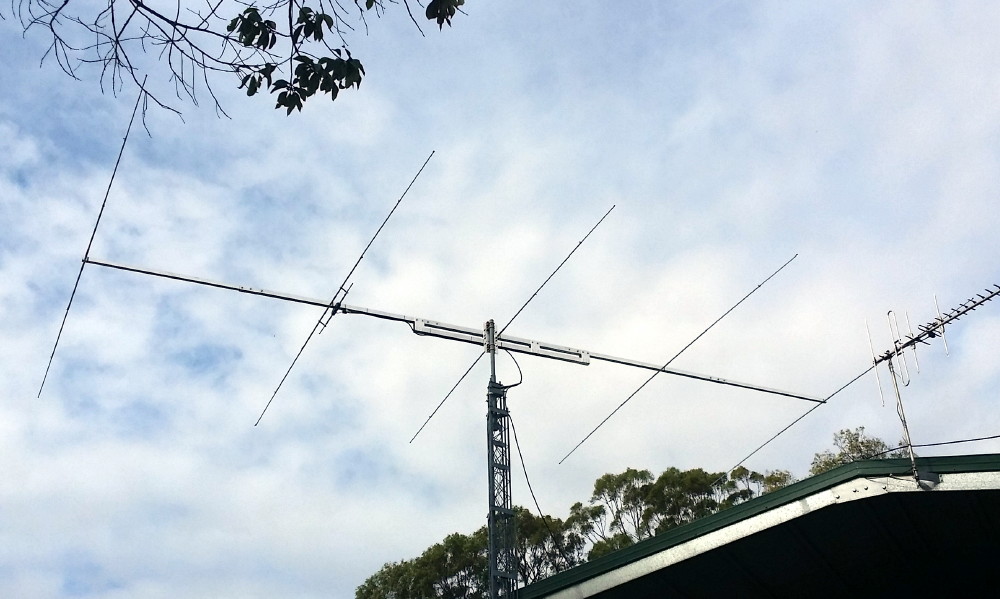

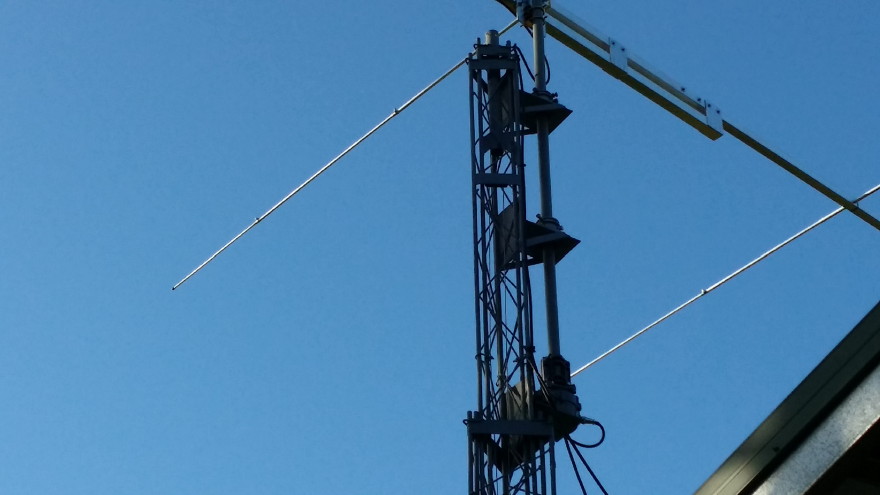

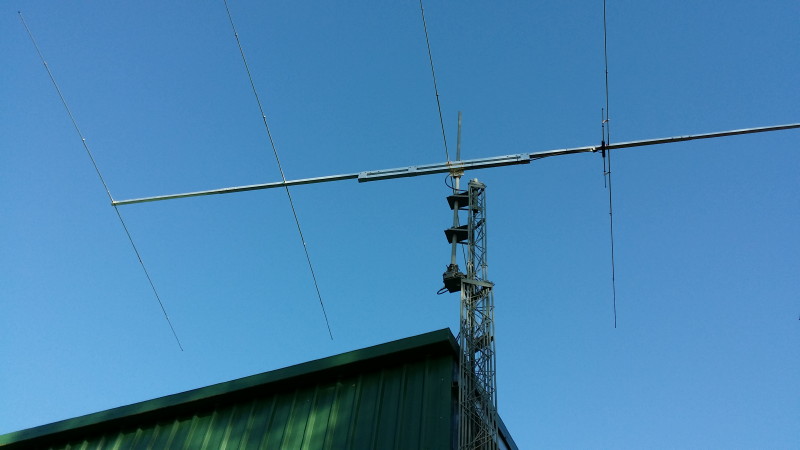

Duoro HY11m5e GTM 5 element 27 MHz yagi + Create RC5-3 rotator & 2 Kenpro thrust bearings supplied by  Duoro Services. Tower mods design idea by Duoro Services, all tower mods done by customer. (WM).






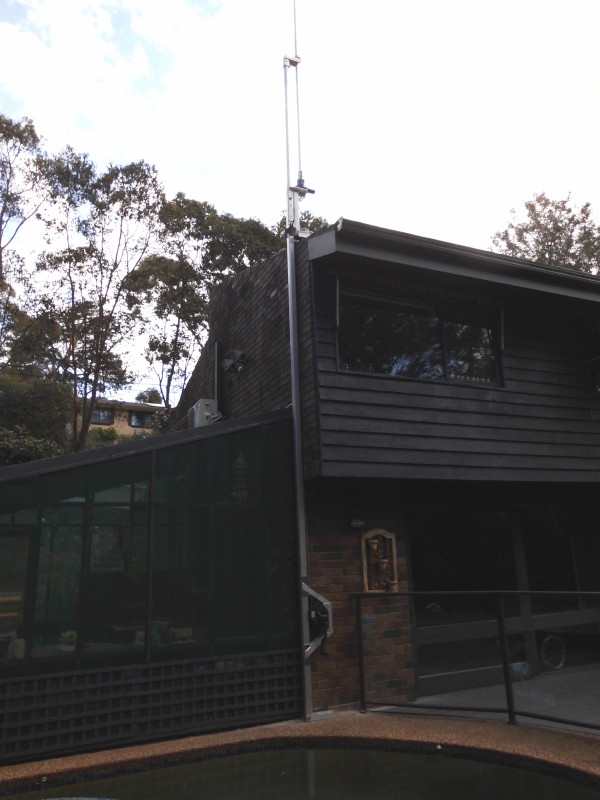

(SR) Full Aluminium Lay Over Mast With PST Rotator & Ultra Beam

VIEW THE VIDEO ON YOUTUBE

.................................................................................................

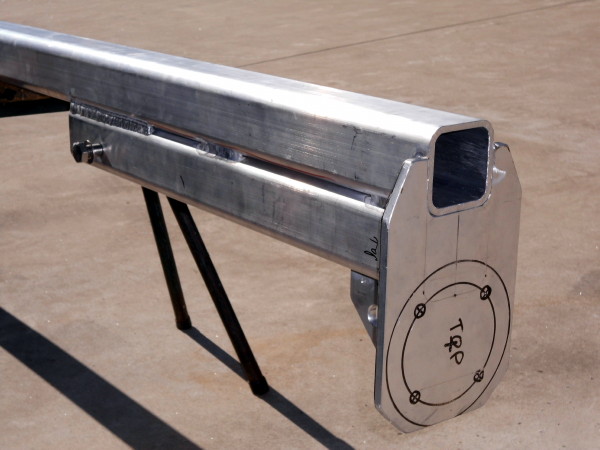

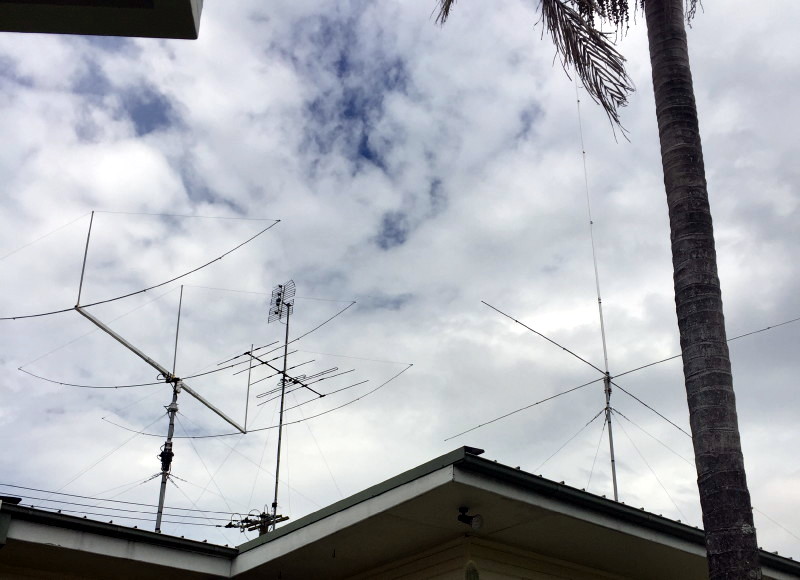

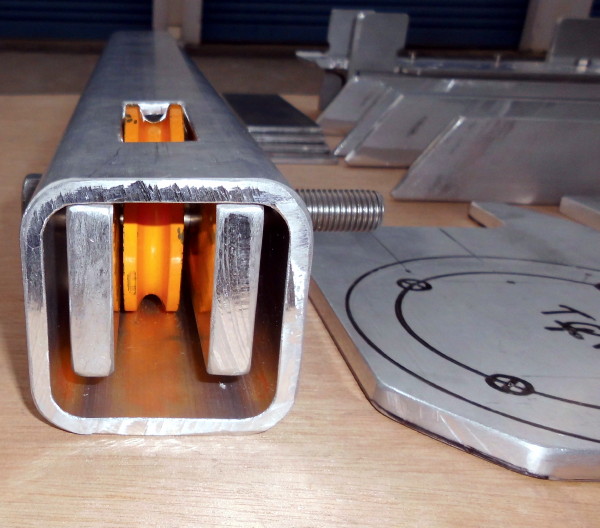

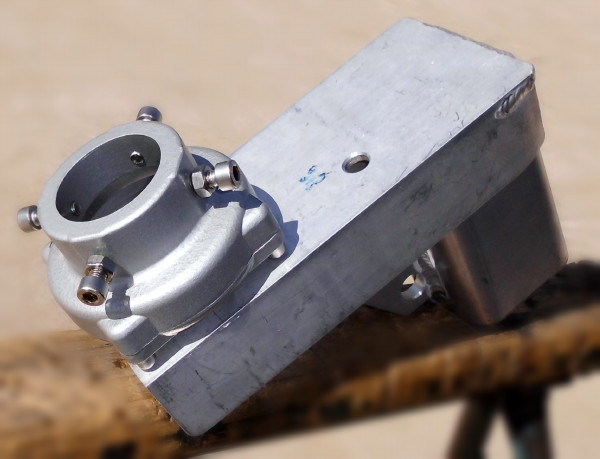

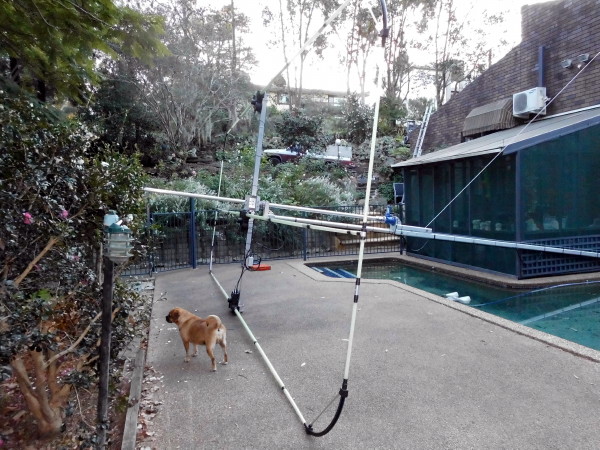

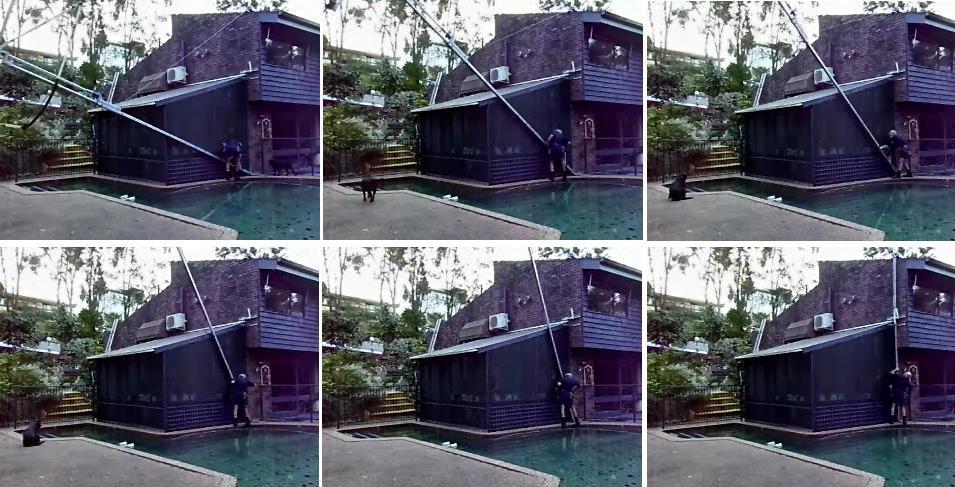

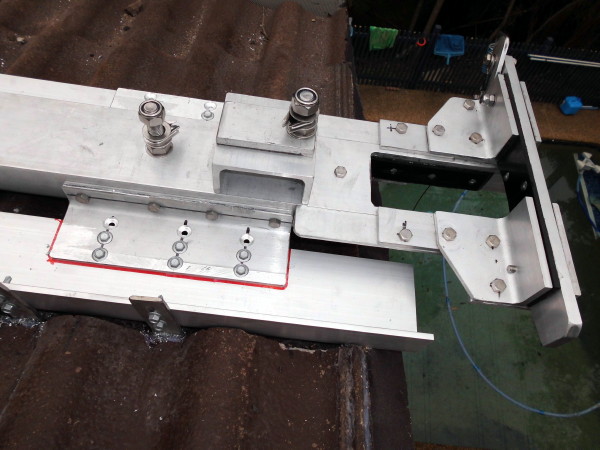

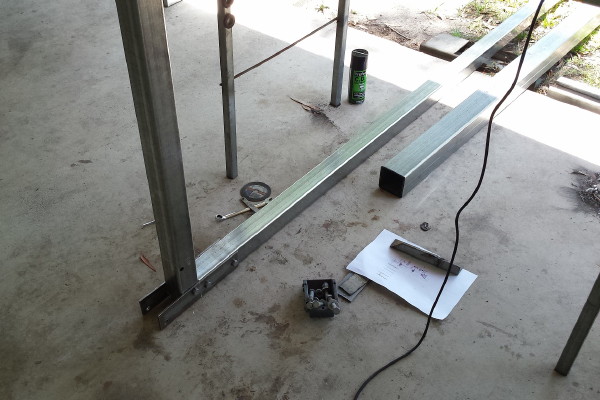

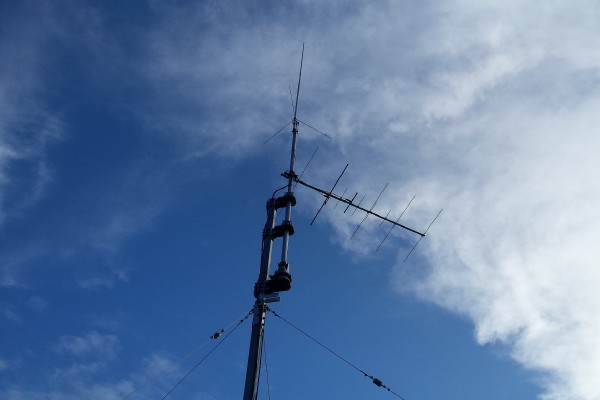

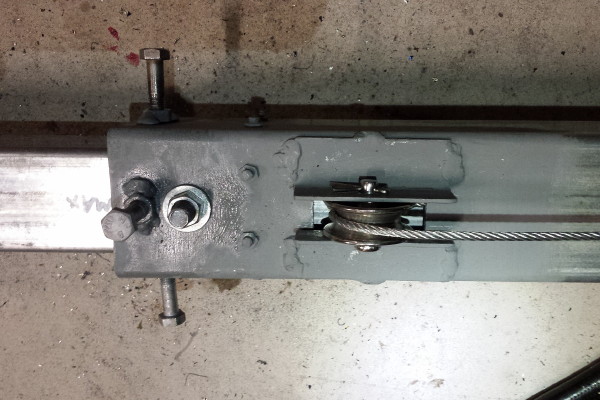

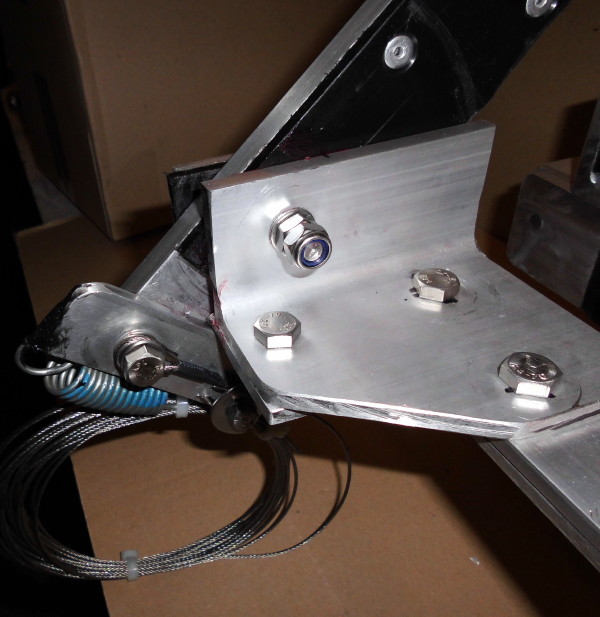

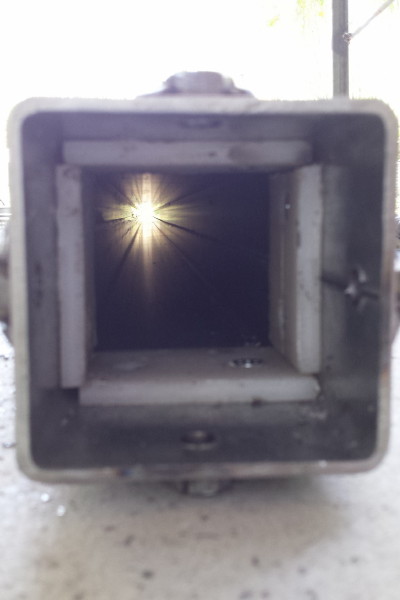

Full aluminium lay over mast (76.2mm sq x 6.2mm wall reducing to 63.5 x 6.35mm tube, rotatorable mast is 50mm x 4mm tube) with two remote latchers & a roof mounted main support/winch point . Designed, built & install by Duoro services (all welding by JH welding & fabrication). PST-641d Rotator & Kenpro thrust bearing, 6m to 20m antenna is a Ultra Beam UB20 MX 620 plus a tri-band (6,2m & 70cm) vertical on the top, Also installed was a Fritzel FD4 HF multi-band wire antenna. The PST rotator, Ultra Beam & the Frizel were supplied by Duoro Services from RF Solutions. (SR).






(RO) Emotator 1100m Rotator & Controller Repaired, Upgraded & Refurbished.

..............................................................................................

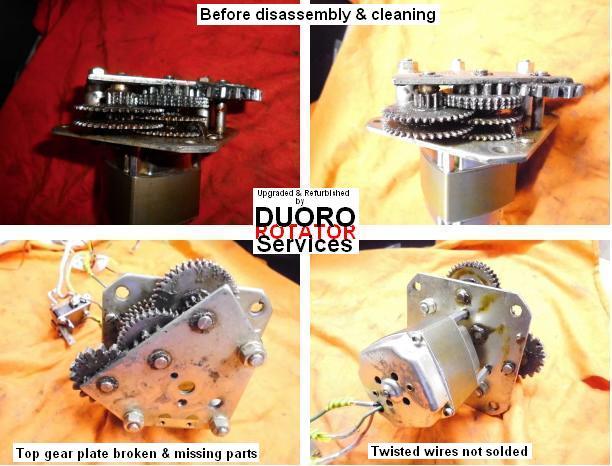

EMOTATOR 1100m Rotator & controller :- Repair, Upgrade & Refurbished:- Customers rotator broken direction feed back POT. & gear arm etc, missing gear arm mount in top housing, broken lever for limit switches & missing stop pin. The controller meter display globes blown, scale plate of meter not correct, direction indicator no working.

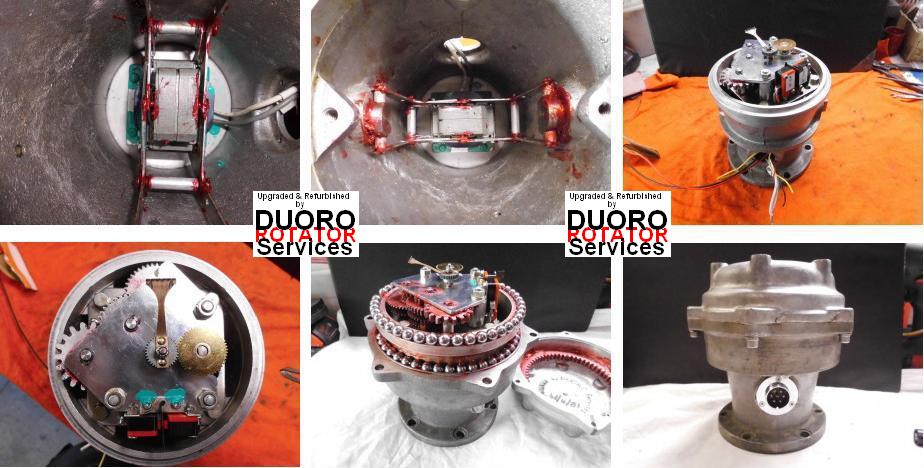

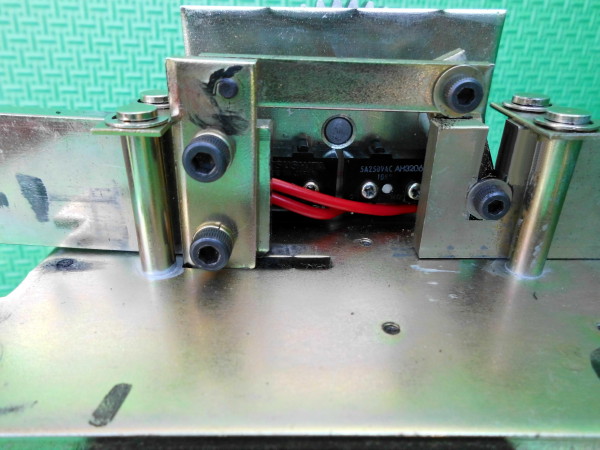

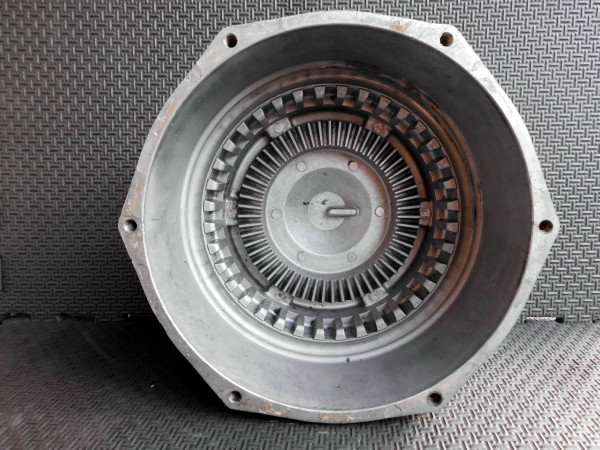

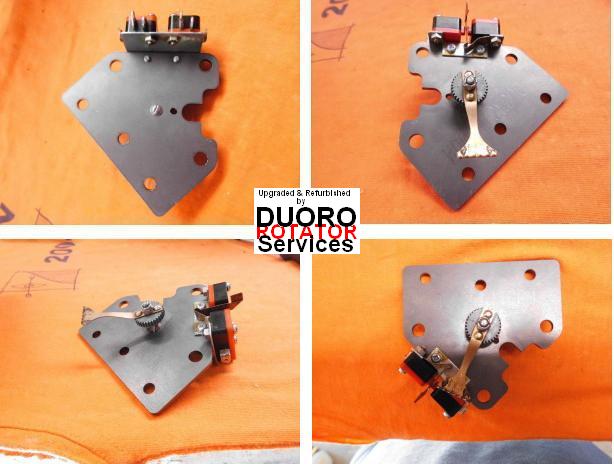

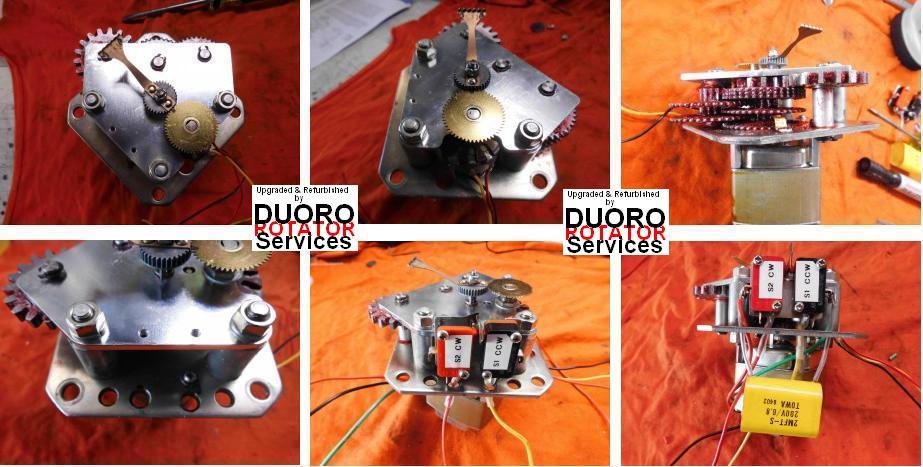

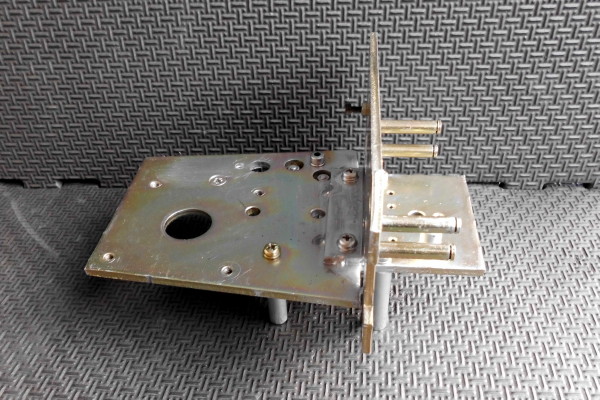

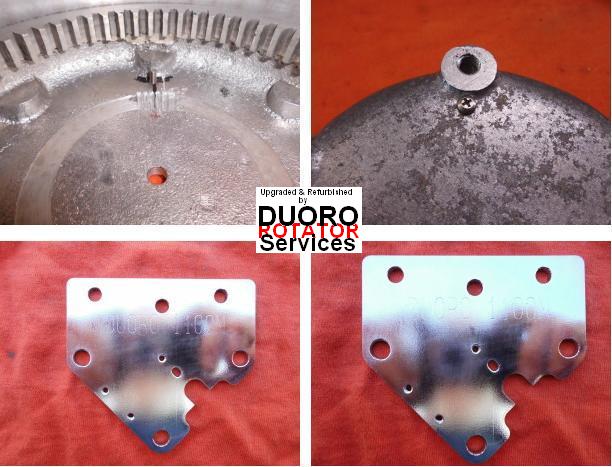

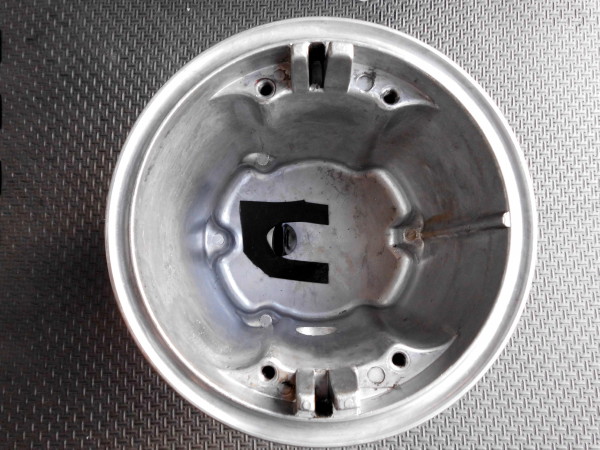

The Repair, Upgrade & Refurbishment :- The Rotator :- Completely disassembled cleaned & checked all parts for damage including mast clamps etc. Since the broken original POT was the small version & is no longer available I replaced it with a current version in doing so I had redesigned & upgraded the top gear & POT plate to 1102/3 version, this new replacement plate was laser cut then zinc plated (which is available as spare parts). Replacement POT. & gear arm were installed onto the new plate then. Limit switches & motor start CAP. were replaced & fix the lever arm. Re-shimmed & reassembled gears with new grease then installed the new top plate & shaft topper. Rewired the damaged motor wires. The brake wedge parts were stripped cleaned the zinc plated then re-assembled & installed. Re-installed motor & gearing into housing then it was fully re-wired. The top housing had to be moded for the mount of the new POT. gear arm. A new stop pin for the limit switch was also installed into the top housing. Full re-assembled with new bearings & grease.

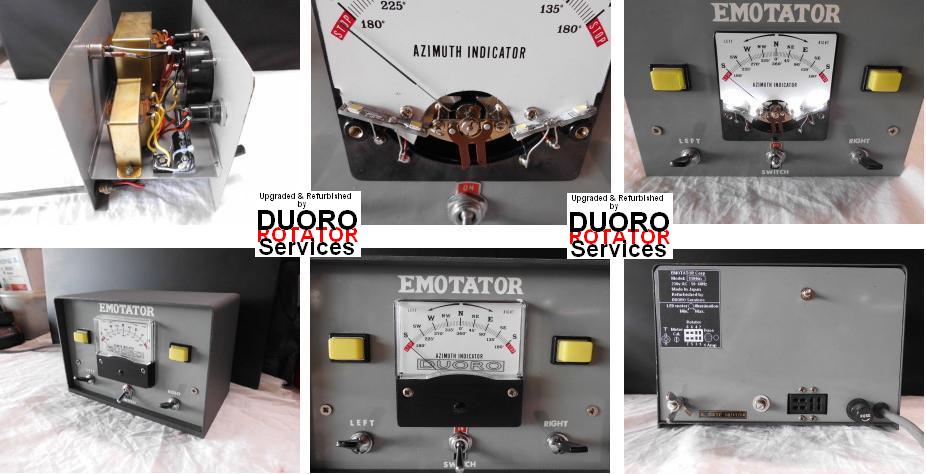

The Controller :- Cleaned. Repaired broken power switch. Upgraded direction meter:- scale plate replaced with Kenpro KR400 version, installed LED illumination & power supply plus added POT for display brightness. Fixed faulty direction lamp. Re-calibrated to the rotator. (RO).
