**SPECIAL OFFER**

DOUBLE THE ROTATOR WARRANTY.

PURCHASE & INSTALL TWO (2) CREATE CK-46 MAST BEARING ABOVE ANY ROTATOR PURCHASED BELOW I WILL DOUBLE THE LISTED WARRANTY (ie 36 month to 72 month).

Disclaimer :- Photo proof of proper approved installation must be provided to activate the warranty extension.





>>CLICK PHOTOS TO ENLARGE INTO GALLERY FORM<<







CREATE



CK-46. Mast Bearing.

NEW.



(Qty 2) (FOR SALE)   $120.00AUD each.







"NEW" Mast Bearing for above rotators.

The CK-46 is a revolutionary new type of mast (thrust) bearing, that is a brake away from the standard notions of the past. Advanced engineering plastic technology for the bearings & magnesium alloy die-cast are used for the housings respectively, & also galvanized high tension bolts are used as the hardware, that assures high intensity & strength, anti-corrosion features of the mast bearing. The grasping method for the mast is chuck type (instead of bolts ends type) that adapts the same structures used in the lathe machine, enables a strong grasping force to the mast, that results in no bolt end damage to the mast, meaning aluminium mast can be used with the CK-46, with peace of mind.

SPECIFICATIONS

Acceptable mast diameter:- ..................40 ~ 65mm.

Allowable Horizontal force:-...................600 Kg.F.

Allowable Vertical Force:-.......................200 Kg.F.

Mounting:-................................................4 x M8 bolts @ 85 mm diameter.

Weight:-....................................................1.4 kg







CREATE



CK-46. Mast Bearing.

Refurbished.



(Qty 0) (sold out)  $ AUD.





 Basic Refurbishment. These bearing have been used, But are in good condition.

Completely striped down & cleaned etc then reassembled with new grease.







DUORO SERVICES



SMB65ss Series SIDE MOUNT BRACKETS.

NEW. Made from 3mm Stainless Steel.



"For Antenna System With A Maximum Total Wind Area Of 1.0m Square".



Minimum of two brackets needed 1 x SMB65ssB & 1 x SMB65ssR, sold individually.

IF NONE IN STOCK, THEY ARE MADE TO ORDER.

PAID IN ADVANCE, 2~3 WEEK LEAD-TIME.



youtube-logo-full_color100.jpg - 5.00 Kb



View the video on YouTube





 SMB65ssB.

(Qty 1) (FOR SALE)  $275.00 AUD each bracket.

IN STOCK.

MAST BEARING NOT INCLUDED.

The pics below are of the actual item for sale.





 SMB65ssR.

(Qty 1) (FOR SALE) $275.00 AUD each bracket.

IN STOCK.

The pics below are of the actual item for sale.





 SMB65ss Series SIDE MOUNT BRACKET RODUCT INFO:-

 SMB65ssR is for the  rotator & SMB65ssB is for mast thrust bearing.



"For Antenna System With A Maximum Total Wind Area Of 1.0m Square".



Support mast, clamping sizes:-

50 to 68mm diameter round tube, RECOMMENEND 60~68mm dia.

65 to 68 mm SQUARE tube, (Using optional longer bolts).

NEW:- OPTIONAL Locator Plate & Backing Clamp for LIGHT DUTY SETUP using 50 x 50mm Square or 50 x 75mm Rectangle SUPPORT MAST, POA.

Can also be attached to a flat surface 100mm plus width, (using screws or bolts).

Each bracket is made from 3mm Stainless Steel, Laser cut, computer folded & welded by MICRO Manufacturing in Australia.

Supplied with backing plate & 6 x 65mm M8 S/S hex set screws, nuts & washers.

Has provision for four (4) support mast locking screws or bolts

A minimum of two brackets (1x SMB65ssB & 1x SMB65ssR) are needed, for added rotator protection a second SMB65ssB can be used.



SMB65ssB is for the large Mast Thrush Bearings from Create CK46 & Yaesu GS-65 for pipe mast size 50 to 65mm dia.

MAST BEARING NOT INCLUDED.

Weight 1.82kg.





SMB65ssR is for most rotators with a 4 or 6 bolt mounting pattern including:-

CREATE:- RC5 series RC5-1, RC5-1DC, RC5-3/P, RC5A-2, RC5A-3/P, RC5B-3/P, RC5B-4P etc.

DAIWA:-  DR-7500, DR-7600, MR-750, MR-300 & MR-400.

EMOTATOR:-  102, 103, 105, 501, 502, 747, 750, 1100M,1102/3, 1105, 1200 & 1300,1500 etc.

Hy-Gain, CDE etc:- AR-22, AR-40, BT-1, TR-44, CD-44, CD45, Ham-M, Ham-2, Ham-3, Ham-4 & Ham-5 & T2X.

KENPRO:-  KR-400, KR-450XL, KR-600, KR-650, KR-800, KR-1000, KR-2300, KR-2500, KR-2700 & HR-1300 etc.

PST:-  641 & 2051.

YAESU:- G-400,G-450, G-600, G-650, G-800, G-1000, G-2300, G-2500, G-2700 & G-2800 etc.

Weight 1.86kg.





These new versions have longer gussets (165mm) with more lock tabs & spanner holes to make it easier to do up bolts etc.

SMB65ssB now has a larger mast hole (66mm) & the gusset are on a angle to miss this hole.

SMB65ssR now is wider (150mm) to accommodate the PST 2051 plus the mounting holes have been adjusted.

Added new mounting holes & wiring entry for Hy-Gain / CDE Ham series & T2X rotators.

T2X having all 6 mounting holes able to be used.

Added feature :- The centre is now solid to protect  Create Rotators, being all the weight of the mast etc is in the middle of the base of the rotator.

Extra feature :- The adding of the bottom cable entry for HyGain/CDE rotators mean rotator like PST & Kenpro etc with breather holes on the bottom, now have air flow.







DUORO SERVICES



NEW PRODUCT



LMB50ss



Lower Mast Bracket Suitable For Most Popular Brands Of Rotators.



Available in two version, with 2 or 3 mast clamps.

(Qty 4) (FOR SALE) LMB50ss-2  $200.00 AUD

IN STOCK.



(Qty 4) (FOR SALE) LMB50ss-3  $230.00 AUD

IN STOCK.



The pics below are of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb

CLICK To View the video on my YouTube Channel



Suitable for most popular brands of rotators with 4 or 6 bolt mounting patterns :- CREATE, CDE/HYGAIN, EMOTATOR, DAIWA, KENPRO & YASEU etc.

The main body of the LMB50ss is made up of 7 stainless steel pieces which were Laser Cut & the backing has been computer controlled folded. All the parts have interlocking tabs on them, this makes assembly & welding easier.

The base is 5mm thick & has a selection of rotator mounting hole configurations in it, also has a 'T' support bars to keep the mast off base & away from the wiring for the CDE/HYGAIN rotators.

The rest of the LMB-50ss is made from 3mm S/S, including the folded mast clamps which have the M8 x 75mm S/S Hex set screw affixed into them by a lock nut, this prevents bolt from spinning & makes installation easier.

There is also provision to put 2 locking bolts through the top & bottom clamps into the mast & out the back of the bracket.

Includes all clamping hardware.









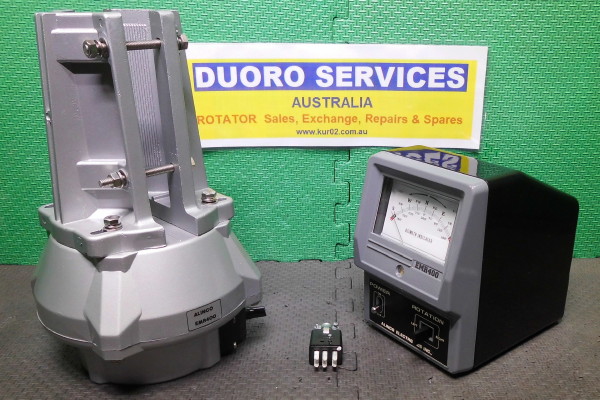

ALINCO  EMR-400



Rotator Set

Refurbished & Upgraded.



(Qty 0) (SOLD)  $ AUD



12 month warranty (extendable to 24 month for an extra $100.00).



The pics below are of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb



CLICK TO View Controller video on You Tube

CLICK TO VIEW Rotator video on YouTube



Rotator Set with Panel Metered Controller & rotator with top mast clamp, hardware, plug for control cable & revised manual.



Wind Area .............. 0.50m Sq.

Rotation Torque .....5.5 Kg/m

Brake Torque ......... 15.0 Kg/m

Mast Size ............... 38~50mm

Rotation Time ....... 60 second 360 degree

Control Cable ........6 core

Rotator Voltage .....100vAC.



The Panel metered Controller :- Upgraded to control the 100vAC rotator.

This controller has panel meter direction display & a single 2 way paddle style direction switch.

Completely strip down, the steel chassis was cleaned & upgraded then under coated followed top coat, The outer housing was cut out to suit the chassis upgrades.

Features:- New PCB with LED power supply on board, New 240vAC transformer with 100v & 12v output, Single two way direction paddle switch, Panel meter was replaced with one from a Kenpro KR-400 & is illuminated with LED strip light, New Fused IEC socket on back panel along with a 6 pin Cinch socket & S/S mounting plate, Calibration POT.

Supplied with new 6 pin Cinch plug.



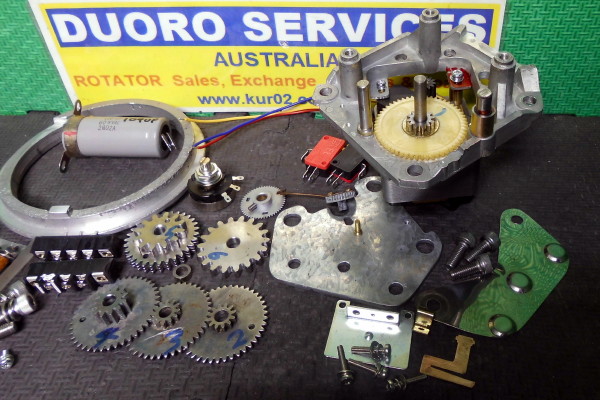

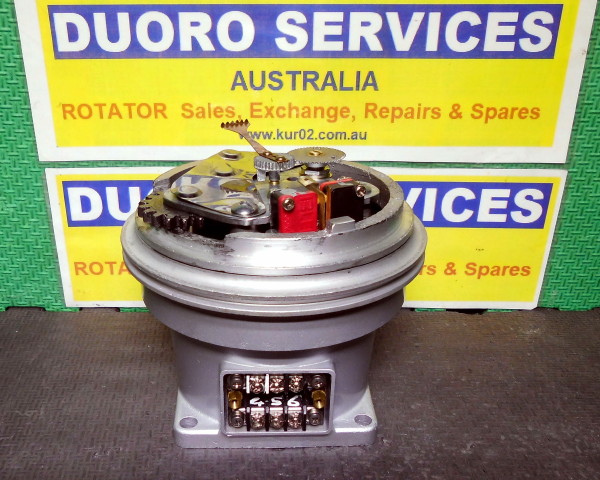

The EMR-400 Rotator :- Has a friction brake on the motor, has been fully refurbished & upgraded.

New parts are:- M6 Stainless steel clamping & mounting hardware, Limit micro switches, Motor start CAP, Bearings, Wiring, M4 screw in terminal board, etc .

Replacement/Upgrade parts:- 100vAc motor, Zinc plated gears etc, The 8 x M6 mounting holes have been drilled out & had metric M6 RECOIL's installed.

The top chassis plate was strip down (removed the first gear & limit swing bar) then prepared for upgrades, it was them under coated & painted.

The motor start CAP is now in the rotator & limit switches have been installed which means you can still use the standard 6 core control cable.

Installed new ball bearings & reassembled with new grease through out.

Aligned & Calibrated with the controller.

Includes top mast clamp & S/S mounting hardware.



240vAC.  12 month warranty (extendable to 24 month for an extra $100.00).

This Unit was available For Exchange. CLICK For Details.







CREATE



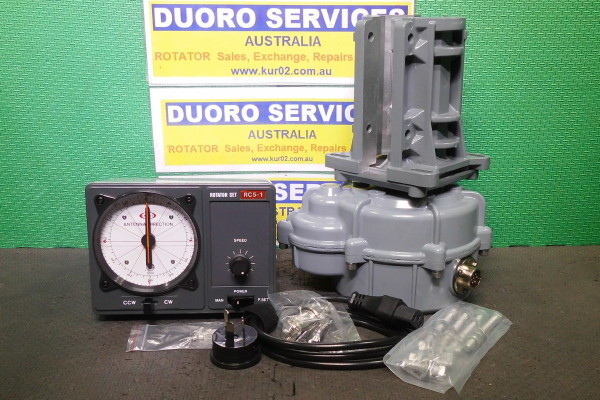

RC5-1 Rotator Set with Dial Speed Control.

NEW.



(Qty 0) (SOLD)   $AUD.



The pics below are of the actual item for sale.



NEW  Rotator & Controller Set :- In original box Includes:- Top mast clamp, Plug & terminals for control cable, GAL mounting & clamping hardware & Manual. Uses 7 core control cable not supplied & sold separately, please view cable available on the rotator spares page.



Wind Area .............. 1.2 m sq.

Rotation Torque ..... 6.0 kg/m

Brake Torque ......... 80 kg/m

Mast Size ............... 48 ~ 63mm

Rotation Time ........ 75 ~ 110 seconds 360 degrees

Rotator Voltage ..... 28vAC.



The -1 Controller :- NEW. Has variable dial speed control (75 to 110 seconds for 360 degrees)  with a full circle compass display with a single on-off-on manual direction paddle switch.

The RC5 Rotator :- NEW. Has 1/60 worm drive into two stage reduction gearing, all driven by a high torque 28v AC motor.

Able to rotate a full 380 degrees. It has low back lash with high rotation torque & powerful braking without relying on any auxiliary brake mechanism. With a total of only four gears, two of which are made from high tensile steel & the other two are made from zinc alloy, all running on high tensile steel shafts.

230 vAC.







CREATE



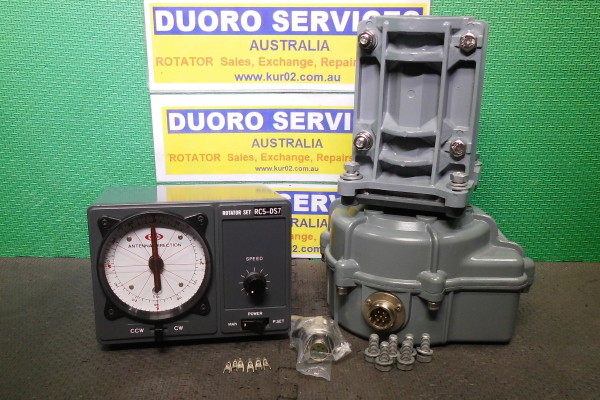

RC5-DC24DS7

Rotator Set with Dial Speed & Remote Control.

Rebuilt, Refurbished & Upgraded With NEW Parts.



(Qty 1) (FOR SALE)  $1,600 AUD.



The pics below are of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb



CLICK TO View the RC5-DS7R video 1 on You Tube

CLICK TO View the RC5-DC24 video 2 on You Tube



Includes top mast clamp & Gal H/W + plug & fork terminals for control cable, revised manual.

Wind Area .................. 1.2 m sq.

Rotation Torque ........ 4 ~ 10 kg/m

Brake Torque ..............90 kg/m

Mast Size ....................48 ~ 63mm

Brake System..............Worm Drive a natural brake system

Rotation Time ............ 35 ~ 110 seconds 360 degrees

Rotation Angle............380 degrees.

Rotator Motor .............24vDC 13w.

Rotator Weight............5.0Kg

Controller Weight ......3.1Kg



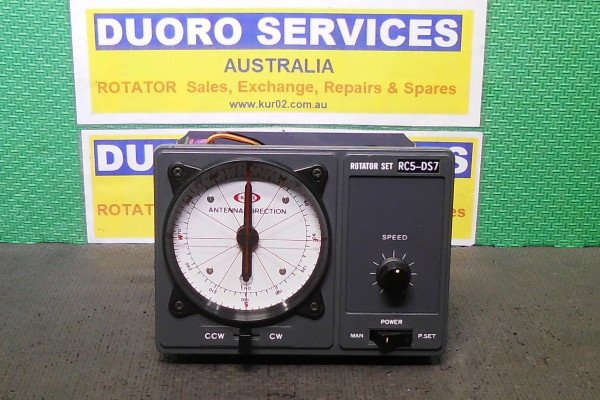

The RC5-DS7 Controller :- Has Dial Speed Control With Manual Direction Switch & Full Circle Compass Display, New DS7R remote control PCB.

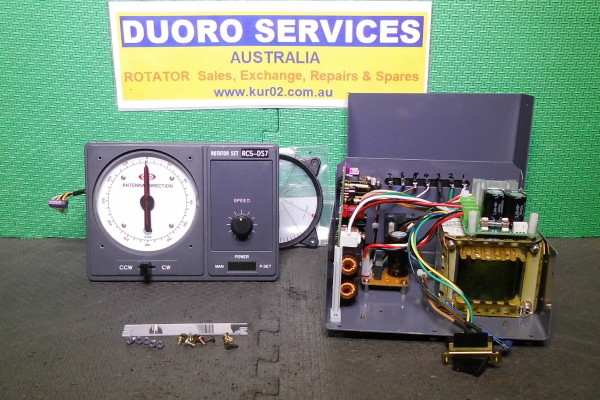

Since the original controller was damaged by lightning it was completely stripped down & upgraded with NEW parts.

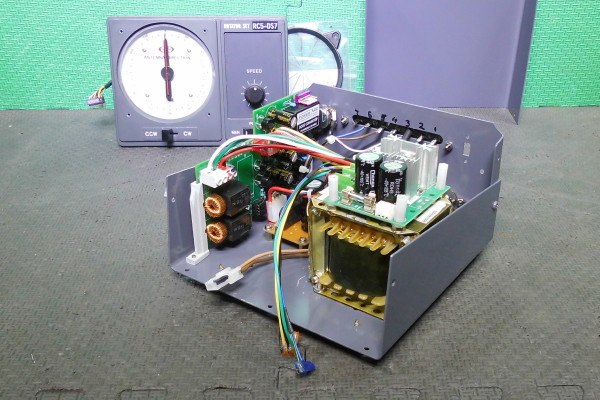

New Parts installed:- DS7R & Power PCB's, 10amp PWM speed control module, 7 way output terminal barrier, Display drive gearing, POT for Speed Control, POT's for display assembly & adjustment, Transformer, LED illumination, Limit LED, Fused IEC power socket & safety power lead, M4 earth bolt.

Completely re-wired the whole controller. Housings have been repainted, .

Has be fully checked & aligned with the RC5-DC24 rotator below.



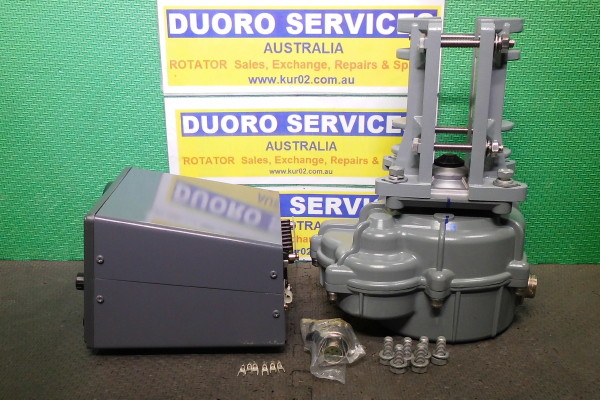

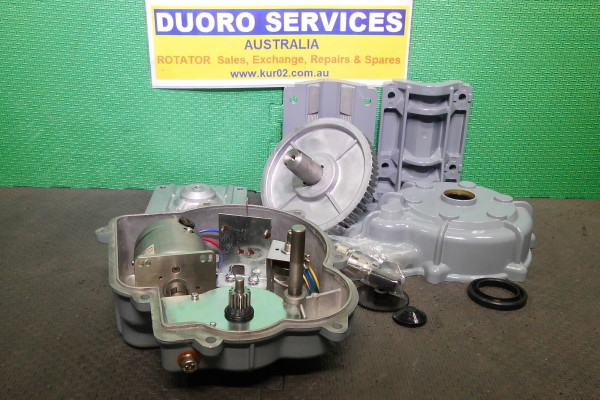

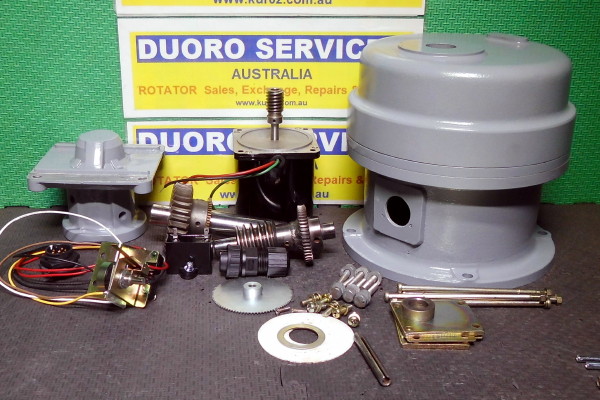

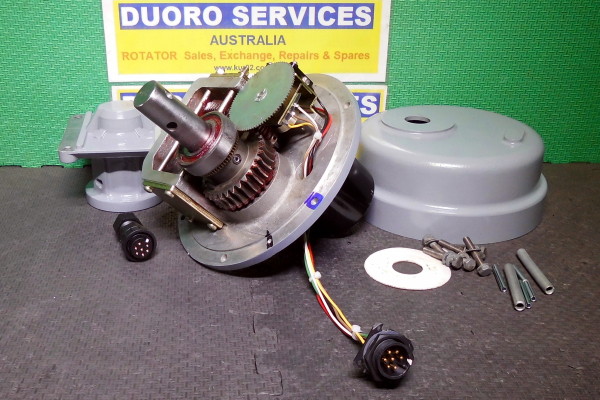

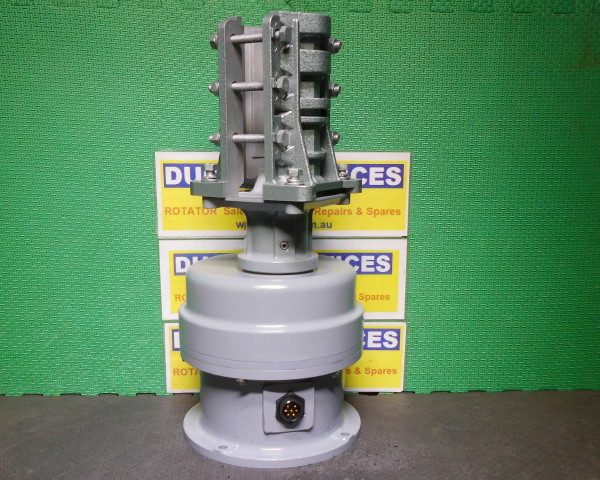

The RC5-DC24 Rotator :- Has 1/77 worm drive into two stage reduction gearing, all driven by a new 24v DC motor.

Able to rotate a full 380 degrees. It has low back lash with high rotation torque & powerful braking without relying on any auxiliary brake mechanism. With a total of only four gears, two of which are made from high tensile steel & the other two are made from zinc alloy, all running on high tensile steel shafts.



Completely stripped down & cleaned.

Has been refurbished & updated with @ least 75% NEW parts.

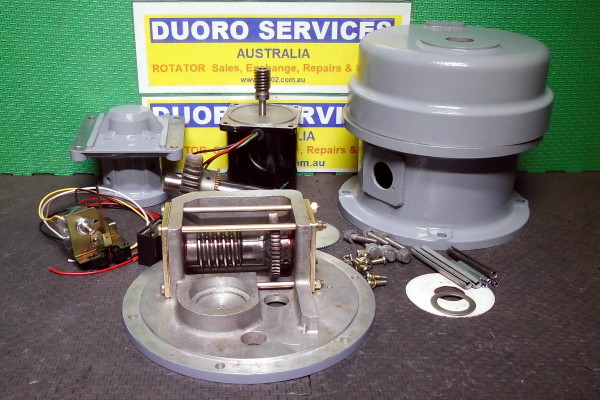

NEW Parts list:- MC601 Output flange, 24v DC motor + mounting bracket, Coupling assembly, Shafts for Worm Gear & Worm Wheel, Worm gear & worm wheel, Drive Gear & shaft, Final gear & shaft, Limit Switch assembly, POT gear, 500 ohm POT & mounting bracket, Weather Seal & Screw cover cap, Both plug & socket for control cable, Fully re-wired.

The housings & mast clamps were glass bead blasted etched primed then paint in Epoxy Enamel Pewter.

The Worm Gear/Worm Wheel chamber was upgraded & sealed better for the new Bel-Ray 00 white fluid grease I use the chamber.

The Main & Drive gears were re-installed into the refurbished housings with new grease through out.

Aligned & calibrated to the RC5-DS7 controller.

Includes:- Top mast clamp & mounting hardware + plug & terminals for control cable.



240 VAC. 24 month warranty.

This Unit is available For Exchange. CLICK For Details.







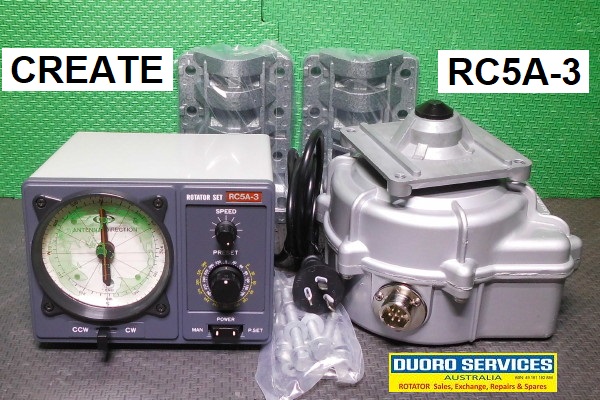

CREATE



RC5A-3 Rotator Set with Dial Speed & Preset Control.

NEW.



(Qty 0) (SOLD)   $AUD.



The pics below are of the actual item for sale.



NEW  Rotator & Controller Set :- In original box Includes:- Top mast clamp, Plug & terminals for control cable, GAL mounting & clamping hardware & Manual. Uses 7 core control cable not supplied & sold separately, please view cable available on the rotator spares page.

Wind Area .............. 2.5 m sq.

Rotation Torque ..... 16.0 kg/m

Brake Torque ...........200 kg/m

Mast Size .................48 ~ 63mm

Brake System...........Worm Drive a natural brake system

Rotation Time ......... 75 ~ 110 seconds 360 degrees

Rotation Angle.........380 degrees.

Rotator Voltage ..... .28vAC.

Rotator Weight.........7.0Kg



The -3 Controller :- NEW. Has variable dial speed control (75 to 110 seconds for 360 degrees) & Dial Preset with a full circle compass display includes a single on-off-on manual direction paddle switch.

The RC5A Rotator :- NEW. Has 1/60 worm drive into two stage reduction gearing, all driven by a high torque 28v AC motor.

Able to rotate a full 380 degrees. It has low back lash with high rotation torque & powerful braking without relying on any auxiliary brake mechanism. With a total of only four gears, which are made from high tensile steel, all running on individual high tensile steel shafts.

230 vAC.





CDE/HyGain



CD-45 Rotator





DUORO



DS-2c Controller.



(Qty 0) (SOLD)  $ AUD

 12 month warranty (extendable to 24 month for an extra $100.00).



The pics below are of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb



CLICK TO View the CD45_DS-2c video on You Tube



Panel Metered DS-2c Controller & CD-45 rotator with top mast clamp, hardware, plug for control cable & revised manual.



Wind Area .............. 0.79m Sq.

Rotation Torque .....9.21 Kg/m

Brake Torque ......... 9.21 Kg/m

Mast Size ............... 50mm

Rotation Time ....... 60 second 360 degree

Control Cable ........5 core

Rotator Voltage .....24vAC.



The DS Panel metered Controller :- Replacement controller for upgraded CD-45 series rotators.

This controller has panel meter direction display & a single 2 way paddle style direction switch.

Features:- New enclosure with my all new stainless steel sub chassis, New Compact CDE/HyGain PCB with LED power supply on board, Two x 240v transformers, Single two way direction paddle switch, Panel meter is from CDE controller with LED illumination, Fused IEC socket on back panel, 6 pin Cinch socket, New Calibration POT.

Supplied with new 6 pin Cinch plug.



The CD-45 Rotator :- Has a friction brake in the motor & has fully refurbished & upgraded.

The New parts are:- Stainless steel folded mast clamp, Bearings, mounting hardware etc.

A lot of the imperial threads have been drilled out & had metric M4 or M6 RECOIL's installed.

The motor start CAP was moved to the rotator (saving 2 wires), meaning you can use 5 core control cable.

Some of the original gears were replaced as they had been hitting each other (not properly shimmed up), All gears were shimmed & aligned when installed into the sub chassis with new grease.

Installed new ball bearings & reassembled with new grease through out.

Aligned & Calibrated with the controller.

Includes top mast clamp & mounting hardware.



240vAC.  12 month warranty (extendable to 24 month for an extra $100.00).

This Rotator Set was available for exchange. CLICK for details.







COMPUTATOR CT-1000



DUORO CR-4CT



Rotator Set.

Fully Refurbished & Upgraded.





 (Qty 0) (SOLD)  $ AUD.



The pics below are of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb



CLICK TO View PART 1 video on my YouTube Channel

CLICK TO View PART 2 video on my YouTube Channel

CLICK TO View PART 3 video on my YouTube Channel

CLICK TO View PART 4 video on my YouTube Channel



Includes top mast clamp, plug (for rotator end of control cable) & all new revised manual.



Wind Area ........................ 2.0m Sq.

Rotation Torque ............... 9.0 Kg/m

Brake Torque ................... 100 Kg/m

Brake System ...................Solenoid activated twin wedges

Mast Size ......................... 43 ~ 63mm

Rotation Angle .................390 Degrees (20 degrees each side of South)

Rotation Time .................. 75 second 360 degree @ 50Hz

End Of Rotation ................Electronical limit switches

Controller Features...........Manual operation with momentary & lock action, LED illumination inc.

                                            End of needle, BDS35 brake delay PCB, All new direction display.

Control Cable ...................7 core

Rotator Voltage ............... 100vAC split phase.

Rotator Weight................. 8.2kG inc. top mast clamp.

Controller Weight..............3.5kg



 Computator CT-1000 rotator & DUORO CR-4CT controller

 The CR-4CT Controller : - This controller has been rewired, reconfigured with a BDS-35-100 brake delay PCB & align to work with the upgraded COMPUTATOR CT-1000 rotator only.

Completely disassembled cleaned & upgraded.  Replaced original Transformer with 100v output version plus a small 12v output transformer, Installed a BDS-35 brake delay PCB, Replaced direction display & backing with a better version, Replaced the old globe illumination with LED's (2 white LED's for the display backing & 1 x blue LED for the needle) all controlled by a cut down yLED-dc-Limit PCB, Also install a Red LED onto the front panel (for Brake action), Replaced & upgraded cracked display drive gear.  The rear panel was prept for upgrades, original damaged labeling was removed then relabeled. Install new upgrades:- New 8 way screw terminal block, 240v fused IEC socket & also added an earth bolt. Re-wired then re-calibrated & aligned with rotator. Inc. Revised & upgraded manual, + new IEC power lead.

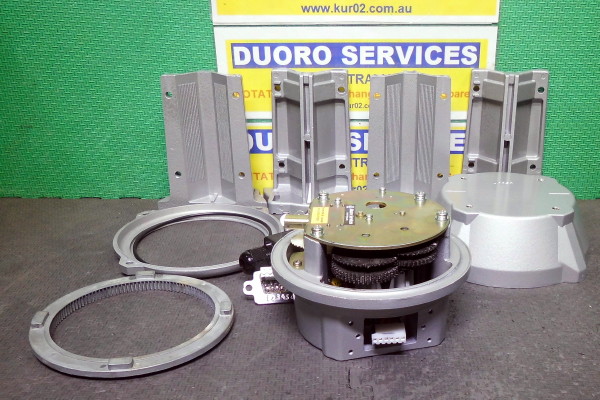

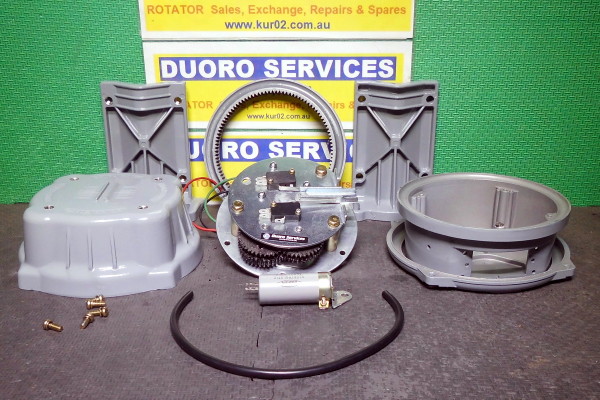

 The CT-1000 Rotator : - This rotator has been fully rebuilt refurbished & upgraded to 100vAC.

Completely disassembled, cleaned & checked all parts for damage etc. Replaced burnt out 24v motor + CAP & brake solenoid with 100vAC versions, new mounting blocks & bushes were made to install the replacement upgrade parts to the chassis. Repaired & upgraded brake wedge assembly.

Upgraded gear chassis:- Gear shafts were affixed (silver solded) into chassis base, Install larger diameter chassis support posts (with M6 bolts instead of M4) to reduce flexing, Made up new steel bushes for gear shafts & top chassis which incorporated gear spacer for more surface area & strength, these new bushes were press fitted in the top chassis.

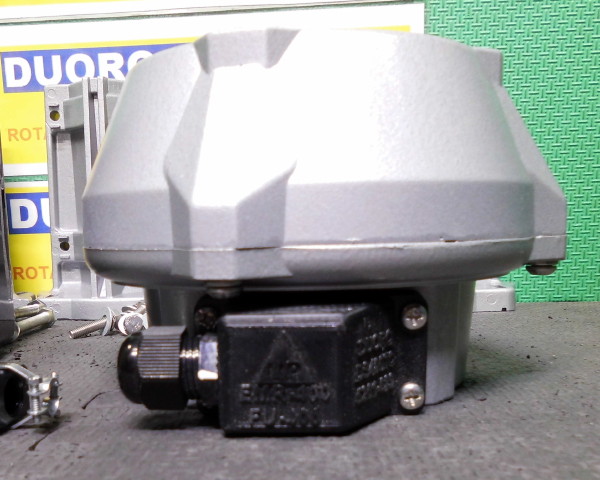

Refurbished the POT, replaced the limit switches, install a 7 pin IP67 socket. Fully re-wired. Re-assembled with new ball bearings & new grease through out.

Re-aligned & calibrated to the CR-4CT controller.

Incudes S/S clamping & mounting hardware + new 7 Pin IP67 plug.

240vAC. 24 month warranty.

This Rotator Set was available for exchange. CLICK for details.





CDE/HyGain

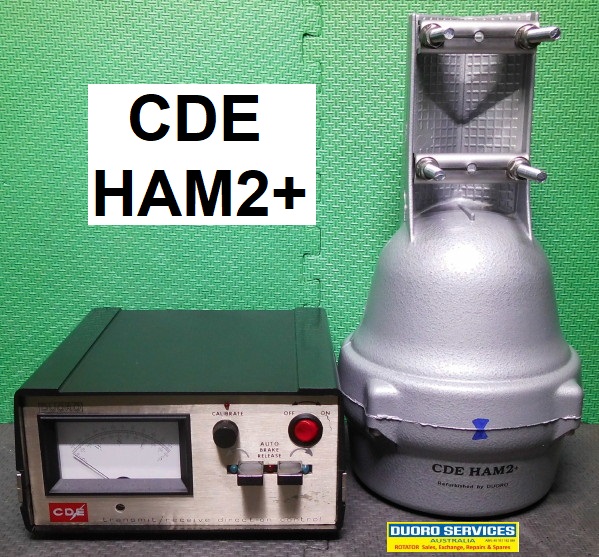

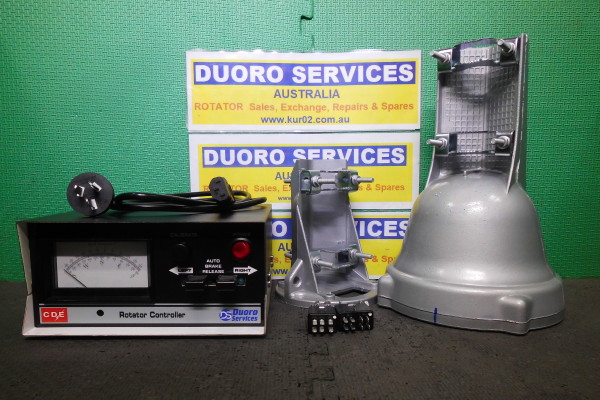

CDE HAM2+ Rotator & Controller.

Refurbished & Upgraded with NEW parts.



 (Qty 0) (SOLD)  $ AUD.



The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb



CLICK TO View the video on You Tube

CLICK TO View the Ham2 video on YouTube.





Includes top mast clamp, plugs for control cable & IEC power lead + revised manual.



Wind Area .............. 1.16m Sq.

Rotation Torque ..... 9.3 Kg/m

Brake Torque ......... 58.0 Kg/m

Mast Size ............... 50mm

Rotation Time ....... 60 second 360 degree

Control Cable ........Upgraded to 7 core

Rotator Voltage ..... 24vAC.



The HAM2 Controller :- Refurbished & upgraded to dual action direction switches (No more holding down the brake switch + the direction switch), upgraded to 7 core control cable.

Completely disassembled for mods & upgrades including removing the rear panel.

Upgrades:- New BDS-35 Auto brake & delay PCB, Converted from 3 lever action to dual action two levers including 4 new micro switches, Replaced the rear panel with a laser cut & etched stainless steel panel with NEW fused IEC & Cinch sockets + new CAL/NORM switch & earth bolt,

The original control PCB was replaced with one of my Prototype new version which has 12v output to drive the newly install LED display illumination, Also installed a new display transformer to suit the replacement PCB.

Added 3 LED's for brake & direction action, Replaced the main transformer with a 240v 160va Toroidal version, New illuminated power switch & CAL POT.

Fully re-wired, aligned & calibrated to the rotator.

Includes IEC power lead & Cinch plug.



The HAM2 Rotator :- This rotator has a solenoid activated brake 'V' wedge system.

This rotator was rebuild with NEW & refurbished parts, (inc S/S mast clamps & S/S hardware, CAP, Bearings, Cinch socket & plug, hardware etc.

The NEW motor had to be stripped down as it was not working properly, polished the drive shafts & fixed the friction brake, then bolted it back together.

The Solenoid brake assembly is good condition with new hardware.

Upgrades :- Control cable is now 7 core (instead of 8 core), by way of moving the motor start CAP to the rotator which used Pin's 4 & 8, then separating the motor & solenoid 0v on Pin 1, moving the motor to Pin 4, Replaced screw terminal with Cinch socket & cover plate, mounted the NEW motor start CAP,  Mast bracket upgraded my NEW Stainless Steel version.

Housings were glass bead blasted, etched primed then finished of in Hammer Tone Silver paint. Shimmed & aligned the gearing, replaced the bearings, then reassembled with new grease through out. Re-wired, Aligned & Calibrated with the controller.

Includes top mast clamp, mounting hardware, Cinch plug.

Transformers are 240vAC not 220vAC.

This unit was available for exchange. CLICK For Details.

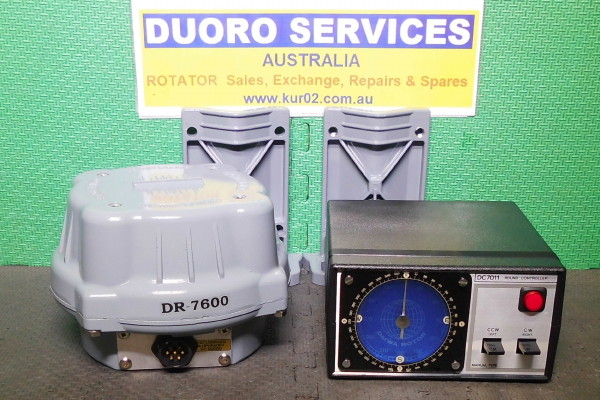

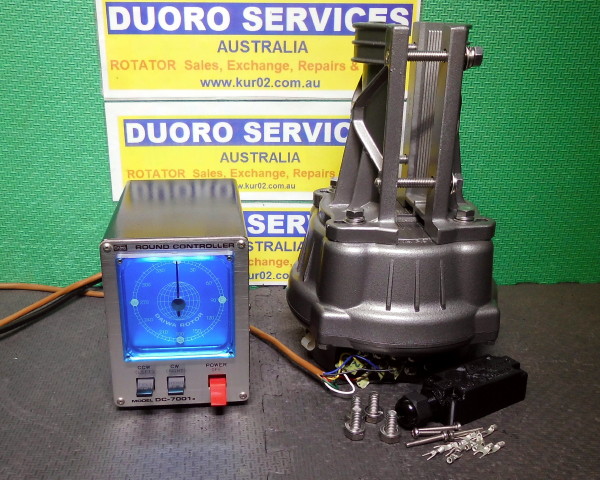

DAIWA



DC-7011DS Controller



DR-7600 Rotator.



(Qty 0 ) (SOLD)  $ AUD.



The pics below were of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb

View the DAIWA DC-7011DS video on YouTube

View the DAIWA DR-7600 video on YouTube





Rotator With A Full Circle Standard Controller, Refurbished & Upgraded.

Includes Top Mast Clamp & S/S mounting clamping hardware, revised & upgraded manual inc. new schematic.



Wind Area ...............1.5m Sq.

Rotation Torque ..... 6.0 Kg/m

Brake Torque ......... 40 Kg/m

Mast Size ............... 38 ~ 62mm

Rotation Time ....... 60 second 360 degree

Rotation stops .......Mechanical & Electrical

Control Cable .........6 core

Features...................Manual direction switches, LED display illumination

Rotator Voltage ..... 24vAC.



The DC-7011DS Controller:-

Manual direction switches, full circle display & LED illumination. Refurbished & upgraded etc.

Completely disassembled then cleaned, upgraded. Replaced original damaged casings with a NEW Hammond 1598 ABS plastic enclosure. The base & rear chassis have been replaced with a new Stainless-Steel version. The front chassis & front panel have been cut down, both upgraded chassis were installed into new enclosure.
On the front panel, I installed a new illuminated push on/off button power switch.
The PCB has been upgraded with new 10 turn meter alignment POT, to make alignment easier.
Replaced old globe display illumination with 2 x LED modules & installed their power supply onto the main PCB. Replaced the damaged direction display with one from a DC7001 controller Replaced cracked gear in display drive train, refurbished the POT.

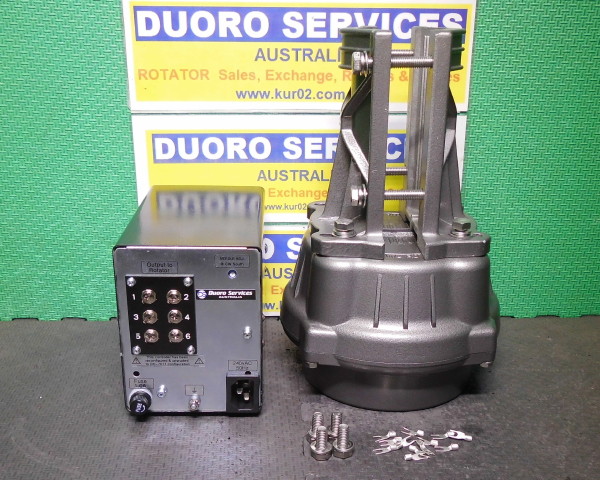

The rear panel has an upgraded 6-way screws terminal board, Fused IEC socket & Earth bolt.
Re-wired then re-calibrated & aligned with the DT-7600 rotator.

Supplied with IEC power lead & a revised manual.



The DAIWA DR-7600 Rotator:-

This rotator has been upgraded with solid final gear & 8mm gear shafts.

Completely disassembled, cleaned & checked all parts for damage etc. The original 4-stack final drive gear was replaced with one of my KD-38-8 solid gears. Replaced the original 7mm gear shafts with new 8mm versions, all gears & spacer have been bored out to 8mm. Installed NEW limit switches & re-wired to the new 7 pin round LTW socket mounted on an Aluminium cover/mounting plate. Housings & mast clamps have Glass Bead Blasted, then Etch primer followed by Painting in Pewter Epoxy Enamel paint. The mast clamps have been upgraded with RECOIL thread inserts. Re-assembled with new bearings & grease throughout. Re-aligned & calibrated to the controller.

Supplied with new LTW 7 pin plug, stainless-steel mounting & clamping hardware.

230v AC. 24 month warranty.

This unit was available for exchange. CLICK For Details.

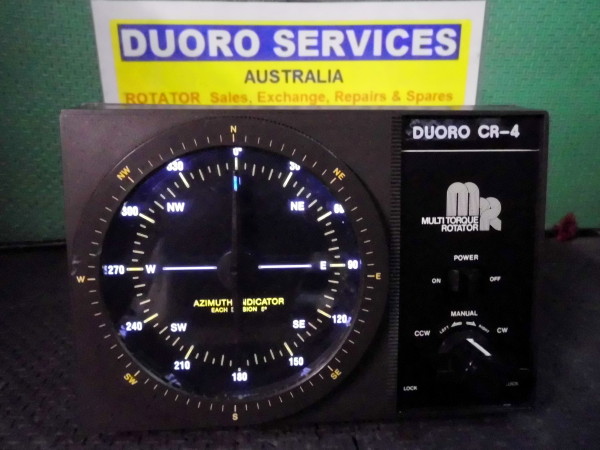

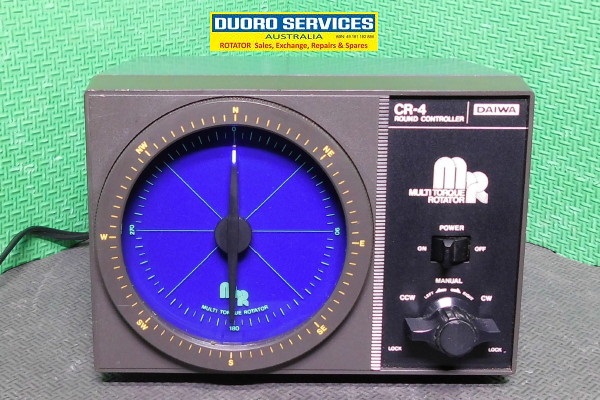

DAIWA

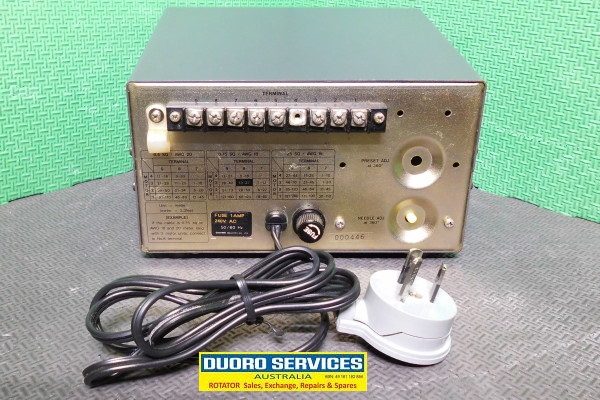

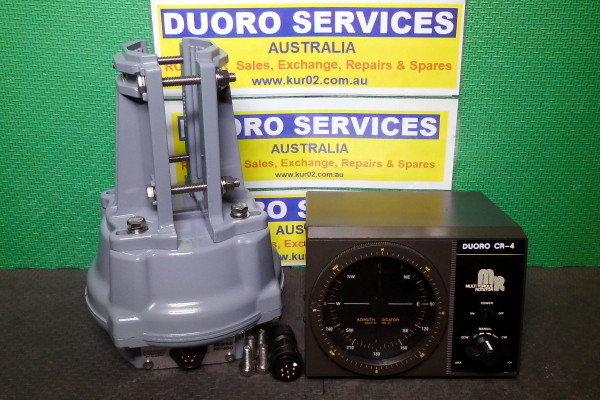

CR-4 Controller Only.

Basic Refurbishment.



(Qty 0) (SOLD)  $ AUD.



The pics below are of the actual item for sale.



Controller ONLY for MR-750E & MR-300E Multi Torque Rotators :-

Basic Refurbishment, Stripped down cleaned & serviced.

Upgraded meter illumination with LED's . Replaced cracked gear in the direction indicator drive train. Added heat sink to voltage regulator on PCB. Changed the AC primary tapping on the transformer from 100v to 230v. Replaced power cable with an approved safety version, re-wired to the switch & fuse.

230v AC.  12 month warranty.

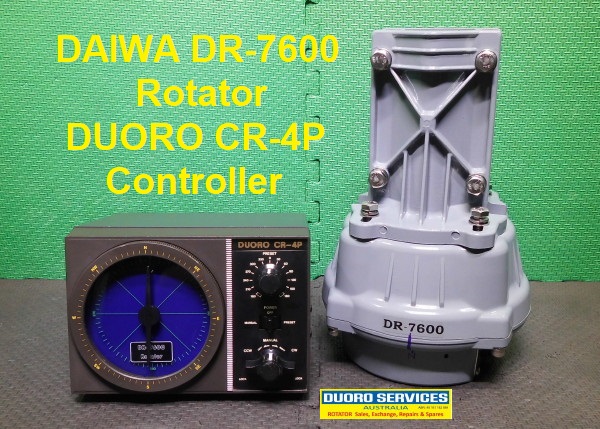

DUORO DAIWA



CR-4P Controller



DAIWA



DR-7600 Rotator.



(Qty 0 ) (SOLD)  $ AUD.



The pics below were of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb

View the DAIWA DR-7600 video on YouTube





Rotator With A Full Circle Pre-set Controller With Multi Voltage Output, Refurbished & Upgraded.

Includes Top Mast Clamp & S/S mounting clamping hardware, Plug for the control cable,  revised & upgraded manual inc new schematic.

Wind Area ...............1.5m Sq.

Rotation Torque ..... 6.0 Kg/m

Brake Torque ......... 40 Kg/m

Mast Size ............... 38 ~ 62mm

Rotation Time ....... 64 second 360 degree

Rotation stops .......Mechanical & Electrical

Control Cable .........7 core with limit feed back to the controller

Features...................Manual & lock direction switches, Dial Preset, Multi voltage output,

                                  LED display illumination inc end of needle, Limit indicator in needle

Rotator Voltage ..... 24vAC.

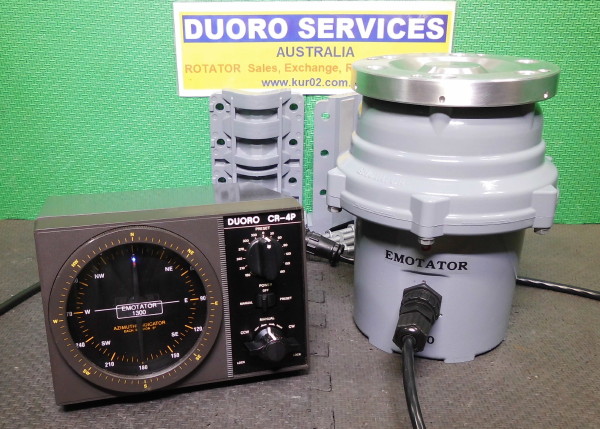

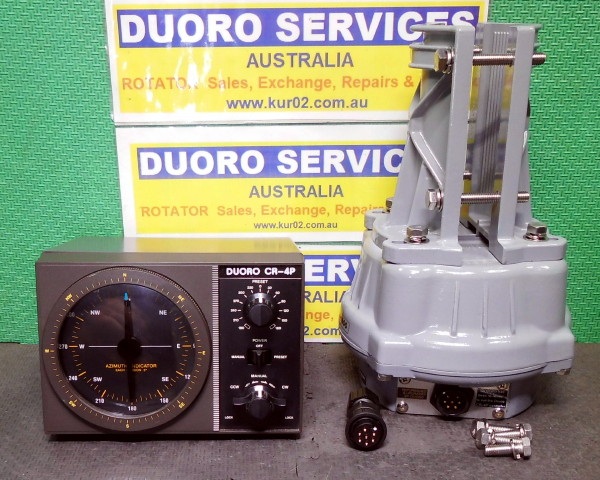

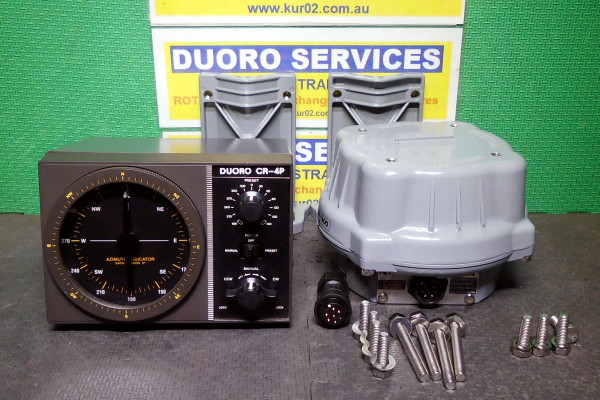

The CR-4P Controller:-

Manual & lock direction switches, dial pre-set control & full circle display. Refurbished & upgraded etc.

Cleaned & upgraded.

On the insides:- I installed LED display illumination including the needle end, Needle also has the rotation limit indicator in it which is controlled by a small PCB via the originally unused terminal 4 on the back of the controller, Replaced the cracked gear in the display drive assembly & also refurbished the POT.

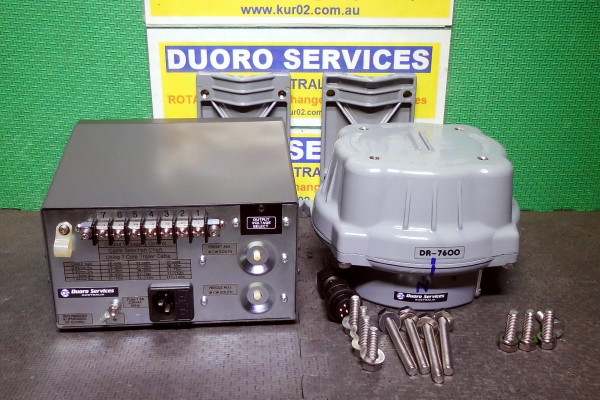

On the back panel:- Installed new wiring selection chart.

Re-wired, re-calibrated & aligned to the upgraded DR-7600 rotator.

Includes revised & upgraded manual including schematic.

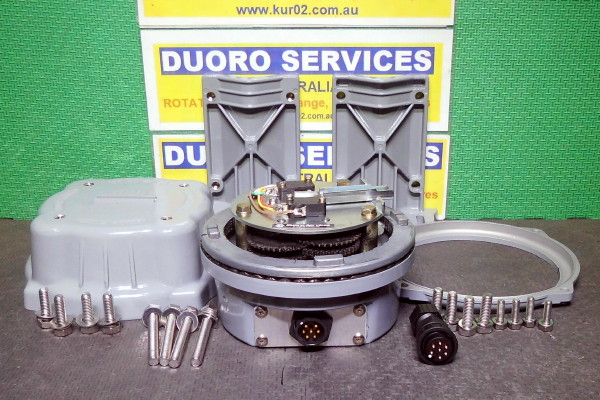

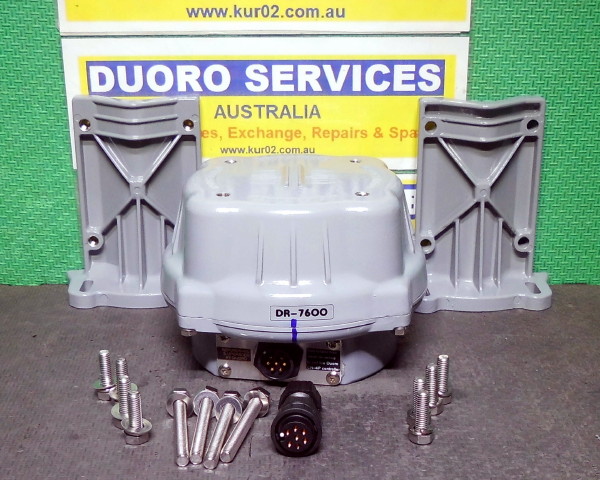

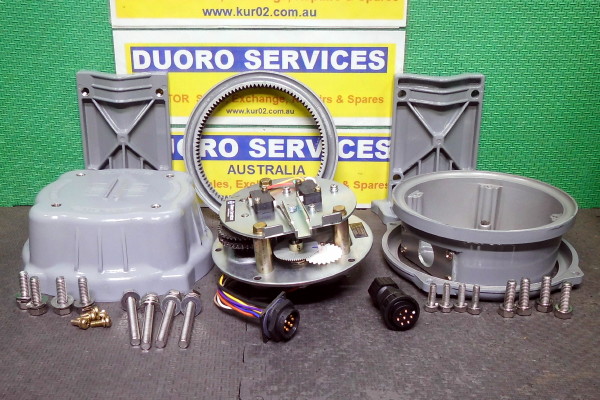

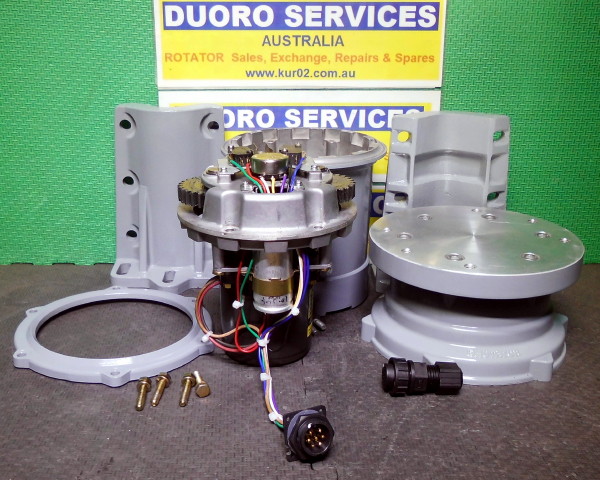

The DAIWA DR-7600 Rotator:-

This rotator has been upgraded, reconfigured & rewired to suit the CR-4P controller.

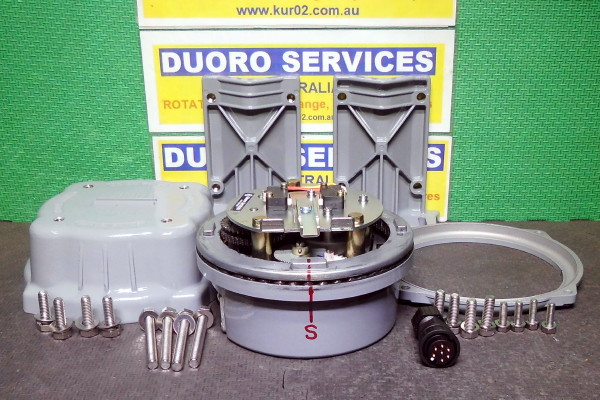

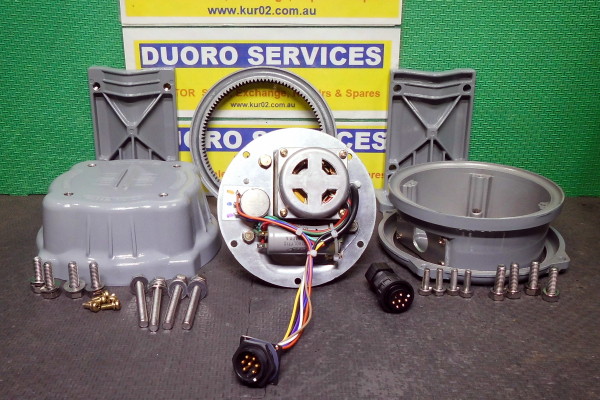

Fully striped down, cleaned & checked all parts for damage etc, Affixed the gear shafts into the lower gear chassis.

The original 4 stack final drive gear was replaced with my KD-38T solid thicker gear version. Install new limit switches with limit rotation feed back to the controller, Fully re-wired to new 7pin round LTW socket which is mounted on a new S/S cover/mounting plate.

The housings & mast clamps were Glass Bead Blasted then etched primed followed by painting in Pewter Epoxy Enamel. I install M8 RECOIL inserts into the top & bottom mast clamp mounting holes as well as into the threaded side if the mast clamps. Reassembled with new ball bearings & new grease through out. Aligned & calibrated to the CR-4P controller.

Supplied with 7 pin IP67 plug & S/S mounting/clamping hardware.

230v AC. 24 month warranty.

This unit was available for exchange. CLICK For Details.

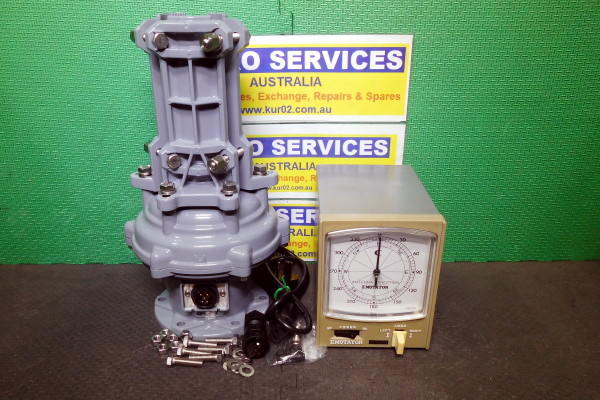

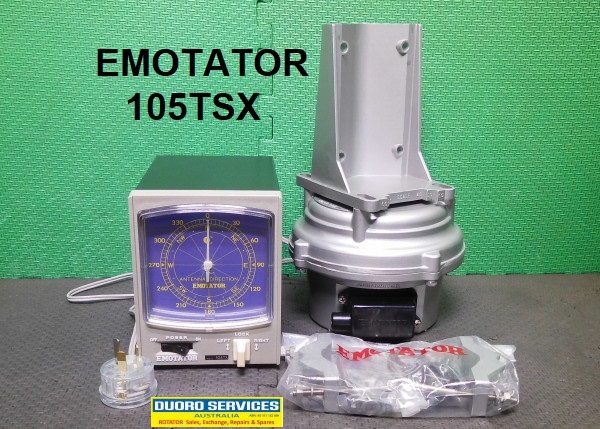

EMOTATOR



105TSX Rotator Set.

Serviced NEW OLD STOCK.



(Qty 0) (SOLD)  $AUD.



The pics below were of the actual item for sale.

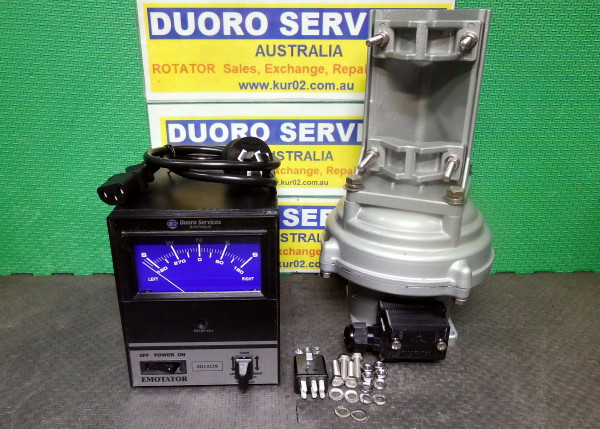

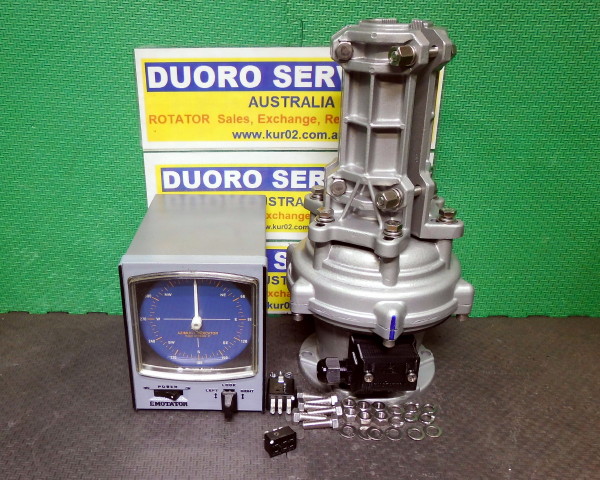

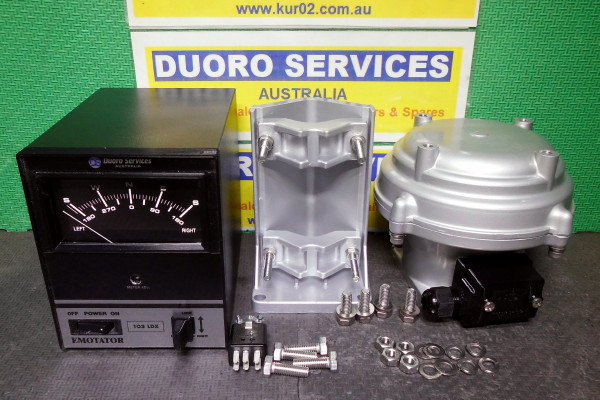

 NOS Rotator & Standard full circle controller.

Includes NOS Top #1212 Mast Clamp, Original Mounting & Clamping Hardware + Plug For Control Cable (still in their original packaging) & manual, includes original cardboard box.

Wind Area ...............1.0m Sq.

Rotation Torque ..... 5.0 Kg/m

Brake Torque ......... 30 Kg/m

Mast Size ................ 32 ~ 62mm

Rotation Time ....... .65 second 360 degree

Rotator Voltage ..... 24vAC

Controller Input.......240vAC

Rotator Weight........3.5Kg.

Rotator Colour.........Silver

Warranty...................36 month

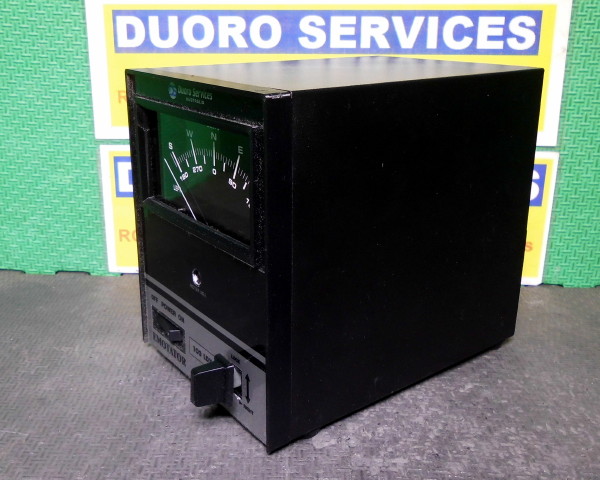

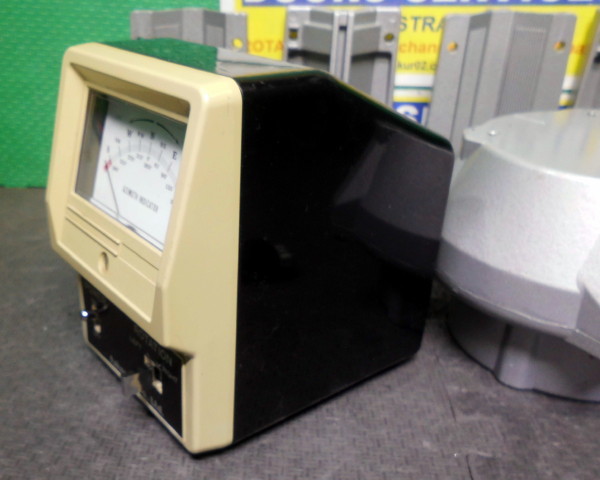

The NOS TSX Controller:-  Full circle display with momentary & lift to lock direction switch.

Checked & cleaned.

The Back Panel:- Installed new label on plate, Installed new safety power plug .

Fully tested & aligned with the NOS 105 rotator.

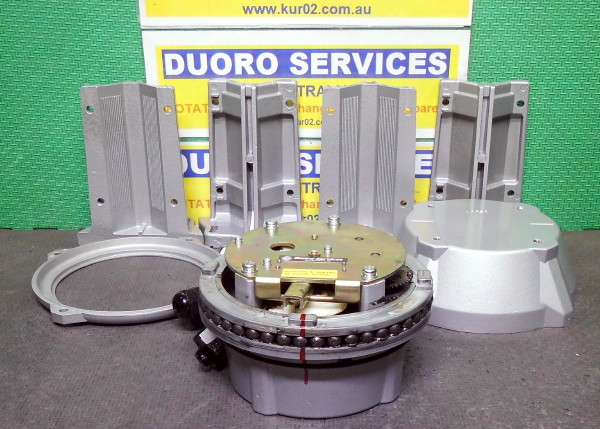

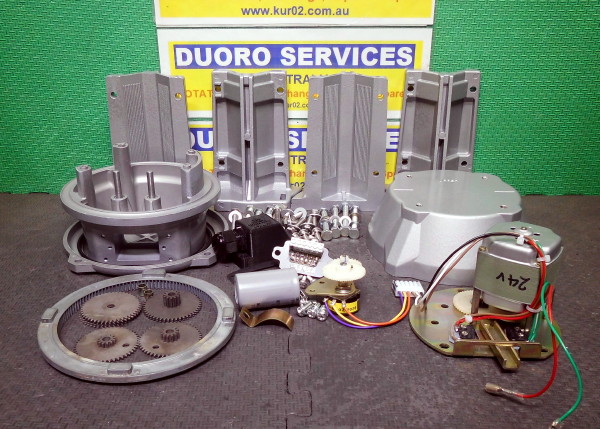

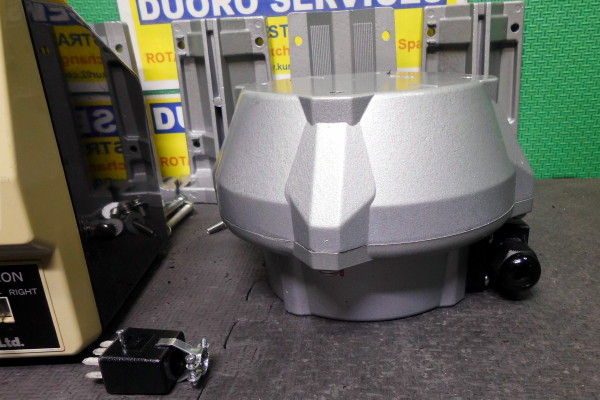

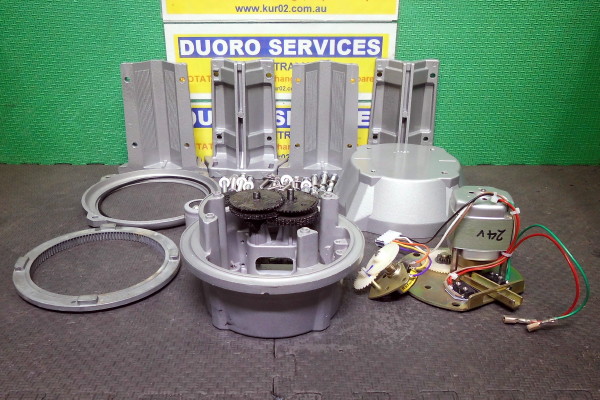

The 105 Rotator :- Has a 24v AC motor & a friction brake system mount on top of the motor.

Stripped down & fully serviced (removed all the original grease that was just starting to go off), Reassembled with new grease.

Re-aligned & calibrated to the TSX controller.

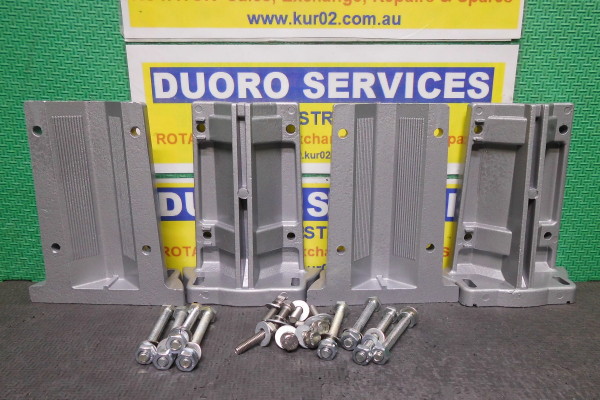

Supplied with original upper mast clamp & cabling + mounting hardware still in original packaging.



240v AC, 36 month warranty.

This unit was available for exchange. Click for DETAILS.







EMOTATOR



 502 DS7R Rotator Set

 With RS232 Remote Control



 Refurbished, Upgraded ETC.



(Qty 0) (SOLD)  $ AUD.



The pics below are of the actual item for sale.



 Includes Top Mast clamp MC1213, Plugs for control & remote cables, IEC power leads, Revised manual, 6 core control cable sold separately cut to length.



Wind Area ..............,,,,,,,,,,.....1.5m Sq.

Rotation Torque .................. 6.0 Kg/m

Brake Torque ................... ....40 Kg/m

Mast Size ..............................40 ~ 63mm. Self Centering 3 piece.

Rotation Time   .................... 66 second for 360 degree

Control cable      ...................6 core

Drive train............................. All steel reduction gearing with solid final gear

Rotator Voltage.....................100vAC.

Controller Features..............Full circle direction display with LED illumination,                                ...............................................Mom & Lock direction switch, RS232 remote

Rotator weight .....................4.8.0kg including Mast Clamp

Controller Weight ................2.6 kg

Warranty................................24 month

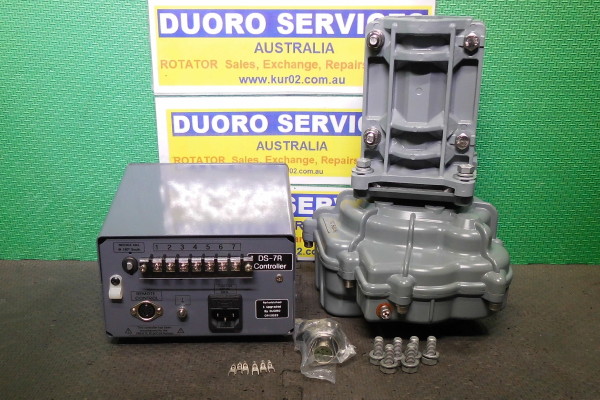

The DS7R Controller:-  Full circle display with LED illumination, momentary & lift to lock direction switch, All new DS-7R PCB with RS232 Remote output .

The Front Panel:- Has full direction display, single Left/Right  direction switch.

The Back Panel:- Installed new 6 pin Cinch socket, Fused IEC 240v socket & earth bolt + meter calibration pot, The chassis & backing plate + terminal cover were re-zinc plated.

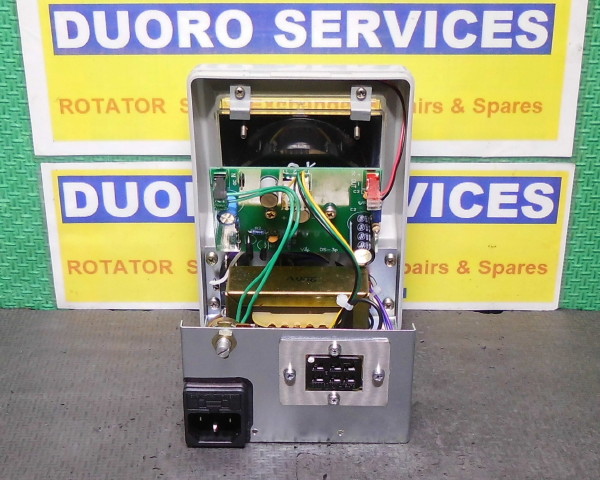

On The Inside:- All NEW DS-7R PCB With RS232 remote output also has a 12v DC out to power the LED illuminated display, Replaced the original transformer with one from a Emotator MSAX controller, Replaced the display drive belt, Refurbished the POT & display assembly, Fully re-wired.

Re-assembled, fully tested & aligned with the rotator.

Includes 6 pin Cinch plug for control cable & 5 pin DIN for the remote cable.

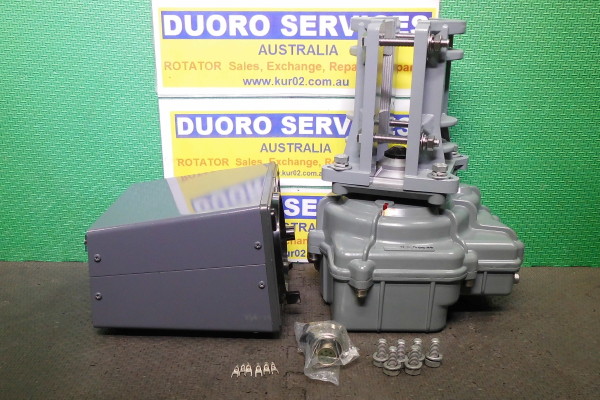

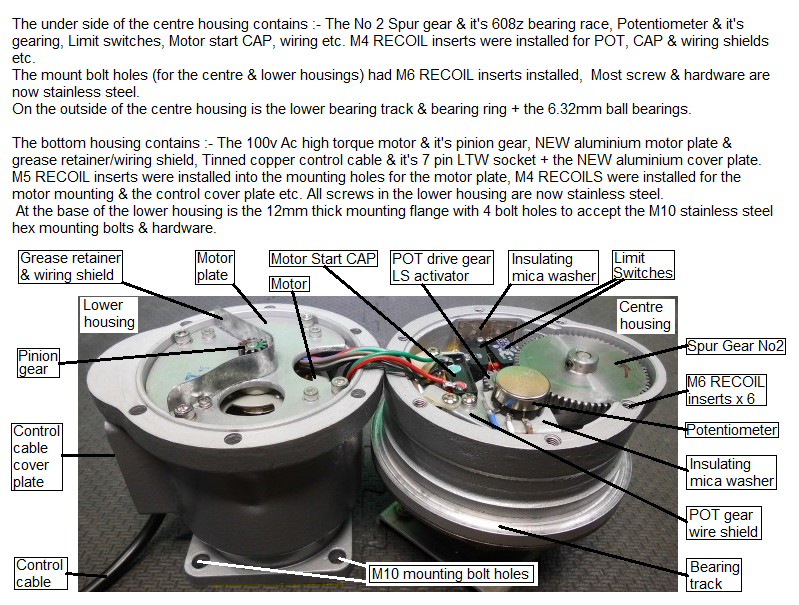

The 502 Rotator:- Has a 100v AC motor, all steel gears & a BK brake system.

Disassembled to the last nut, bolt & screw. Cleaned & checked all parts for damage.

Refurbished & upgraded the drive train, Refurbished the POT.

All housing & mast clamp assembly have been Glass Bead Blasted, etched primed then painted in Epoxy Enamel Silver paint followed a couple of coats of clear.

Replaced the original control cable plug/socket & cover with a new LTW 7 pin socket on a Stainless steel cover mounting plate, fully re-wired.

Reassembled gear assemble into the housing with new bearings grease.

Re-aligned & calibrated with controller.



240v AC, 24 month warranty.

This unit was available for exchange. Click for DETAILS.









EMOTATOR

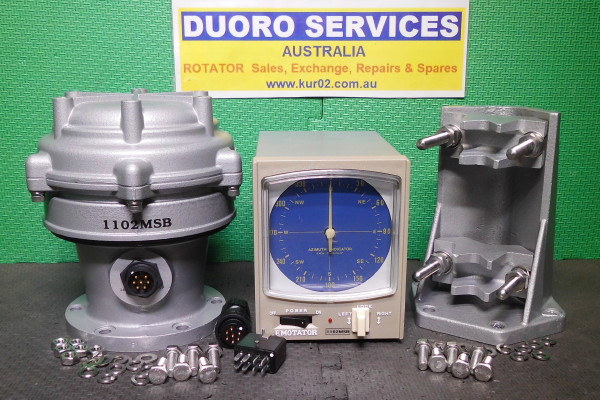

 1102MSB Rotator Set.

Refurbished & Upgraded etc.



(Qty 1) (FOR SALE)  $950.00AUD.



The pics below were of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb

View Part 1 of the 1102MSB Build on YouTube.

View Parts 2 of the 1102MSB build on YouTube.

View the M-49ss gear upgrade video on my YouTube channel.





1102 Rotator With A Standard Full Circle Display Controller.

Includes Top Mast Clamp, Plugs For Control Cable + revised manual .



Wind Area ................2.5m Sq.

Rotation Torque ..... 8.0 Kg/m

Brake Torque ......... 100 Kg/m

Mast Size ................ 45 ~ 60mm

Rotation Time ........ 80 second 360 degree

Rotator Voltage ..... 100vAC

Rotator Weight........6.2Kg including mast clamp.

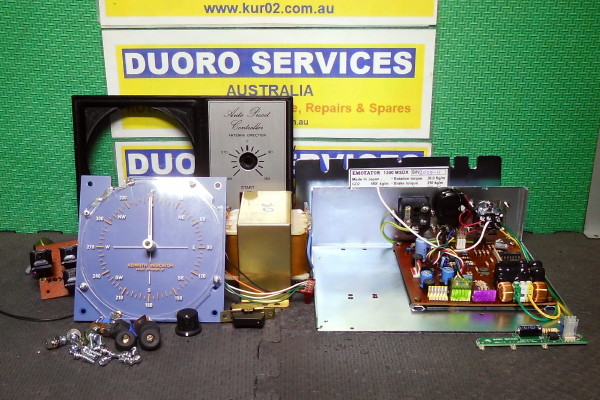

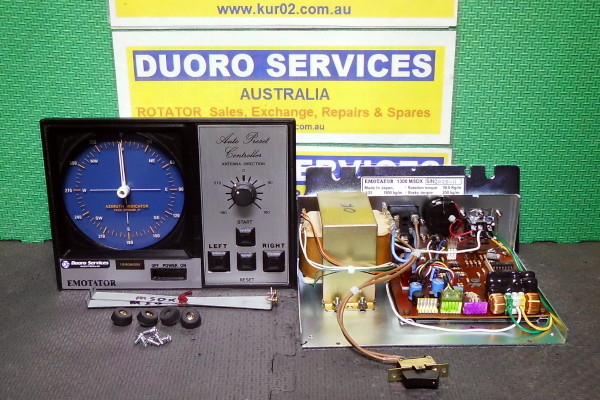

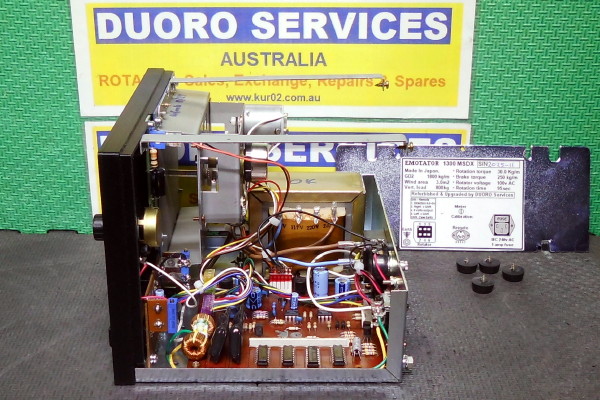

The MSB Controller:-  Full Circle Display with a BDS-35 brake delay PCB.

Fully disassembled, cleaned & prepared the chassis for new upgraded parts. Chassis was then re-zinc plated.

The Front panel:- NOS Front panel & direction switch knob, installed a 3mm Red LED for brake action.

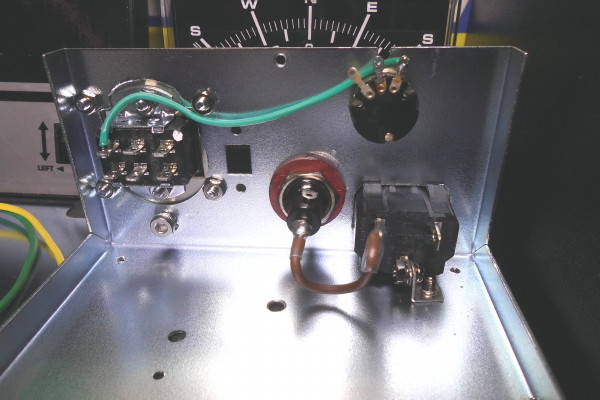

The Back Panel:- Installed a new 8 pin Cinch socket & lased cut + label etched cover/mounting plate, New fused IEC 240v socket & earth bolt.

On the Inside:- Replaced the original degraded direction display with a solid plastic version which is   illuminated by 4 x 3mm white LED's driven by one of my upgraded yLED-ac PCB's, Installed a New Australian made multi tap transformer, Also installed on of my BDS-35 brake delay PCB's, Fully rewired.

Fully tested & aligned with the 1102 rotator.

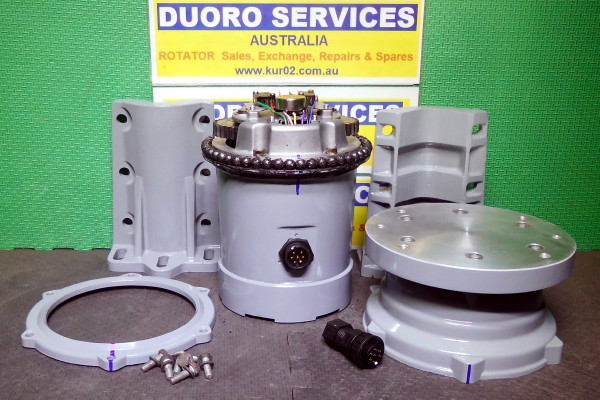

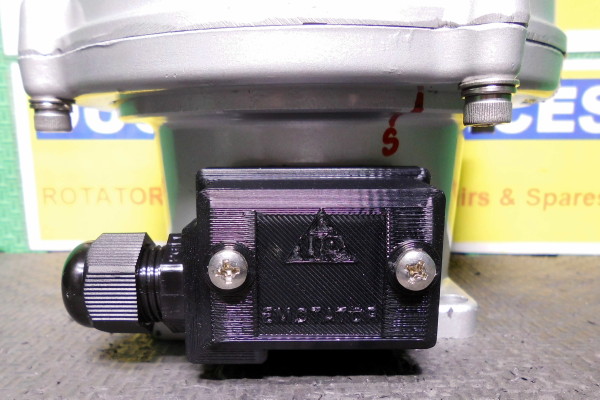

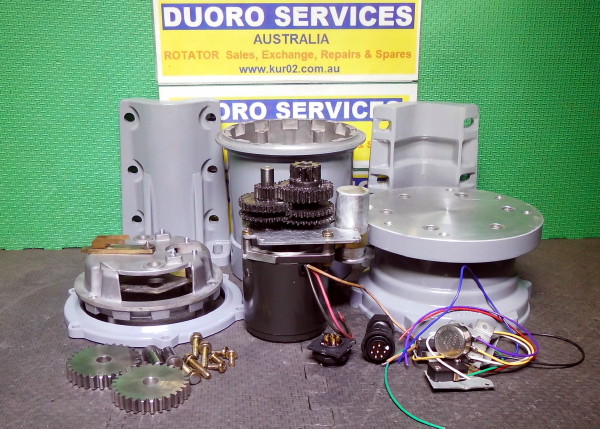

The 1102 Rotator :- Has solenoid activated twin wedge brake system.

Disassembled to the last nut, bolt & screw. Cleaned & checked all parts for damage.

The 4th gear in the drive train was replaced with a new thicker stainless steel version, as the original version is a weak point in these rotators. This new gear (p/n M-49ss) was manufactured for me by ASM Services using laser sintered metal 3D printing process.

All housing & the mast bracket _ clamps were Glass Bead Blasted, followed by Etch Priming then finished off with a top coat epoxy Enamel Silver Hammer Tone.

Most steel brackets & plates have been re-zinc plated, All gear shafts have been affixed to into the main gear chassis. Replaced the control cable socket with New 7 pin LTW version.

The gears were aligned & shimmed then re-assembled into the refurbished housings with new bearings & new grease through out.

Re-aligned & calibrated to the MSB controller.



240v AC, 24 month warranty.

This unit is available for exchange. Click for DETAILS.

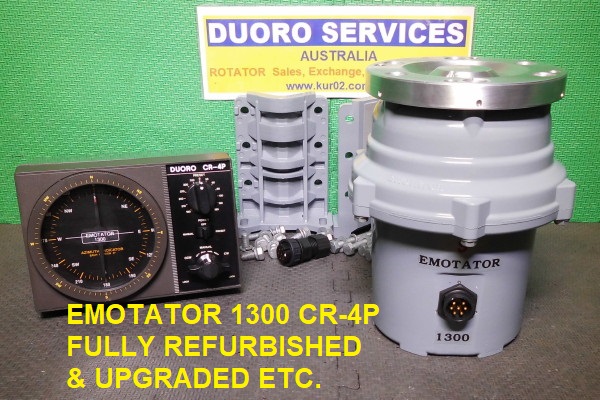

EMOTATOR



1300 CR-4P Rotator Set.

Refurbished & Upgraded etc.



(Qty 0) (SOLD)  $ AUD.



The pics below were of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb

View the 1300 CR-4P video part 1 on my YouTube channel

View the 1300 CR-4P video part 2 on my YouTube channel

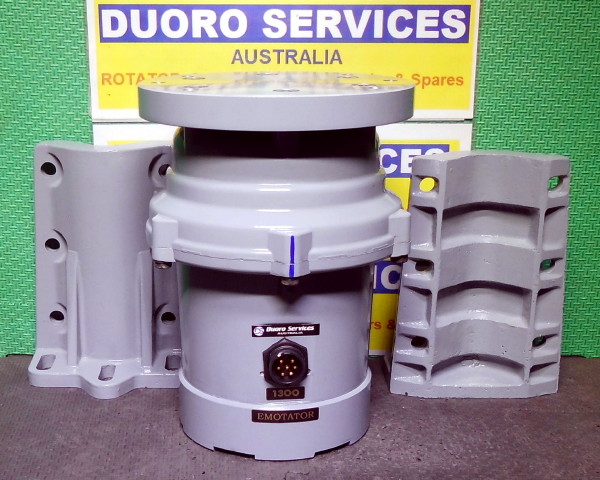

1300 Rotator with CR-4P Preset Full Circle Display Controller.

Includes Top Mast Clamp, Plug For Control Cable + revised manual .



Wind Area ................3.0m Sq.

Rotation Torque ..... 30.0 Kg/m

Brake Torque ......... 250 Kg/m

Mast Size ................ 48 ~ 63mm

Rotation Time ........ 70 second 360 degree

Control Cable...........7 core

Rotator Voltage ..... 25vAC

Rotator Weight........5.5Kg including mast clamp.



The CR-4P Controller:- Full Circle Display with LED illumination, Momentary + lock direction switches + Dial prese control.

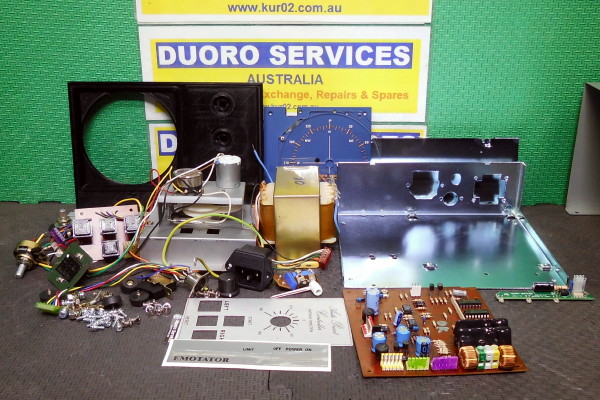

Fully disassembled, cleaned & prepared rear panel for upgrades.

The Front panel:- Replaced compass direction display with late version, Installed two small LED's into the end of the needle, Blue for direction & red for limit action all controlled by my New yLED-dc+Limit PCB.

The Back Panel:- Was stripped down re-painted & then fully re-labelled,  Installed a new 7 way terminal barrier, New fused IEC 240v socket & earth bolt + Output put voltage select terminal.

On the Inside:- Installed the new yLED-dc+Limt PCB, Refurbished the display POT as well as the display gear assembly, Upgraded the display illumination with 2 x 5mm LED's, Installed 10 turn adjustment POT's & terminal blocks to the PCB's, Re-configured wiring.

Fully tested & aligned with the 1105 rotator.

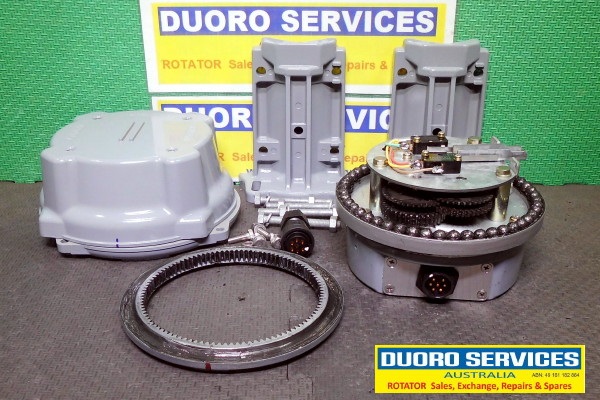

The 1300 Rotator :- Has twin solid final drive gears & BK spring brake system.

Disassembled to the last nut, bolt & screw. Cleaned & checked all parts for damage.

All housing & the New Create mast bracket were Glass Bead Blasted, followed by Etch Priming then finished off with a top coat epoxy Enamel Pewter.

Replaced gear shafts with upgraded versions & affixed them to into the lower gear chassis. Replaced the limit switches, Installed new 5 turn 500 ohm POT with new drive gear & stainless steel mounting bracket, Replaced the control cable socket with New 7 pin LTW version & S/S cover plate.

The gears were aligned & shimmed then re-assembled into the refurbished housings with new bearings & new grease through out.

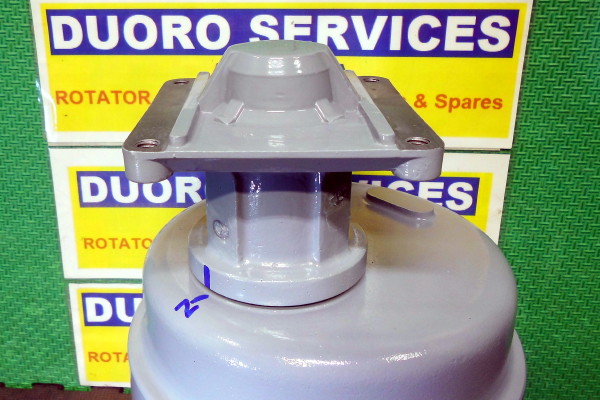

Install new upgraded Create MC-2 mast bracket assembly onto the top housing, includes all GAL H/W. .

Re-aligned & calibrated to the CR-4P controller.



240v AC, 24 month warranty.

This unit was available for exchange. Click for DETAILS.







EMOTATOR

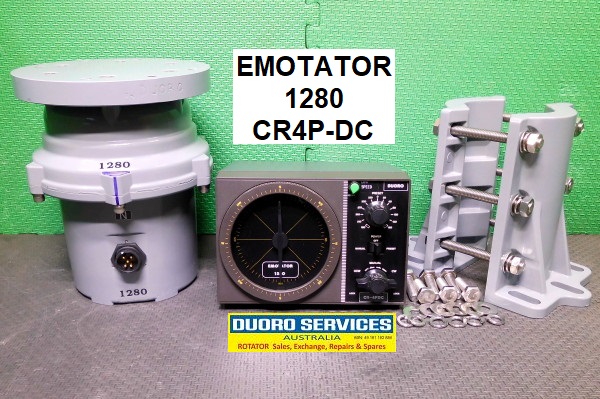

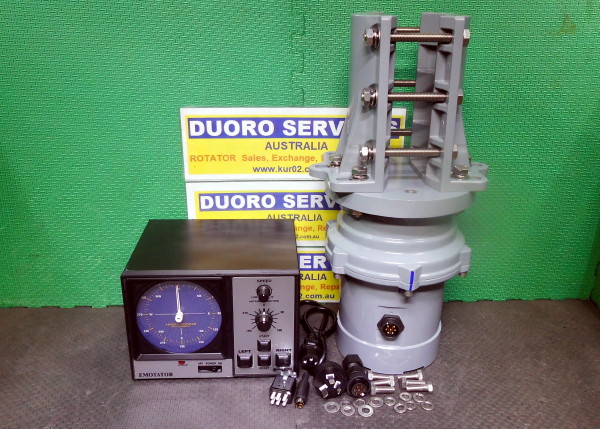

1280 CR-4P-DC Rotator Set.

Refurbished & Upgraded etc.



(Qty 0) (SOLD ) $AUD.

ANOTHER VERSION SOON



The pics below were of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb



View the 1280 CR4P-DC video on YouTube

View the Gearing & New Chassis Video on YouTube

View the New FX44s pinion Video on YouTube

View the MC1219AP Adaptor Plate video on YouTube

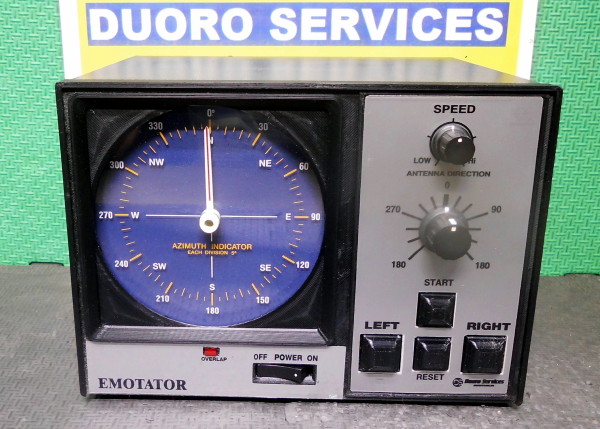

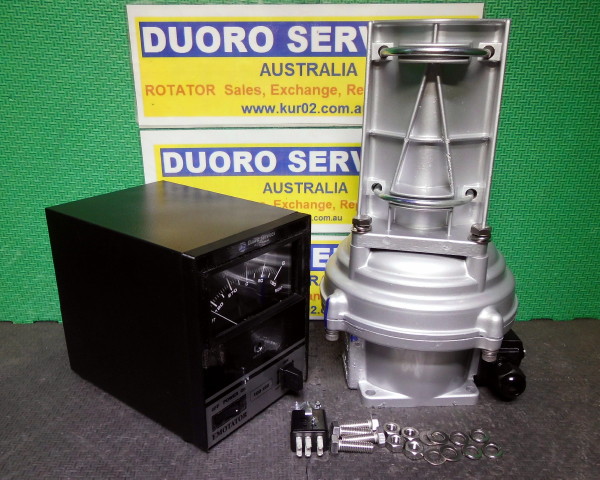

Rotator with Dial PreSet & Speed CR-4P-DC Controller, Refurbished & Upgraded.

Includes New MC-1219+AP Top Mast Clamp & Adaptor Plate Assembly, Plugs for control cable & New manual.

Wind Area .............. 3.0 m sq.

Brake Torque ......... 250 Kg/m

Rotation Torque .... 18 ~ 30 Kg/m

Mast size ............... 50 ~ 80mm

Rotation  Time .....  80 ~ 170 seconds 360 degrees

Rotator Voltage ....  24vDC.



The CR4P-DC Controller:- Has been full circle display, Dial PreSet & Speed control + momentary or lock direction switch.

Completely disassembled, cleaned & prepared chassis for new DC upgrade parts.

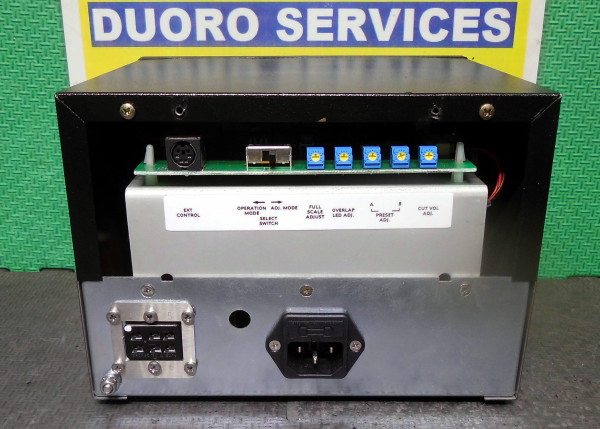

The Back Panel:- Installed dual output terminals 1 x 8way screw terminal barrier & 8 pin Cinch chassis socket, also installed a new fused IEC socket & earth bolt.

On the inside:- Upgraded display illumination with LED's including illuminated direction needle. The original transformer was replaced with two separate versions 1 x 80 VA 23v all new Australian made version for direction & a new 12v version for the display etc. Also installed DC supply & a PWM motor speed controller. Upgraded the direction switches now also controlling the Preset relays

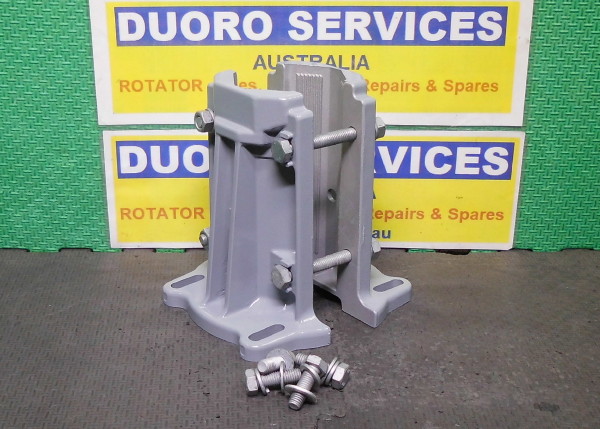

The MC-1219+AP Mast Clamp & Adaptor plate Assembly.

All aluminium adaptor plate & refurbished MC-1219 mast clamp. The new adaptor plate is made from 178mm dia. solid aluminium bar cut to 20mm thick then machined with 6 x counter bored holes for mounting to the rotator with 6 x M10 threaded holes for the H/D MC-1219 mast clamp. Both the adaptor plate & mast clamps glass bean blasted, etched primed & painted in epoxy enamel paint (Pewter). Includes all stainless steel M8 & M10 clamping/mounting hardware.

The 1280 Rotator:- Twin solid final drives onto housing & driven by a (DME60SB) 24v DC motor (this motor is one size larger than what is in the Yaesu G-2800 rotator).



This rotator is an upgraded 1200 with new re-design 10mm thick aluminium gear/motor plate with New longer 12mm gear shafts that are fixed solid into the new gear/motor plate, the gear drive train now has an extra reduction gear in line to slow the rotator down (now over 7,000:1 ratio), giving more rotation & brake torque. Also the motor's aluminium pinion gear was replaced with my all new steel version that was Laser Sintered Metal 3D Printed for me locally.



Completely disassembled & cleaned etc, checked all parts for damage. All gears are in very good condition. I order to add an extra gear into the drive train I replaced the first 3 gears with new versions which have a narrower set plus the No 1 gear was cut down to the narrower set. The new longer 12mm gear shafts had C-clip grooves cut into them, to hold the two top heavy gear off the faster moving lower gears, this also reduces the load on the motor letting these spin free. Replaced the original control cable socket with a new 5 pin IP67 version. The housings were Glass Bead Blasted, etch primed followed by painting in epoxy enamel (pewter).

Reassembled with new bearing & new grease through out. Re-aligned & calibrated with the controller.

240v AC. 24 month warranty.

This unit was available for exchange. CLICK for DETAILS







FUKNER FU-400



Rotator Set

(Qty 0) (SOLD)  $ AUD





The pics below are of the actual item for sale.

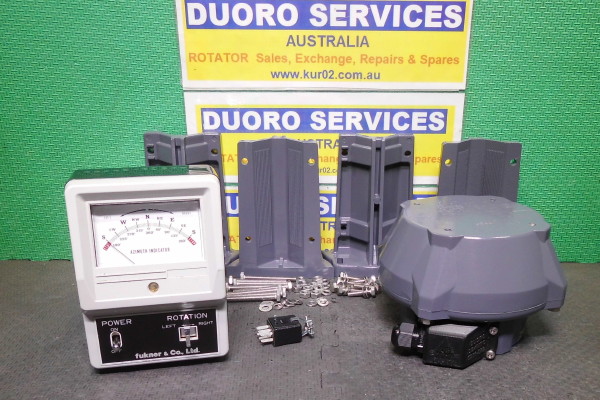

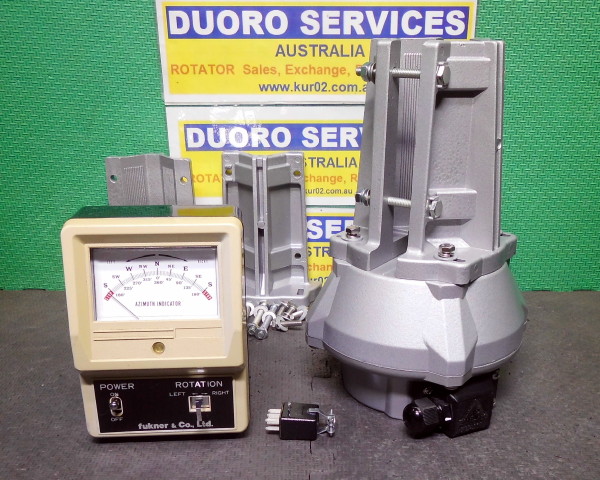

Rotator Set with Panel Metered Controller & rotator with top mast clamp, hardware, plug for control cable & revised manual.



Wind Area .............. 0.50m Sq.

Rotation Torque .....5.5 Kg/m

Brake Torque ......... 15.0 Kg/m

Mast Size ............... 38~50mm

Rotation Time ........ 60 second 360 degree

Control Cable .........6 core

Rotator Voltage ......24vAC.

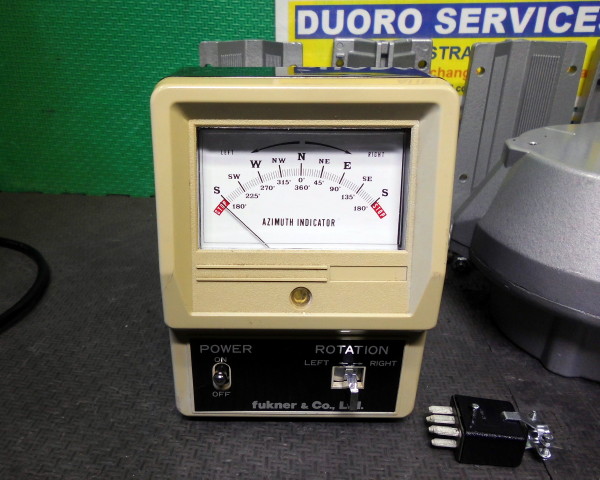

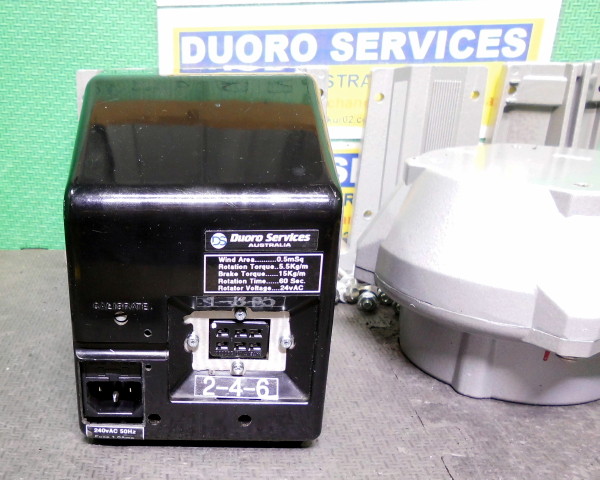

The Panel metered Controller :- Upgraded with new PCB & output socket.

This controller has panel meter direction display & a single 2 way paddle style direction switch.

Completely strip down, the steel chassis was cleaned & upgraded for the IEC & output sockets.

The outer housing was cut out to suit the chassis upgrades.

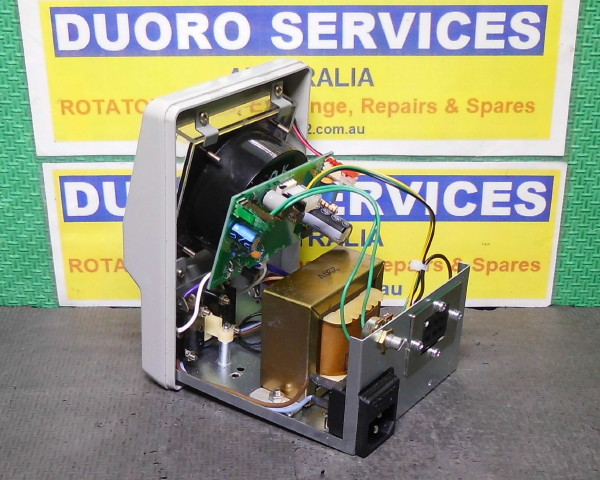

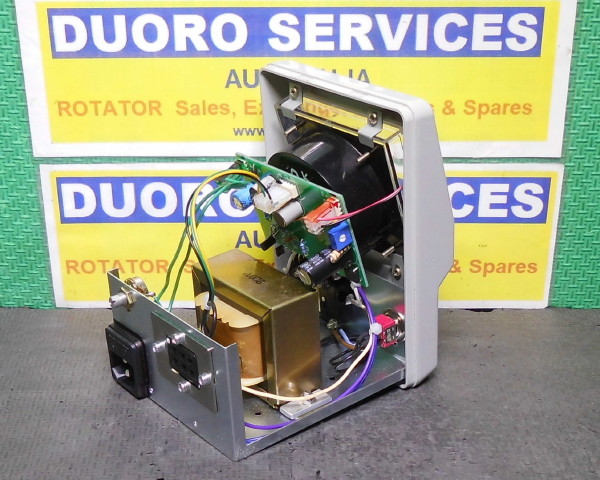

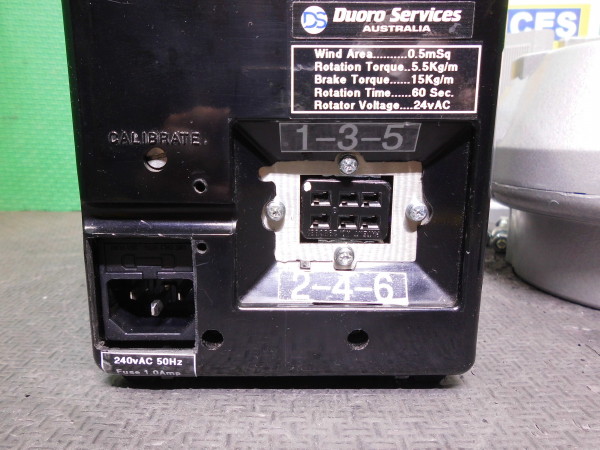

Features:- New PCB with LED power supply on board, illuminated with LED strip light, New Fused IEC socket on back panel along with a 6 pin Cinch socket & S/S mounting plate, Calibration POT.

Supplied with new 6 pin Cinch plug.

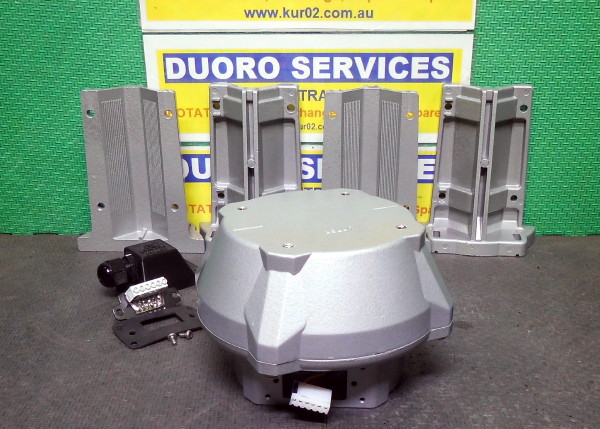

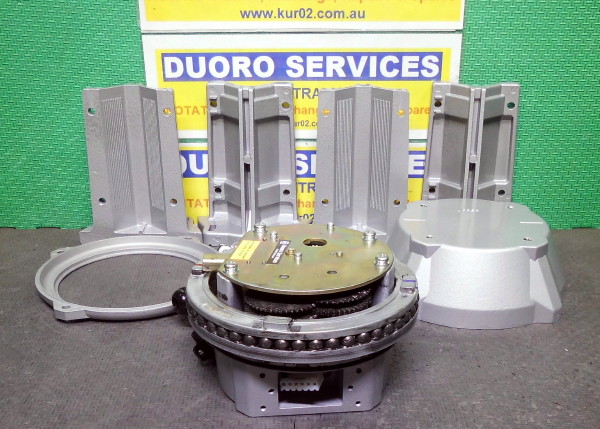

The FU-400 Rotator :- Has a friction brake on the motor, has been fully refurbished & upgraded.

New parts are:- 1/4" zinc plated clamping & mounting hardware, Limit micro switches, Motor start CAP, Bearings, Wiring, M4 screw in terminal board, etc .

The motor start CAP is now in the rotator & limit switches have been installed which means you can still use the standard 6 core control cable.

Installed new ball bearings & reassembled with new grease through out.

Aligned & Calibrated with the controller.

Includes top mast clamp & S/S mounting hardware.



240vAC.  12 month warranty (extendable to 24 month for an extra $100.00).

This unit was available for exchange. CLICK For Details.

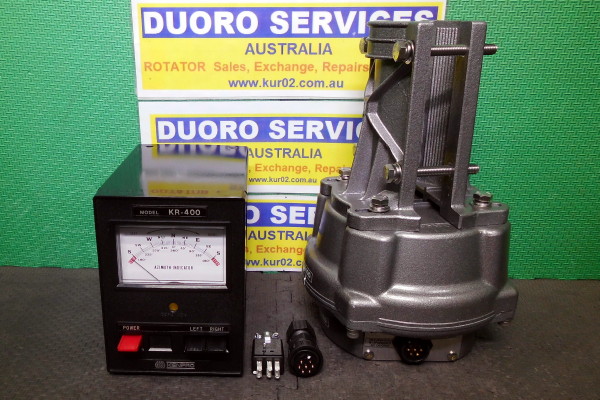

KENPRO



KR-400-R Rotator Set.

Basic Refurbishment & Upgrade.



(Qty 0) (SOLD)  $ AUD.



The pics below are of the actual item for sale.





 SPECIFICATIONS

 Antenna Wind Area (Pole)..................     0.5m Sq x 0.5m

 Antenna Wind Area (Tower)...............     1.0m Sq. With thrust bearing

 Rotation Torque ………………………      4 kg/m

 Brake Torque……………………………    15 kg/m

 Vertical Load Max………………………    200 kg

 Drive Train………………………………     Reduction gears.

 Brake System……………………………    Friction Disc Brake

 Rotation Range…………………………    365 degrees

 Rotation Time (360 degrees)…………     60 seconds @ 50 Hz.

 Rotation End Stops............................      Mechanical & electrical

 Maximum Continuous Duty..............       3 minutes

 Control Cable……………………………    6 wire

 Mast Size………………………………...   38~63mm dia.

 Rotator Voltage…………………………    24 vAC

 Rotator Dimensions & Weight……....    180 x 270mm (inc Top mast clamp, 4.5kg

 Controller features..............................    360 degree display, LED illumination

 Controller Mains Voltage…………….      220 v AC 50Hz

 Power Consumption………………….      40 VA

 Controller Dimensions & Weight…..      110(W) x 154(H) x 185(D)mm, 1.9 kg



 The Controller: - Refurbished & Upgraded.

Completely disassembled then cleaned, upgraded.

Replaced old globe illumination with LED’s & installed their power supply onto the main PCB.

On the rear panel I installed an earth bolt.

Moved the motor start capacitor to the rotator.

Re-wired, Re-calibrated & aligned with rotator.



 The Rotator: - Refurbished & Upgraded.

Completely disassembled, cleaned & checked all parts for damage etc. Upgraded the 3 stack final drive gear set with KR-600 4 stack gears & bush set, this gives more surface area contact onto the ring gear & lessen the chance of damaging the hard-to-get ring gear. Replaced the ball bearings, installed the motor capacitor & limit switches.

Upgraded brake assembly etc. Fully re-wired.

Housings are as I purchased the rotator, painted in gloss black, in very good condition. Re-assembled with new ball bearings + new grease throughout. Re-aligned & calibrated to the controller.

Supplied with new mast clamps & Gal clamping/mounting hardware, also new stainless steel lower mounting bolts, Updated user manual.

Re-calibrated & aligned with the controller.

 24 month warranty.

 This unit was available for exchange. CLICK For Details.

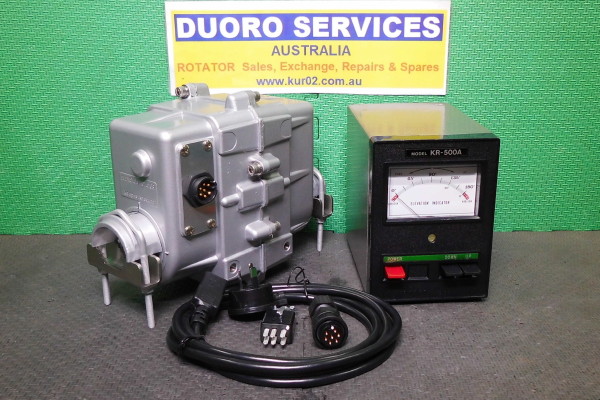

KENPRO



KR-500A_DS-3 Rotator Set.

Refurbished & Upgraded.

ELEVATION Rotator & Standard Controller,

With A Choice Of Mounting Hardware.



(Qty 1) (FOR SALE), $600.00AUD.



Pics below are of the actual item for sale.



Wind Area ............... 0.80 m sq.

Rotation Torque ..... 4.0 kg/m

Brake Torque ......... 20 kg/m

Rotation Stops........Mechanical & Electrical

Boom Size...............32 ~ 43

Mast Size ................38 ~ 63mm

Rotation Time ........74 seconds 180 degrees

Rotator Voltage ..... 24v AC

Rotator Weight........3.3kg



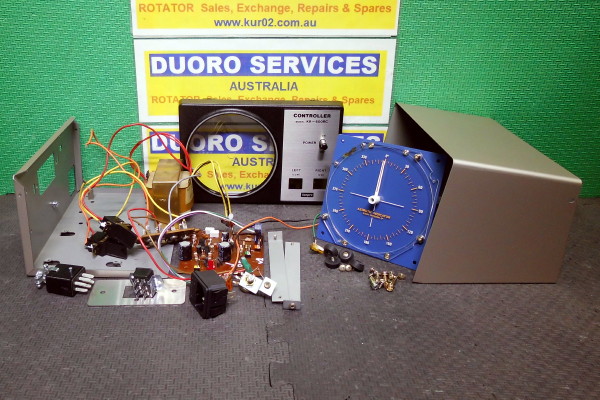

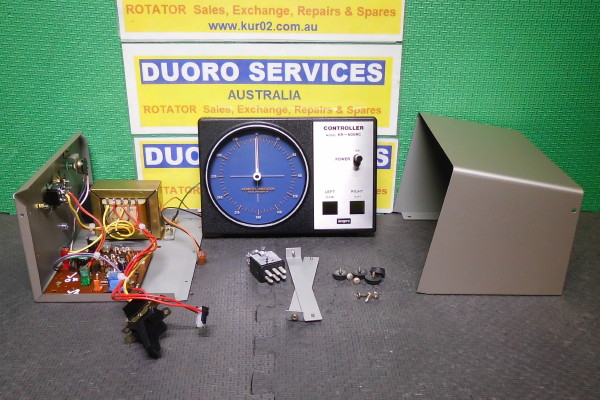

The Standard Panel metered Controller:- .

Disassembled, cleaned & prep chassis for upgrades etc, Chassis was the zinc plated.

The Back Panel:- Installed a new 6 pin Cinch socket & laser cut S/S cover/mounting plate, New fused IEC 240v socket & earth bolt.

On The Inside:- Replaced original PCB with one of my DS-3p version, installed LED display illumination which is powered by the DS-3p PCB.

Moved the motor start CAP to the rotator & rewired etc

Re-assembled, fully tested & aligned with the KR-500A rotator.

Supplied with IEC power lead & 6 pin Cinch plug for control cable inc. revised manual

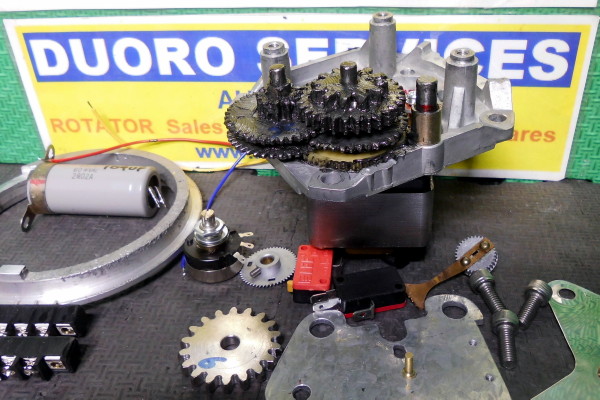

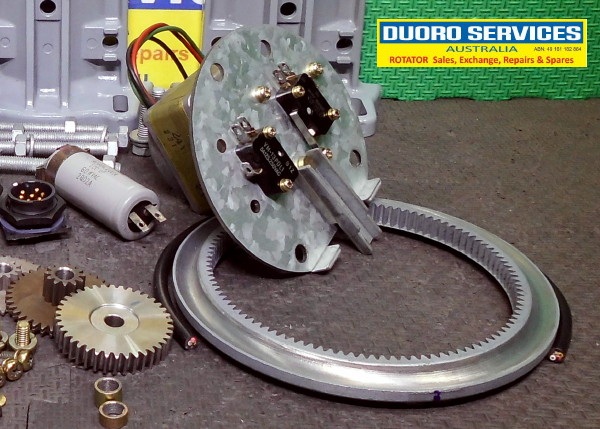

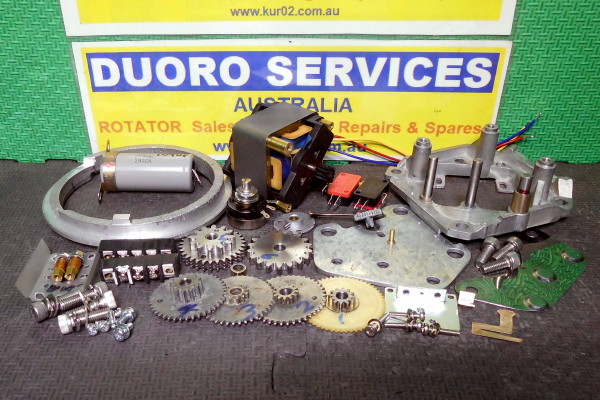

The KR-500A Rotator :- Has a 24v AC motor & a lift disc brake mount on top of the motor.

   "You have a choice of mount hardware" :-

 (A) Is for mounting to the side of a mast, inc. Long M8 studs & hardware + 4 S/S mast clamps.

 (B) Is for mounting direct to top of a suitable rotator, inc. Aluminium "L" brackets & hardware.

Disassembled to the last nut, bolt & screw. Cleaned & checked all parts for damage.

Replaced damaged housings with NEW, Installed M8 RECOIL inserts into mounting holes.

 Installed the motor start CAP & NEW limit switches, Refurbished POT. Fully rewired into a NEW LTW 7 pin Chassis Socket .

The Hollow Axle was Glass Bead Blasted by IMPACT GLASS BEAD, the Etch primed & painted in silver then a couple of coats of clear (to match the new housings).

Affixed the gear shafts into the lower gear chassis, Installed freshly greased gears into gear chassis then assembled it & the hollow axle into the NEW housings with the new bearings & new grease through out.

Re-aligned & calibrated with the controller.

Supplied with stainless steel hardware & LTW 7 pin plug.



 24 month warranty.

This unit is available for exchange. CLICK For Details.







KENPRO & DUORO



KR450-DS7 Rotator Set.

Refurbished & Upgraded.



(Qty 0) (SOLD)  $ AUD.



The pics below are of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb



CLICK TO View Controller video on YouTube

CLICK TO VIEW Rotator video on YouTube



 SPECIFICATIONS

 Antenna Wind Area (Pole)..................     0.5m Sq x 0.5m

 Antenna Wind Area (Tower)...............     1.0m Sq. With thrust bearing

 Rotation Torque ………………………      6 kg/m

 Brake Torque……………………………    30 kg/m

 Vertical Load Max………………………    100 kg

 Drive Train………………………………      Reduction gears.

 Brake System……………………………    BK Spring & drum

 Rotation Range…………………………    450 degrees

 Rotation Time (360 degrees)…………     63 seconds @ 50 Hz.

 Rotation End Stops............................      Mechanical & electrical

 Maximum Continuous Duty..............       3 minutes

 Control Cable……………………………    6 wire

 Mast Size………………………………...    50mm dia (elliptical rotation 38~60mm dia.)

 Rotator Voltage…………………………    24 vAC

 Rotator Dimensions & Weight……....    186 x 263mm, 3.5kg

 Controller features..............................    360 degree display, LED illumination

                                                                   Mom. & lock direction switch, RS232 output

 Controller Mains Voltage…………….      240 v AC 50Hz

 Power Consumption………………….      80 VA

 Controller Dimensions & Weight…..     198(W) x 140(H) x 175(D)mm, 3.5 kg



 The Controller: - Refurbished & Upgraded.

Completely disassembled then cleaned, upgraded & moded then chassis was zinc plates.

Installed:- My New DS-7R PCB with RS232 output, Replaced the original globe illumination with a yLED-dc PCB, Re-used original transformer & added extra smal one.

Installed new display Bezel & clean lens, New direction display & backing etc, Replaced original needle with early white version.

On the rear panel I replaced the 6 pin socket with a 6 pin Cinch socket, mounted on a laser cut & etched stainless steel cover/mounting plate. Also installed a 240v fused IEC socket & earth bolt, Plus the RS232 remote DIN socket, also installed all new labeling.

Fully re-wired. Re-calibrated & aligned with rotator.

Supplied with a new 6 pin CINCH Plug, IEC power lead & Revisied manual.



 The Rotator: - Refurbished & upgraded etc.

Completely disassembled, cleaned & checked all parts for damage etc, Refurbished motor..

Installed limit switches & rewired, Replaced the ball bearings. Housings have been Glass bead blasted then etched primed then sprayed in Epoxy Enamel (Pewter). Re-assembled with new grease through out.

Re-aligned & calibrated to the controller.

Supplied with new stainless steel clamping & mounting hardware, 6 pin round plug.

 24 month warranty.

 This unit was available for exchange. CLICK For Details.









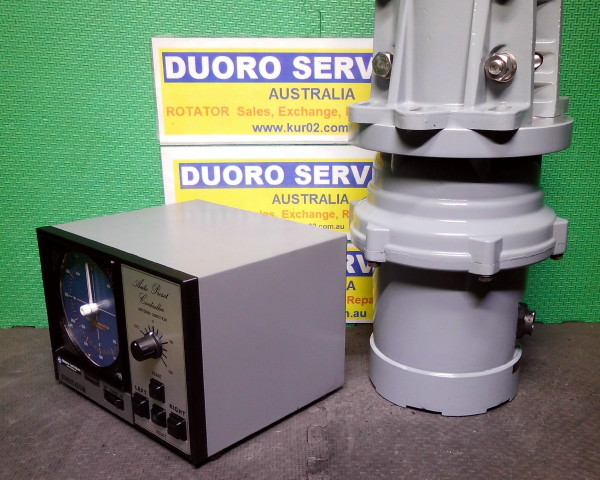

KENPRO & DUORO

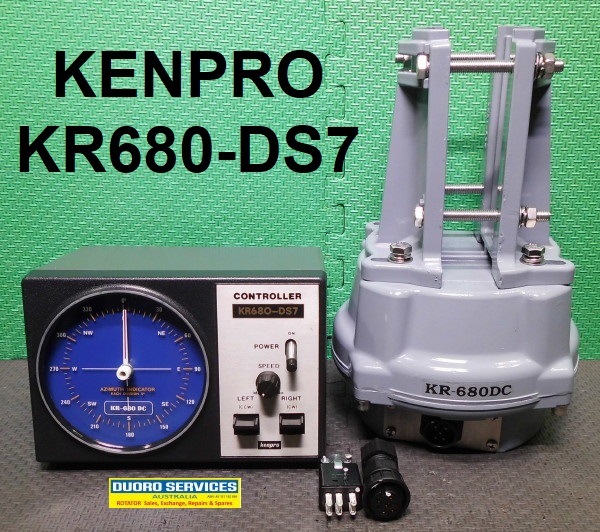

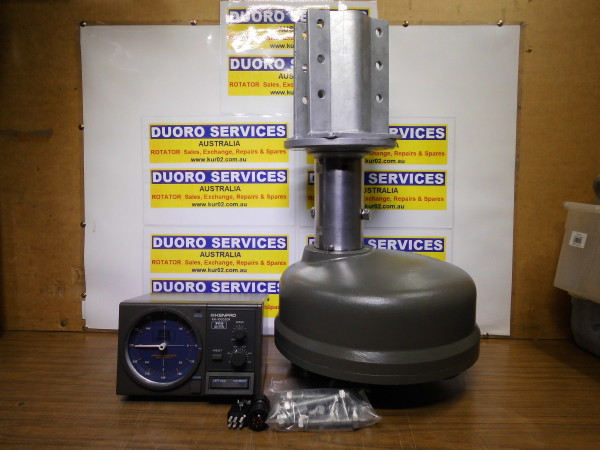

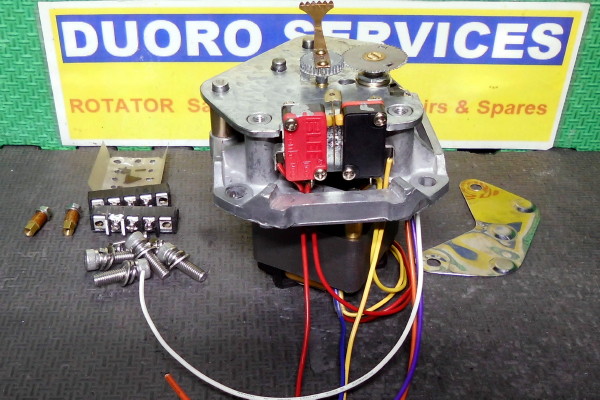

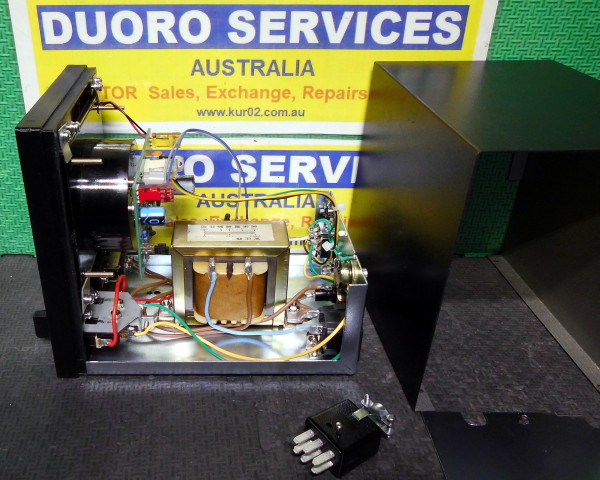

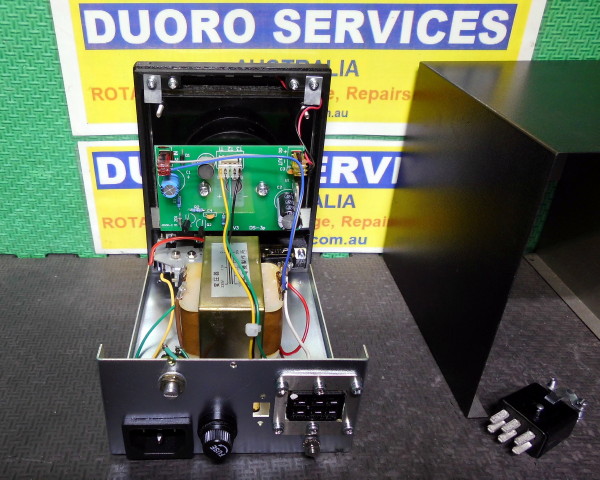

KR680-DS7 Rotator Set.

Refurbished & Upgraded.



(Qty 0) (SOLD)  $ AUD.



The pics below are of the actual item for sale.





youtube-logo-full_color100.jpg - 5.00 Kb

View the KR-680-DS7 Controller video on YouTube

View the KR-680DC Rotator video on YouTube

View the KD-38T Solid Drive Gear video on YouTube



The Kenpro/Duoro KR-680-DS7 Controller, has DC Dial Speed Control via PWM PCB & also includes one of my all new DS-7 DC PCB with RS232 remote output.

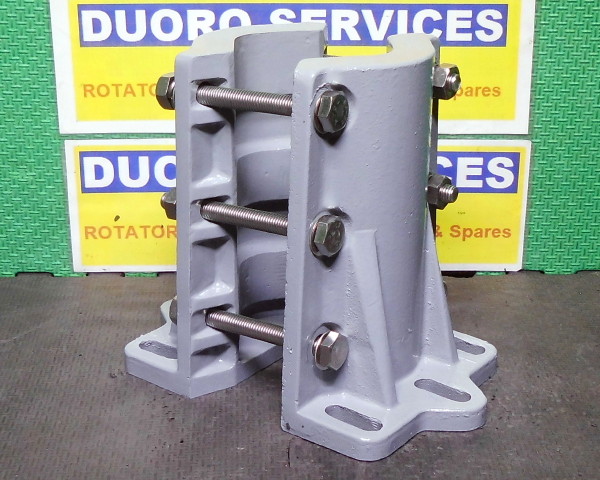

KENPRO KR-680DC Rotator has been upgraded into a 24vDC configuration with top mast clamps +  Revisied manual, inc plugs for control cable.

Control cable is 5 core. Control cable NOT included. I do have HD 5 core cable available see rotator spares page.



Wind Area ............... 1.8 m sq.

Rotation Torque ..... 5.0~11.0 kg/m

Brake Torque ......... 50 kg/m

Mast Size ................ 38 ~ 63mm

Rotation Time ........ 50 ~ 120 seconds 360 degrees

Rotation Angle ........355 degrees

Control Cable..........5 core

Rotator Voltage ..... 24vDC.

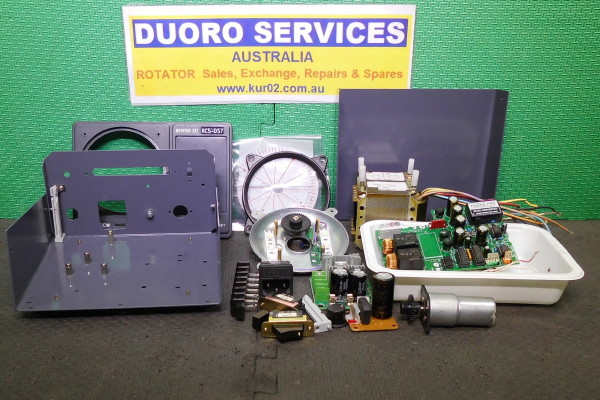

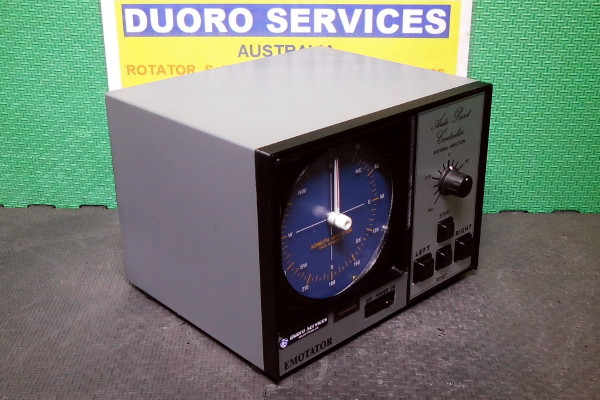

The KR-680-DS-7 Controller :-Refurbish & upgraded etc.

Completely disassembled then cleaned, upgraded & moded, then the housing & base chassis was painted.

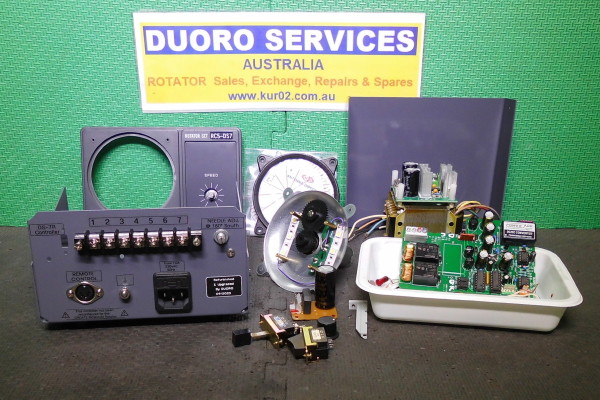

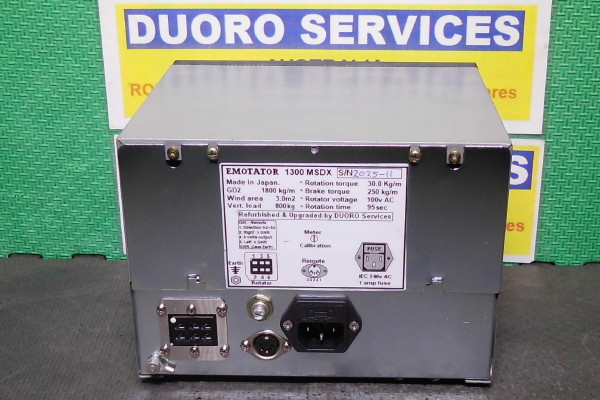

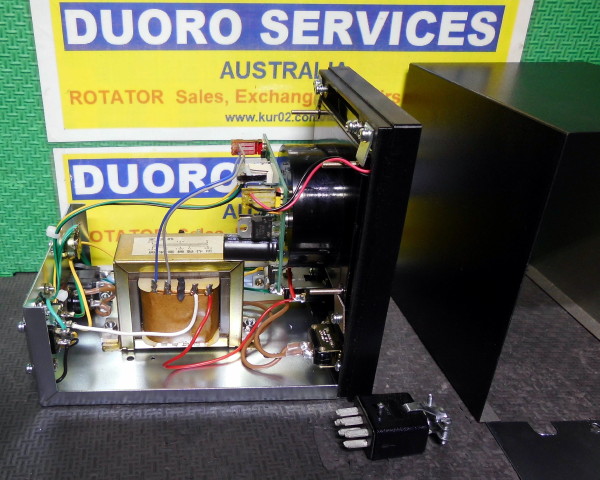

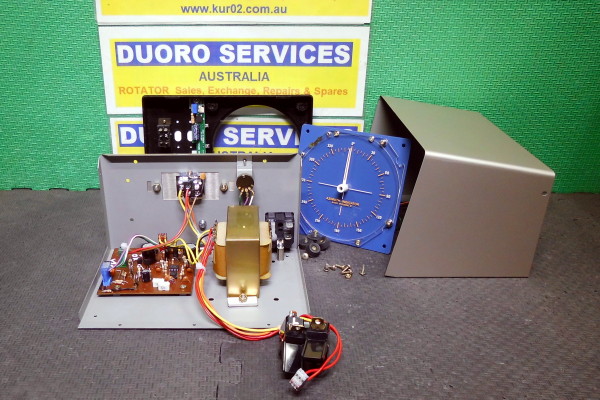

Installed:- My NEW DS-7R PCB with RS232 output, PWM DC speed control with dial control on the front panel, New power PCB, Replaced original globe illumination with my new yLED-dc-XL-A/C LED illumination PCB, Replaced then original transformer with one from a Emotator 1200FX controller.

On the rear:- I replaced the original screw terminal board with a NEW 6pin CINCH socket mounted on a etched S/S mounting/cover plate, Also installed a new fused IEC 240v socket & earth bolt plus the RS232 remote DIN socket. Fully re-wired. Re-calibrated & aligned to the KR-680DC rotator.

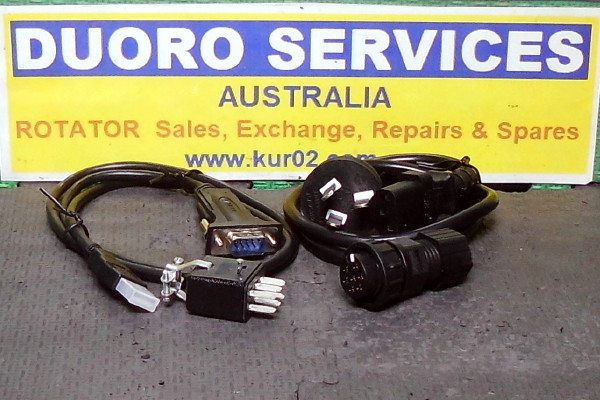

Includes NEW 6 pin CINCH plug & IEC power lead

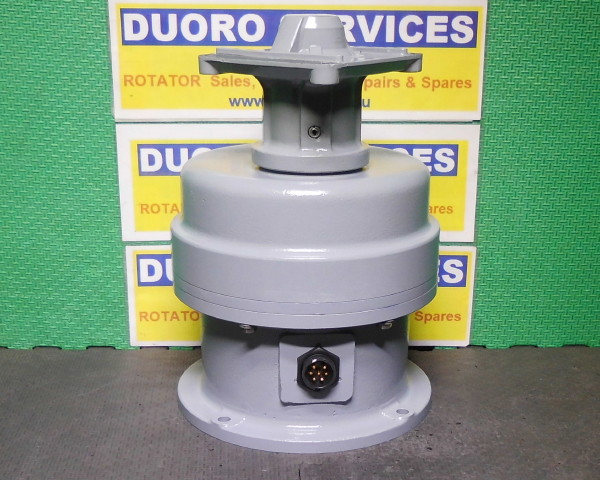

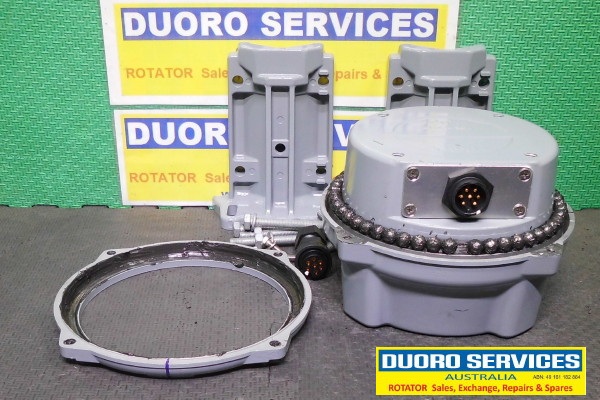

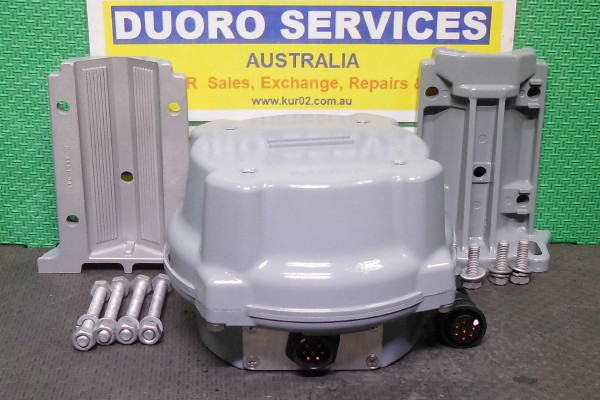

The KR-680DC Rotator :- Refurbished & Upgraded.

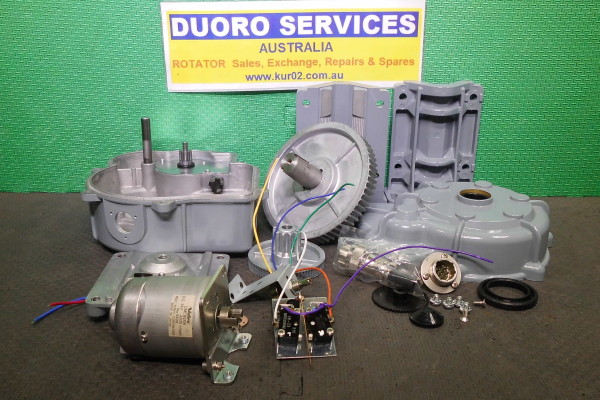

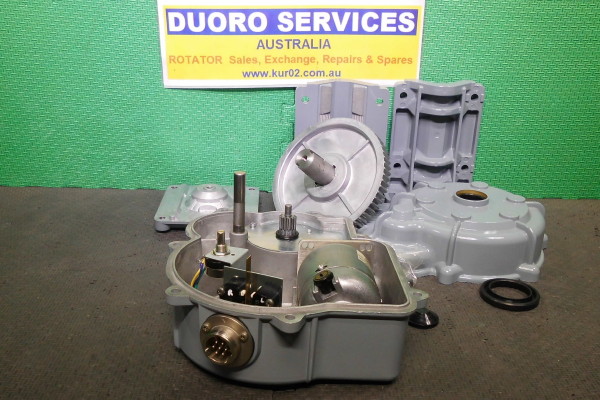

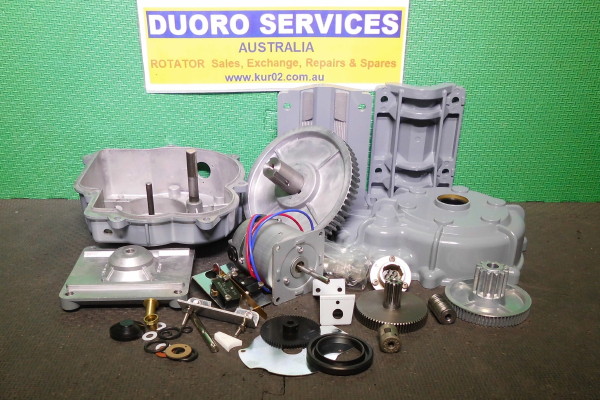

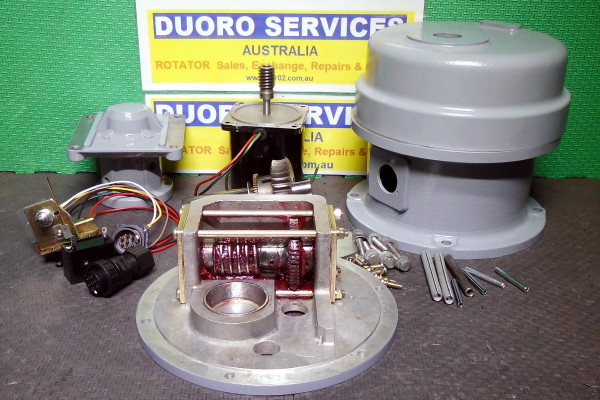

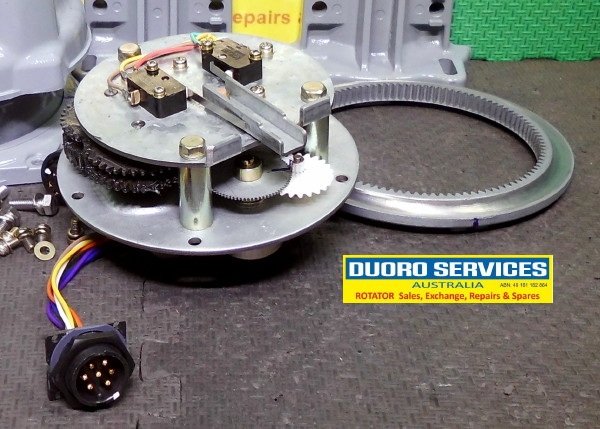

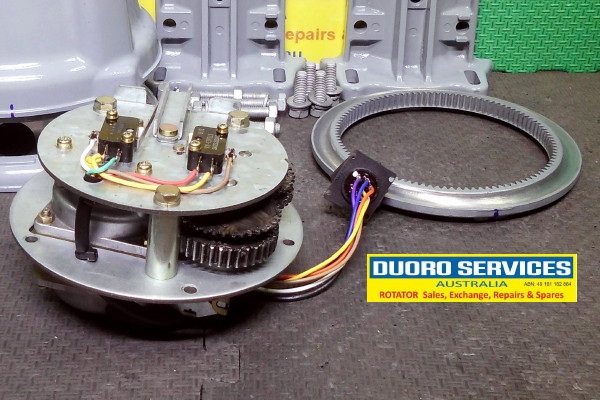

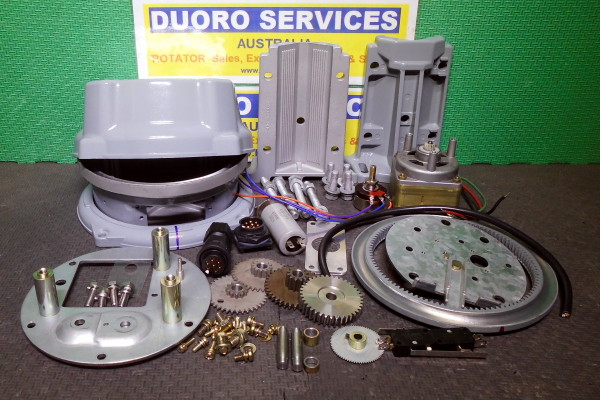

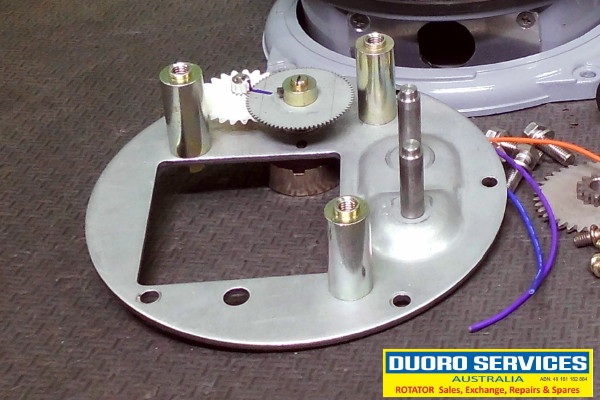

Completely disassembled, cleaned & checked all parts for damage etc. Installed DC motor & BK assembly etc from a Yaesu G-1000, Change out the damaged plastic/steel No.1 gear with a Fibre/steel gear from a KR-600, Replaced the original 7mm gear shafts with new 8.0mm versions & affixed them into the lower gear chassis, All gears were bored out to 8.0mm to suit the new shafts, Replaced the final (loose) gear stack with my NEW SOLID KD-38T-8 gear, Added new limit switches & with DC change direction diodes, Install new 500 ohm POT, Replaced the original screw terminal board with a NEW LTW 5 pin socket mounted on a new S/S mounting/cover plate, Installed RECOIL inserts:- 8 x M8 into mast clamp mount holes & 4 x M6 into  top housing for the bearing ring, NEW ball bearings were installed.  Housings & mast clamps were GLASS BEAD BLASTED then etched primed followed by painting in EPOXY ENAMEL (Pewter). Re-assembled with new grease through out. Re-aligned & calibrated to the  KR680-DS7 controller. Supplied with Stainless steel clamping & mounting hardware, also includes NEW LTW plug for the control cable.

This unit was available for exchange. CLICK For Details.





 YAESU



G-650A Rotator Set.

NOS, Serviced & Upgraded.

G-450A Rotator Set Upgraded to a G-650A configuration, includes original un-opened GAL mounting & clamping hardware .



(Qty 0) (SOLD), $AUD.



Pics below are of the actual item for sale.

I had more pics & a video but they were lost when the SD card died.



Wind Area ............... 2.00 m sq.

Rotation Torque ..... 6.0 kg/m

Brake Torque ......... 50 kg/m

Rotational Angle......450 degrees

Mast Size ................ 38 ~ 63mm (48 ~ 50mm centered)

Rotation Time ........ 63 seconds 360 degrees

Rotator Voltage ..... 24v AC



The NOS G-450A/650A Controller:-.

I purchased this controller as new unused in it's original unopened plastic bag, I had to check the insides & test it to make sure it was working properly, so while I had it apart I gave it a few upgrades.

The Back Panel:- I replaced the Molex style socket & installed a new 6 pin Cinch socket & laser cut S/S cover/mounting plate, includes new 6 pin Cinch plug .

On The Inside:- Replaced the old globes display illumination with one of my yLED-dc LED PCB.

Aligned & calibrated to the G-650 rotator.



The G-650 Rotator :- Has a 24v AC motor & unopened GAL mounting/clamping hardware.

I purchased the G-450 rotator as new/unused & upgraded it to a G-650 configuration.

The Upgrades:-

Since the G-450 does not have limit switches. The G-650 does, I added them & rewired it.

Since the G-450 only has one set of 3 stack final drive gears onto the top housing. The G-650 has 2 sets x 3 stack final drive gears, I add these gears.

Since the G-450 has a reduced size BK brake spring (less brake torque). The G-650 has the normal size BK spring, I add this normal BK spring & while I was replacing the BK Spring I did my normal upgrade of replacing the small 3mm long grub screw that hold the BK butterfly to the motor shaft, with a 6mm long version & more Loc-tight on the thread, I can apply more tightening up force using this 6mm long version.

I replace the original ? 7 pin plug/socket with a 5 new pin LTW 20amp plug/socket with S/S cover plate.

Reassembled with new grease through out.

This rotator was painted grey by the owner when he purchased it & it was put back into it's packaging & box.

Re-aligned & calibrated with the controller.

Supplied with original up-opened  mast clamping & mounting hardware.



240v AC, 36 month warranty.

This unit is available for exchange. CLICK For Details.





YAESU

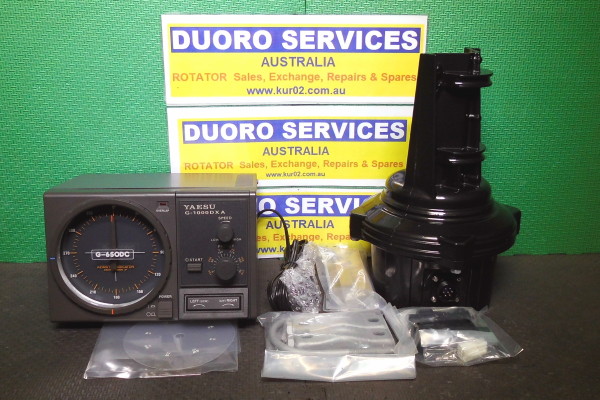

G-1000DXA Rotator Set.

NEW, Repaired, Serviced & Upgraded.

With 36 month warranty

(Qty 0) (SOLD, $AUD.



Pics below are of the actual item for sale.



youtube-logo-full_color100.jpg - 5.00 Kb

View the Yaesu G-1000DXA rotator Set video on YouTube



Wind Area ............... 2.20 m sq.

Rotation Torque ..... 6.0~11.0 kg/m

Brake Torque ......... 60 kg/m

Rotational Angle......450 degrees

Mast Size ................ 38 ~ 63mm

Rotation Time ........ 40~100 seconds 360 degrees

Rotator Voltage ..... 24v DC



The NEW DXA Controller:- I purchased this controller as new unused in it's original unopened plastic bag, I had to check the insides & test it to make sure it was working properly, so while I had it apart I gave it a few upgrades.

The Back Panel:- I replaced the Molex style socket & installed a new 6 pin Cinch socket & laser cut S/S cover/mounting plate, includes new 6 pin Cinch plug .

On The Inside:- Replaced the old globes display illumination with one of my yLED-dc LED PCB.

Aligned & calibrated to the G-1000 rotator.



The G-1000 Rotator :- Has a 24v DC motor, includes new original unopened top mast clamps & all GAL hardware.

This new rotator was faulty the day it was unpack & was never installed, I purchased it not working, so I repaired, serviced & gave it a few my upgrades.

View the video of the strip down & repair etc

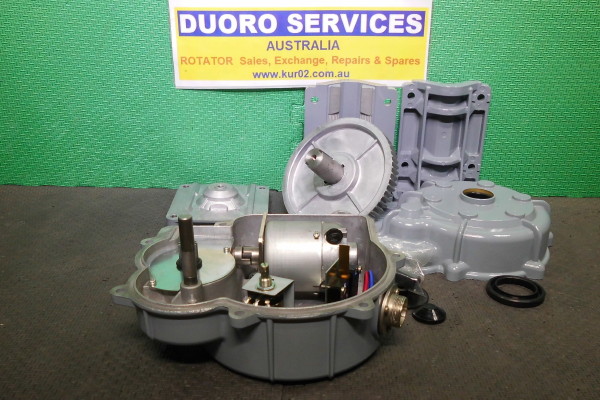

It was stripped down, totally cleaned & repaired.

Replaced the original chassis socket with a new 5 pin LTW socket (includes new 5 pin LTW plug).

Re-assembled with new grease through out.

Re-aligned & calibrated with the controller.

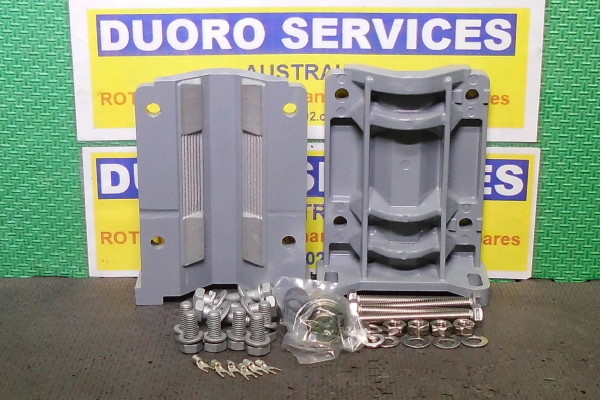

Supplied with the original NEW unopened top mast clamps & GAL mounting hardware etc.

240v AC, 36month warranty.

This unit was available for exchange. CLICK For Details.



Warranty Disclaimer : - Not covered by warranty :- Any electrical surge, spike or static discharge man made or from lightning. Breakage from turning an antenna or array to big for the capacity of the rotator. Not using the manufactures correct size control cable. From severe weather of any kind. Tower/mast collapse or failure of any kind. Dropping, abuse or misuse of any kind. Continually rotating unit beyond the manufactures duty cycle. Not servicing, checking or maintaining unit. Duoro Services shall not be liable for any incidental or consequential damage caused by the failure or otherwise of the above products.

........
