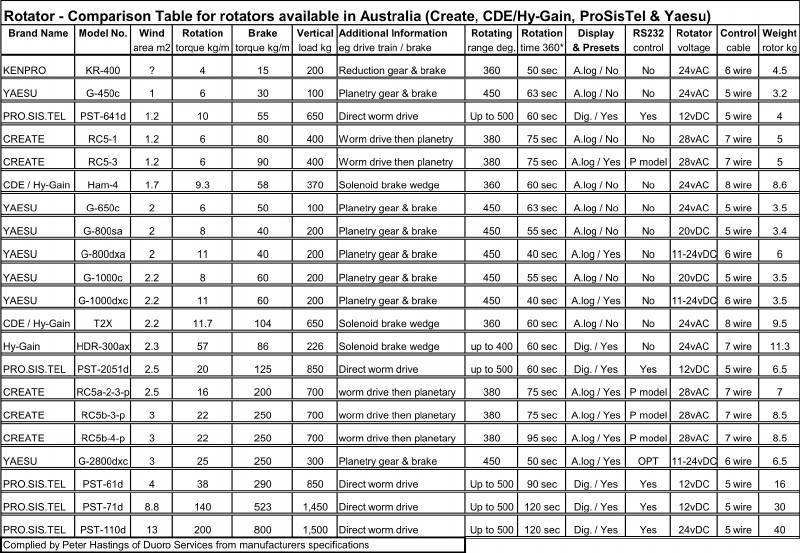

Rotator - Comparison Table.
For Rotators Available In Australia (Create, CDE, Emotator, Hy-Gain, Kenpro, ProSisTel & Yaesu).
|
Brand & Model No. |
Wind area m2 |
Rotation torque kg/m |
Brake torque kg/m |
Vertical load kg |
Extra info.... drive train / brake |
Rotation range & Time |
Controller display & Presets |
RS232 & Control cable |
Rotator voltage & Weight |
|
KENPRO KR-400 |
? | 4 | 15 | 200 |
Reduction gear & brake |
360 deg 50 sec |
Analog No |
No 6 wire |
24vAC 4.5 kg |
|
YAESU G-450a-c |
1 | 6 | 30 | 100 |
Planetry gear & brake |
450 deg 63 sec |
Analog No |
No 5 wire |
24vAC 3.2 kg |
|
ProSisTel PST-641d |
1.2 | 10 | 55 | 650 |
Direct worm drive |
Adj. 500 60 sec |
Digital Yes |
Yes 5 wire |
12vDC 4.0 kg |
|
CREATE RC5-1 |
1.2 | 6 | 80 | 400 |
Worm then planetry |
380 deg 75 sec |
Analog yes |
No 7 wire |
28vAC 5.0 kg |
|
CREATE RC5-3-p |
1.2 | 6 | 90 | 400 |
Worm then planetry |
380 deg 75 sec |
Analog Yes |
P model 7 wire |
28vAC 5.0 kg |
|
CDE/HyGain Ham-4x |
1.4 | 9.3 | 58 | 370 |
Soleniod brake wedge |
360 deg 60 sec |
Analog No |
No 8 wire |
24vAC 8.6 kg |
|
HYGAIN Ham-5-6-7x |
1.4 | 9.3 | 58 | 370 |
Solenoid brake wedge |
360 deg 60 sec |
Digital Yes |
Yes 8 wire |
24vAC 8.6 kg |
|
YAESU G-650c |
2 | 6 | 50 | 100 |
Planetry gear & brake |
450 deg 63 sec |
Analog No |
No 5 wire |
24vAC 3.5 kg |
|
YAESU G-800sa-c |
2 | 8 | 40 | 200 |
Planetry gear & brake |
450 deg 55 sec |
Analog No |
No 5 wire |
20vDC 3.6 kg |
|
YAESU G-800dxa |
2 | 11 | 40 | 200 |
Planetry gear & brake |
450 deg 40 sec |
Analog Yes |
No 6 wire |
V 24vDC 6.0 kg |
|
EMOTATOR 747-SRX |
2 | 7 | 70 | 500 |
Reduction gear & brake |
470 deg 35 sec |
Analog No |
Remote 5 wire |
24v DC 4.2 kg |
|
YAESU G-1000sa-c |
2.2 | 8 | 60 | 200 |
Planetry gear & brake |
450 deg 55 sec |
Analog No |
No 5 wire |
20vDC 3.6 kg |
|
YAESU G-1000sdx |
2.2 | 11 | 60 | 200 |
Planetry gear & brake |
450 deg 40 sec |
Analog Yes |
No 6 wire |
V 24vDC 3.5 kg |
|
Brand & Model No. |
Wind area m2 |
Rotation torque kg/m |
Brake torque kg/m |
Vertical load kg |
Extra info. drive train / brake |
Rotation range & Time |
Controller display & Presets |
RS232 & control cable |
Rotator voltage & weight |
|
CDE/HyGain T-2xx |
2.2 | 11.7 | 104 | 650 |
Solenoid brake wedge |
360 deg 60 sec |
Analog No |
No 8 wire |
24vAC 9.5 kg |
|
Hy-Gain T-2xd-2-3-x |
1.8 | 11.7 | 104 | 650 |
Solenoid brake wedge |
360 deg 60 sec |
Digital Yes |
Yes 8 wire |
24vAC 9.5 kg |
|
ProSisTel PST-2051d |
1.8 | 20 | 125 | 860 |
Direct worm drive |
Adj. 500 60 sec |
Digital Yes |
Yes 5 wire |
12vDC 6.5 kg |
|
CREATE RC5a-2-3-p |
2.5 | 16 | 200 | 700 |
Worm then planetry |
380 deg 75 sec |
Analog Yes |
P model 7 wire |
28vAC 7.0 kg |
|
CREATE RC5b-3-p |
3 | 22 | 250 | 700 |
Worm then planetry |
380 deg 75 sec |
Analog Yes |
P model 7 wire |
28vAC 8.5 kg |
|
CREATE RC5b-4-p |
3 | 22 | 250 | 700 |
Worm then planetry |
380 deg 95 sec |
Analog Yes |
P model 7 wire |
28vAC 8.5 kg |
|
YAESU G-2800sdx |
3 | 25 | 250 | 300 |
Planetry gear & brake |
450 deg 50 sec |
Analog Yes |
OPT 6 wire |
V 24vDC 6.5 kg |
|
ProSisTel PST-61d |
4 | 38 | 290 | 850 |
Direct worm drive |
Adj. 500 90 sec |
Digital Yes |
Yes 5 wire |
12vDC 16 kg |
|
ProSisTel PST-71d |
8.8 | 140 | 523 | 1,450 |
Direct worm drive |
Adj. 500 120 sec |
Digital Yes |
Yes 5 wire |
12vDC 30 kg |
|
ProSisTel PST110d |
13 | 200 | 800 | 1,500 |
Direct worm drive |
Adj. 500 120 sec |
Digital Yes |
Yes 5 wire |
24vDC 40 kg |
| Compiled by Peter Hastings of Duoro Services Australia, from manufactures specifications. Kur02.com.au | |||||||||
