CDE & Hy-Gain

ROTATOR PARTS etc.

The below 6 pics are just a pic gallery.

PLEASE SCROLL DOWN FOR A COMPLETE PARTS LIST.



Kur02 page updated 12/07/2023



CLICK below button for selected manufactures parts.

ALINCO etc  COMMON   CREATE   DAIWA   EMOTATOR   KENPRO
YAESU



PayPal LogoPayPal Logo  CLICK for PURCHASING Details  PayPal LogoPayPal Logo



Buy now with PayPal



All prices are in Australian Dollars (AUD) & includes GST.



 Click For SALES & To CONTACT Duoro Services





I ALSO SERVICE, REPAIR, REFURBISH & UPGRADE YOUR ROTATORS.



 Click For Rotator Manuals



 Click for Rotator Comparison Tables





I Have Lots Of Spare Parts Available Not All Are Listed Below, Please Contact Me, I May Have What You Need In Stock Or Within A Rotator Or Controller For Spare Parts.



.STOCK AVAILABLE  NEW, USED & REFURBISHED SPARE PARTS, ACCESSORIES & HARDWARE

.Qty..

.New

.Qty..

USED

..Qty

Refurb

..CDE.HY-GAIN ...CDE.HY-GAIN $..AUD...
Part No. & Image  Description  BALL BEARING, RETAINERS & POTENTIOMETER ...each
sold out

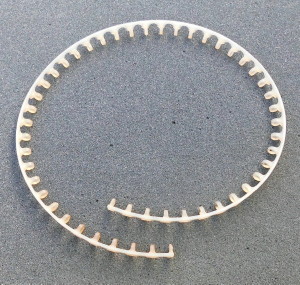

501-1300

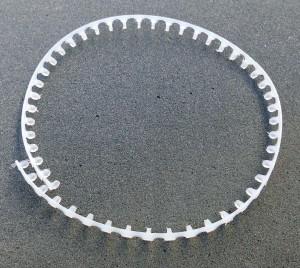

NEW. Ball bearing Retainers 49 slots x 1 piece  sold out
  sold out

501-1300U

USED. Bearing Retainers 49 slots x 1 piece in good condition.  sold out
100

Bearing9.5

NEW. Steel Ball bearing x 100 $   30.00
sold out

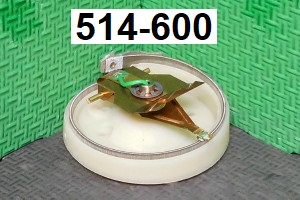

514-600N

RPM-1

NEW. RPM-1, 500 ohm POT,  for all Ham Series, T2X + BT-1, TR-44, CD-44 & CD-45 Rotators

Sold out

NEW USED Refurb Part No. & Image  Description   CONTROLLER PARTS & BRAKE DELAY PCB  $   AUD
5

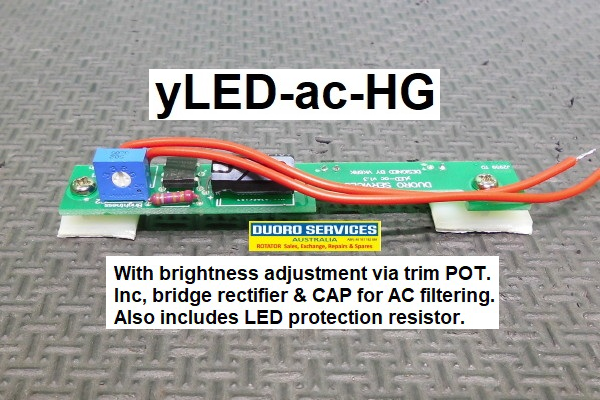

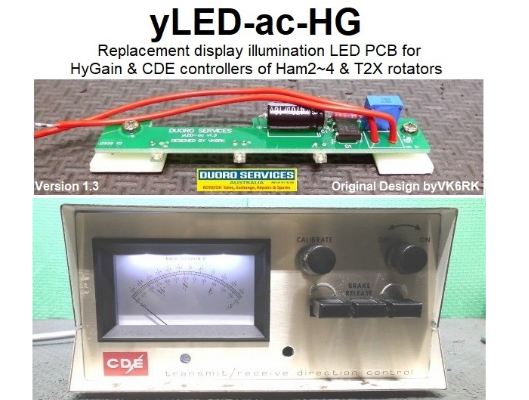

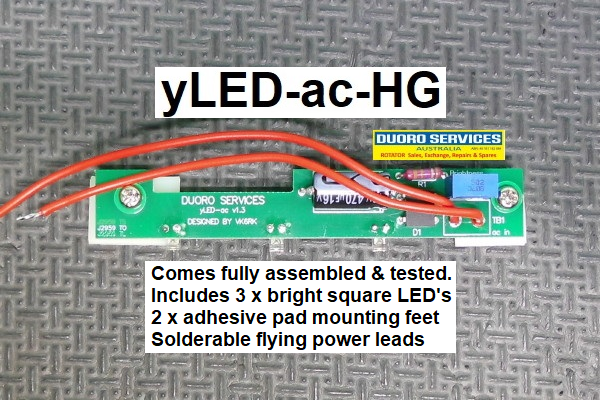

 yLED-ac-HG



 NEW - yLED-ac-HG. Replacement display illumination LED PCB for HyGain & CDE controllers of Ham2~4 & T2X rotators.

Full assembled (including adhesive feet) & tested.

Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), 2 x self adhesive feet & flying power leads + full install instructions. .

Tools require for easy installation:- Philips screwdriver, Soldering iron, Trim POT adjuster flat screw driver & Watch the yLED-ac-HG installation video.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

$  24.ea
1

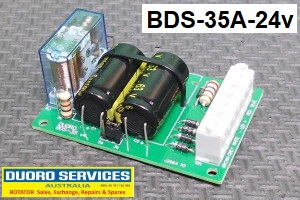

BDS-35A-24v

NEW & IMPROVED v4. Brake Delay PCB for :- Ham series + TailTwister (T2X).

This is the 24v AC version PCB.

Includes:-

Selectable 3 or 5 second delay via jumper link.

16 Amp DPDT relay & 7 way 16 amp PCB mount terminal block.

No soldering needed onto the PCB.

Also includes brake action LED output.

Plus can also be configured as an AUTO BRAKE RELEASE, controlled via the direction switches, NO BRAKE SWITCH NEEDED.

L 72mm x W 49mm x H 27mm.

I can do the upgraded for you , please contact me for a price.

$   69.00

   2

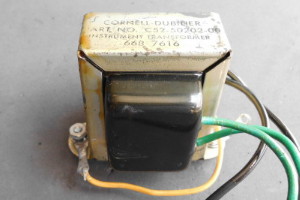

502-0200

(501-7702)

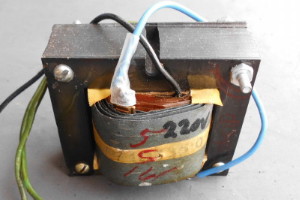

USED. Transformer (meter) 220 VAC 23 VAC 250 mA $  5.ea
   2

107-3501

(10735-01)

USED. Transformer (power) 220 VAC 26 VAC 5.0 Amp $  20.ea
NEW USED Refurb Part No. & Image  Description   BRAKE PARTS & RING GEARS ETC $   AUD
6

501-050N

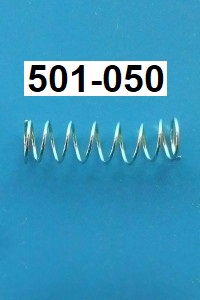

 NEW. Latch spring. Compression spring, 2 springs hold down the brake wedge latch. $  4.50ea
6

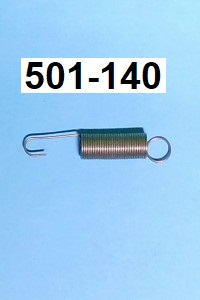

501-140N

NEW. Wedge Return Spring. 2 springs pull back the brake wedge.  $  8.ea
1

504-2310

NEW. CDE (original) Stop arm for Ham 2 or 3 $ 12.00
1

506-7000

50670-00

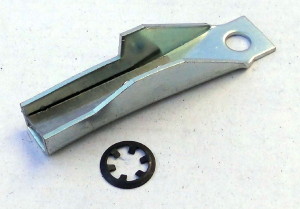

NEW. HyGain Stop Arm set for Ham 4 & T2X (TailTwister). inc reinforced stop arm & retainer. $  17 ea
sold out

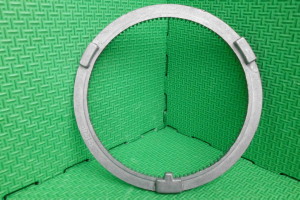

503-130N

50313-00

NEW. Ring Gear (Cast aluminium) for Ham M, 2 & 3 + AR2, AR40 & CD45 etc  $ sold
  1

503-130U

50313-00

USED. Ring Gear (Cast aluminium) in very good condition for Ham M, 2 & 3 + AR22, AR40 & CD45 etc $  25 ea

Sold

out

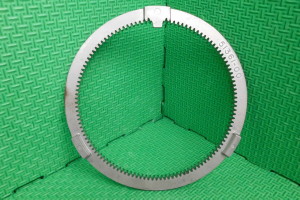

513-610N

51361-00

 NEW. Ring Gear (steel) (current version) for Ham 3 or 4 & T2X (TailTwister) $  49.00
NEW NEW Refurb Part No. & Image  Description   CHASSIS & HOUSINGS ETC $   AUD


SOLD

OUT

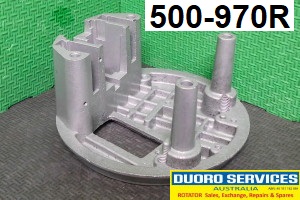

500-970R

REFURBISHED & UPGRADED. H4 & HAM Series, Brake Chassis. Has been Glass bead blasted & then painted in clear coat, Imperial threaded mounting bolt holes have been drilled out & M8 RECOILS installed.

Holds the solenoid & brake wedge system, input terminal & is the base for mounting onto the tower or lower mast clamp.

$ SOLD

OUT

SOLD

OUT

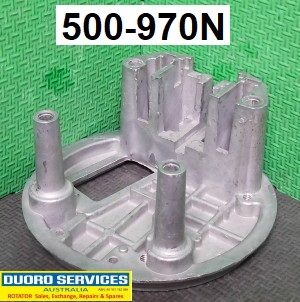

500-970N

NEW & UPGRADED. H4 & HAM Series, Brake Chassis. Imperial threaded mounting bolt holes have been drilled out & M8 RECOILS installed.

Holds the solenoid & brake wedge system, input terminal & is the base for mounting onto the tower or lower mast clamp.

$ SOLD

OUT

SOLD

OUT



503-700N

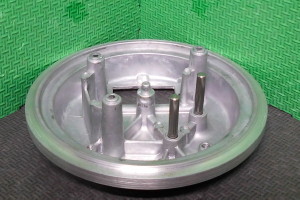

NEW. Gear Chassis base for most CDE & HyGain rotators.

Hold all gears, inc the ring gear & the limit swing bar.

 Is the base mount for non brake solenoid rotators, motor plate & motor attaches to the top & the brake assembly for the Ham series & T2X, attaches to the bottom

$ sold out

1

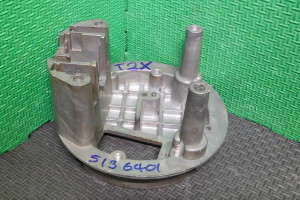

513-640N

NEW. T2X Brake Chassis. Holds the solenoid & brake wedge system, input terminal & is the base for mounting onto the tower or lower mast clamp. Has been upgraded to M8 metric mounting bolt threads by way of RECOILS inserts, also the screw holes for the terminal board have been taped out to M4. $  74 ea


NEW USED Refurb Part No. & Image  Description   T2X MAST CLAMP HARDWARE ETC $   AUD


1

set

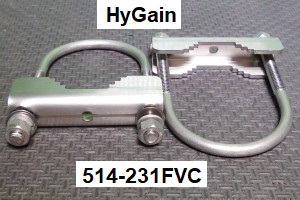

514-231FVC

513-700FV & 514-231

NEW. Folded 'V' Mast Clamp S/S & U bolt Set for T2X (TailTwister) inc. 513-700FV Stainless steel clamp & 514-231N Stainless Steel 'U' bolts & hardware $  60.set

3

sets

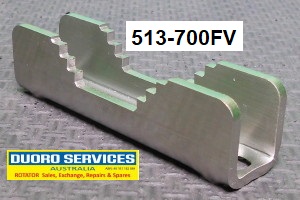

513-700FV

NEW. Replacement. Set of 2 x Folded 'V' Mast Clamp for T2X (TailTwister). Has sharp teeth to grip the mast & is manufactured from 3mm thick S/S, Laser Cut & Computer Folded. Designed & Made In Australia.   $  30.set


sold

out

513-700R



REFURBISHED. Re-zinc plated. Mast Clamp Plate (steel) for T2X (TailTwister)  $ sold
3

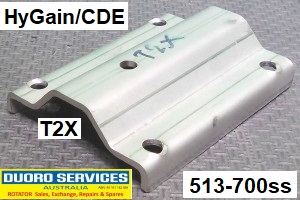

513-700ss

NEW. Replacement Stainless steel Mast Clamp Plate for T2X TailTwister. Manufactured from 3mm thick S/S Laser Cut & computer folded. Designed & Made in Australia. $  30 ea

1

set

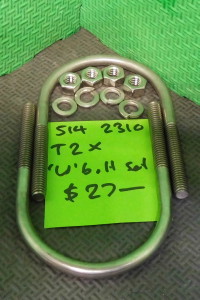

 514-231N

NEW. T2X. U-bolt set. S/S. inc 2 x U-bolts, nuts & washers for TailTwister) $ 30.set
    sold

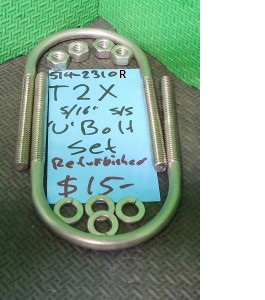

 514-231R

Refurbished. T2X. U-Bolt Set. S/S. Cleaned in special solution, checked & tested threads etc. $  sold


NEW USED Refurb Part No. & Image  Description Ham & CD series etc MAST CLAMPS & HARDWARE ETC $   AUD
     SOLD MSLD Refurbished. Lower mast bracket set for HamM, 2, 3 or 4. inc mast bracket, mast clamp plate & U-bolts etc SOLD


 SOLD

OUT

LMB-r

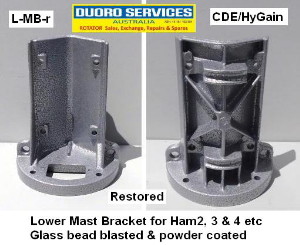

Refurbished. Lower Mast Bracket only for Ham2,3 & 4 etc. Stripped cleaned, Glass bead Blasted then Powder Coated in Silver Ripple   SOLD

8

sets

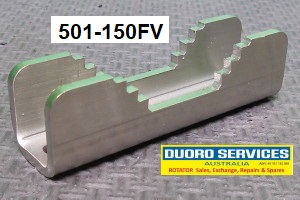

 501-150FV

 NEW. Replacement. Set of 2 x Folded 'V' Mast Clamp for all Ham Series + AR40 & CD45  etc. Has sharp teeth to grip the mast & is manufactured from 3mm thick S/S, Laser Cut & Computer Folded. Designed & Made In Australia.  $  30.set
2

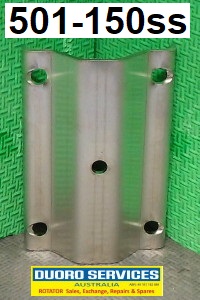

501-150ss

NEW. Replacement Stainless steel Mast Clamp Plate for all Ham Series + AR40 & CD45 etc. 3mm thick S/S Laser Cut & computer folded. Design & Made in Australia. $  30.ea
    5

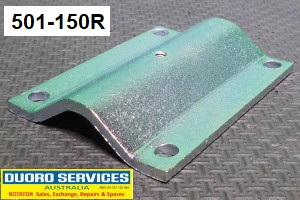

 501-150R

 REFURBISHED. Mast Clamp Plate for all Ham Series + AR40 & CD45 etc. Have been Glass Bead Blasted & then zinc plated.



$  15.ea
5 Sets

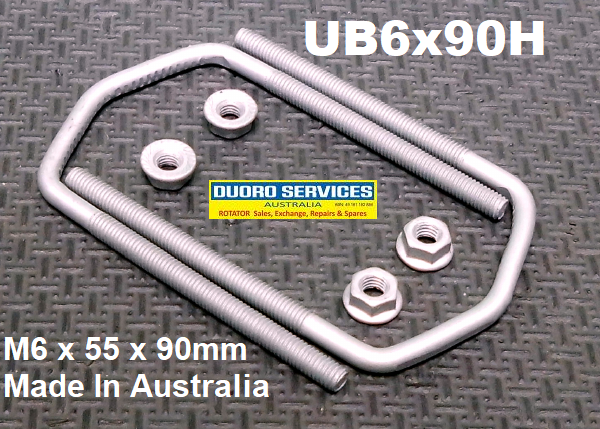

UB6x90H

NEW. Replacement Steel U-Bolt Set.

M6 x 55 x 90mm, Made In Australia by Hills.

Includes 2 x U-Bolts & 4 x Flanged toothed nuts.

Suits Ham Series + AR-22, AR-40, BT-1, TR-44, CD-44 & CD-45

$   6.00

 Per Set



SOLD

OUT

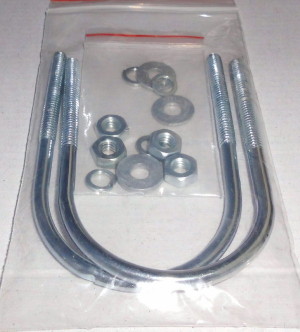

504-261R

Re-Zinc plated U-bolt Set for Ham2 or Ham3. inc 2 x refurbished  U-bolts & new hardware $  sold
sold out

514-161N

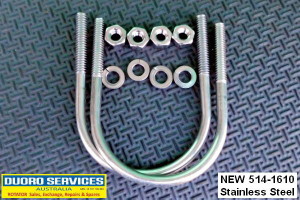

NEW. S/S U-bolt set for Ham 2, 3 or 4. inc 2 U-bolt, nuts & washers all Stainless steel $  sold
  sold out

514-161sh

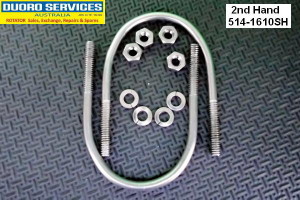

S/S U-bolt set for Ham 2, 3 or 4. inc 2 x U-Bolts, nuts & washes all stainless steel $  sold
NEW USED Refurb Part No. & Image  Description  PLUGS & TERMINALS ETC $   AUD
  sold out

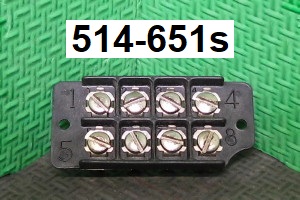

514-651s



Used. 8 screw terminal board $    4 ea
1

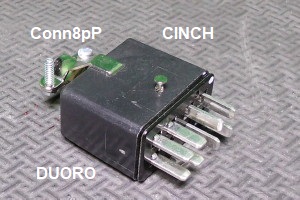

Conn8pP

640-077

NEW. Cinch-Jones 8 pin Male plug $  25 ea
