SPARE PARTS. Accessories & Hardware.





Kur02 page updated 26/04/2018



CLICK To Go To ->   CDE    COMMON   CREATE   EMOTATOR   HYGAIN   KENPRO



PayPal LogoPayPal Logo   Click For PURCHASING Details PayPal LogoPayPal Logo



Buy now with PayPal



All prices are in Australian Dollars (AUD) & includes GST.



  Click For All SALES & To Contact DUORO SERVICES



I ALSO SERVICE, REPAIR, REFURBISH & UPGRADE YOUR ROTATORS.



 Click For Rotator Manuals       Click for Rotator Comparison Tables



I Have Lots Of Spare Parts Available Not All Are Listed Below, Please Contact Me, I May Have What You Need In Stock Or Within A Rotator Or Controller For Spare Parts.

NOW STRIPING MR-750 ROTATORS FOR SPARE PARTS:-





NOTE:- DR-7500 & DR-7600 Rotators are the same as Kenpro

KR-400 & KR-600 only the controllers are different & the motor start capacitor are in the rotator.

Please go to Kenpro Spare Parts page if your rotator part is not listed

below.



.STOCK AVAILABLE NEW, SECOND HAND & REFURBISHED SPARE PARTS, ACCESSORIES & HARDWARE

.Qty.

.Qty.

..Qty

 DAIWA  DAIWA $..AUD...
NEW 2nd.H Refurb Part Number & Image  Description ...each
TO BE MADE

7501-005




Ring Gear 7501-005 for DR-7500/7600 Rotators.

EXPRESSIONS OF INTEREST.

I'am looking at getting the 7501-005 ring gear manufactured in high tensile steel, this will have to be done in a two part process, NCN Machining & Gear Cutting.

Both process are not cheap, how ever I'am looking to get a small run of 10 - 20 done at first, unless there is more interest.

The sell price should be under $275.00AUD.

Please contact me if you are interested.


  2   PL 1,2&3  Original illumination globes with fly leads for CR-4 $     1 ea
1     PL 1,2&3N NEW. Replacement illumination globes with fly leads $    1.50

7

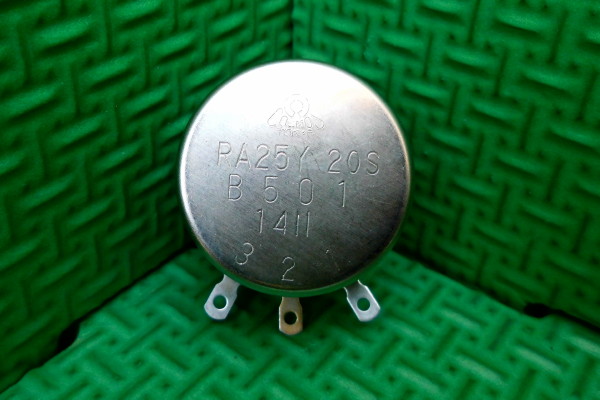

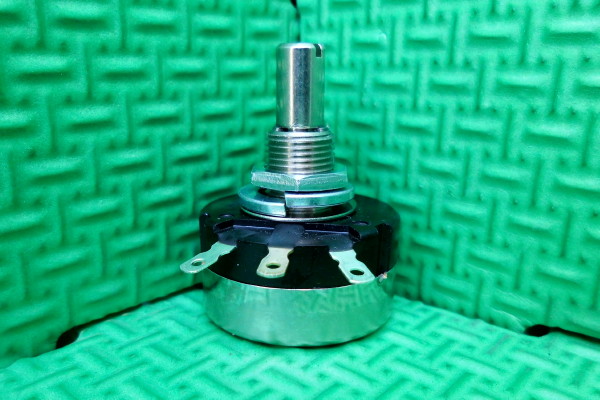

POT-500N

NEW. 500 Ohm Potentiometer for most Daiwa rotators & round controllers. Same as used in Kenpro & Yaesu etc Except these ones have limit stops in them. $  50.ea
    sold out  POT-500R Refurbished 500 ohm Potentiometer for most Daiwa rotators & controllers $  39.ea
1

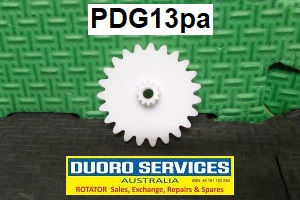

PDG-13p

NEW. POT Drive Gear (no.13) plastic in Daiwa DR-7500 & DR-7600 Rotators. $   14.ea
9

DDB-60s

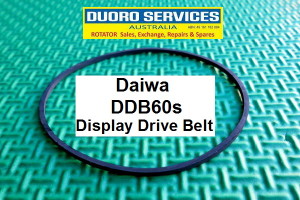

NEW Display Drive Belt. For CR-4(P), DC-7001a & DC-7011 controllers. I have just found a new supplier that sells drive belts by Daichi of Japan. This new belt has a square cross section of 1.4mm & is 60mm ID diameter. $  4.50ea
4

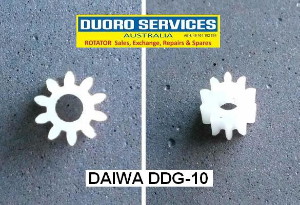

DDG-10

NEW. Replacement Display Drive Gear 10 tooth. For DC-7001, DC-7011 & CR-4(P) controllers. This drive gear is the first gear from the pulley in the display gearing & is meant to be a tight fit onto the drive shaft. The original gear cracks then starts slips making the display needle stop & start or not work at all + the POT gives faulty reading to the control circuit. Another indicator of a cracked gear is it starts to make clicking sounds as no 2 gear passes over the cracked section.

$   3.ea
NEW 2nd.H Refurb Image Description Each
1

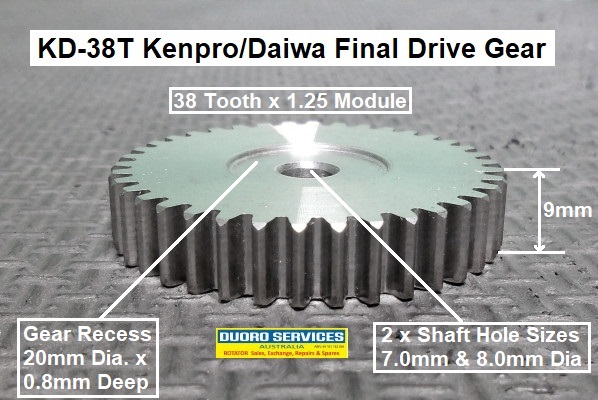

KD-38T

KD-38Ts

NEW PRODUCT For DR-7500/7600 & Kenpro KR-400/600 rotators.

KD-38T replacement single piece final drive gear (Item 18).

Specs. :- 8mm thick steel, 38 teeth & 6.8mm shaft hole, 106 gram in weight & 117 grams including the new spacer.

KD-38T replaces the 3 or 4 stack of gears, which move, separate, tracks groves in the ring gear & no 19 gear etc & has less contact area onto the ring gear.

KD-38T is made in Australia for me by SWB Plus (Newvale) Engineering.

KD-38T gear will not track groves in the ring gear & has more surface contact area with the ring gear. Which means less damage / breakages to the (rare) ring gear.

KD-38T is a direct replacement for the final drive gear in DR-7600 & Kenpro KR-600 rotators.

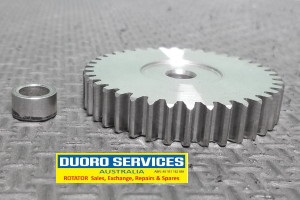

KD-38Ts will be supplied with a new (Item 15) thinner & wider spacer for DR-7500 & Kenpro KR-400 rotators, because KD-38T is thicker than the original three stack gear this will set the spacing to the same as DR7600's & KR600's.

NOTE :- All Daiwa DR-7600 & Kenpro KR-600 rotators rebuilt by me will have the KD-38T installed into them.

$ 79.ea
NEW 2nd.H Refurb Image Description Each
  6

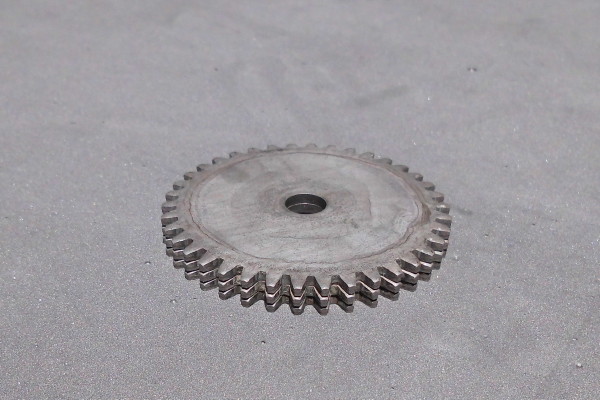

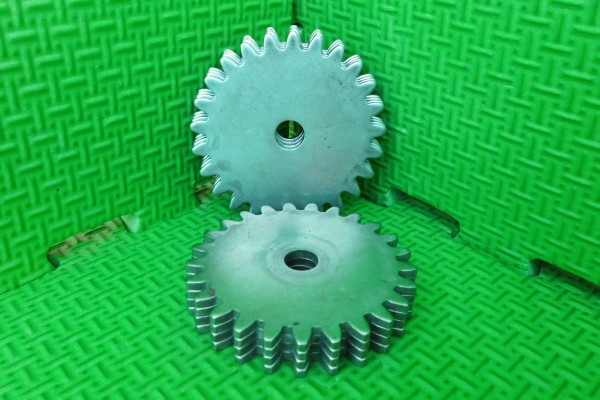

DR18-3

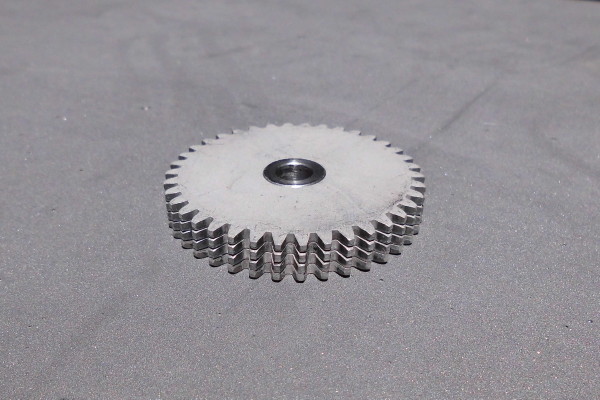

2nd hand in good condition. Final drive gear (18) for DR-7500 & Kenpro KR-400 three (3) stack. Sold as a set of three (3). $ 40 ea
  1

DR18-4

2nd hand in good condition. Final drive gear (18) for DR-7600 & Kenpro KR-600 four (4) stack & bush. Sold as a set of four (4) inc. bush. $ 50.00

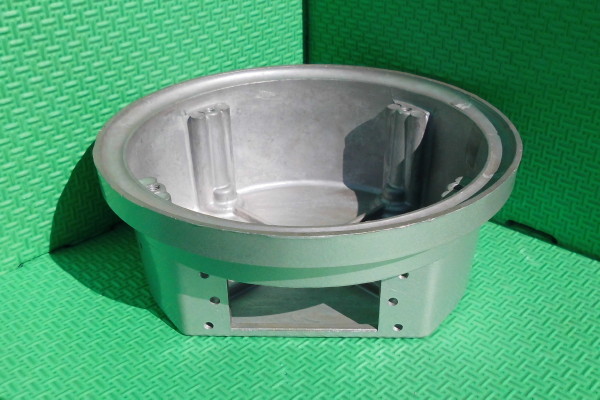

sold     DR7501-001 NEW. Lower housing for DR7500 & DR7600 same as Kenpro KR400-600 P/N 7501-001 $ 89.00
100

RB9.5

NEW Rotator Bearings 9.5mm (3/8) steel ball bearings $  30.00
NEW 2nd.H Refurb Image Description Each
    Sold

MR-750U

{gallery}D-MR750U{/gallery}

Motor/gearbox unit. Gears in good. Full stripped down & cleaned etc. Reassembled with new grease & tested. Includes cleaned housings & refurbished motor housing screws & washers. 1.53kg. $ sold
  2

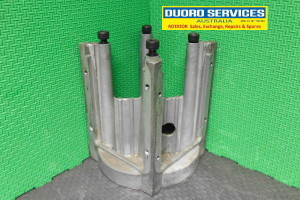

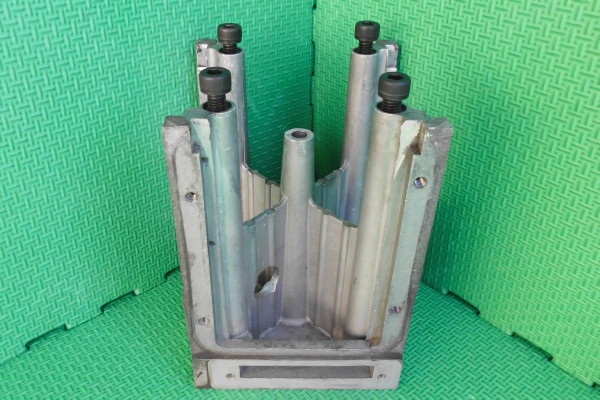

01 Chassis

MR-750 Main chassis $ 75 ea
  3

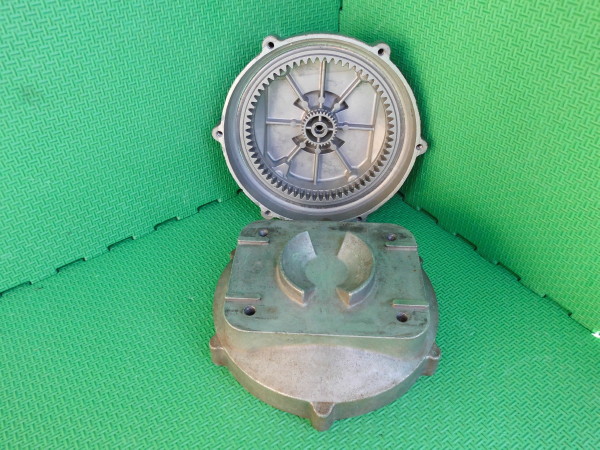

02 Top Housing

MR-750 Top Housing. $  75 ea
  3

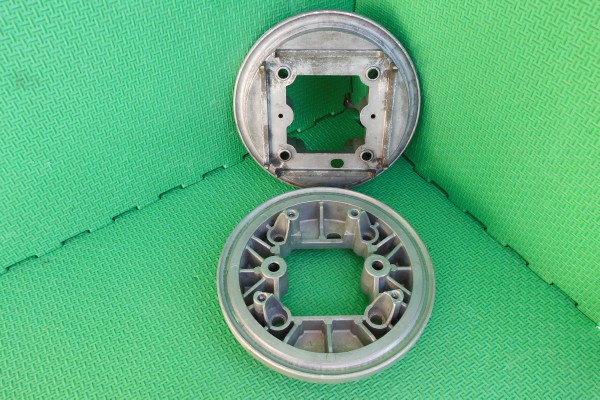

03 Top Gear Chassis

MR-750 Top Gear & Bearing Track Chassis mounts on top of (01) main chassis Includes 4 bolts $  45 ea
NEW 2nd.H Refurb Image Description Each
  3

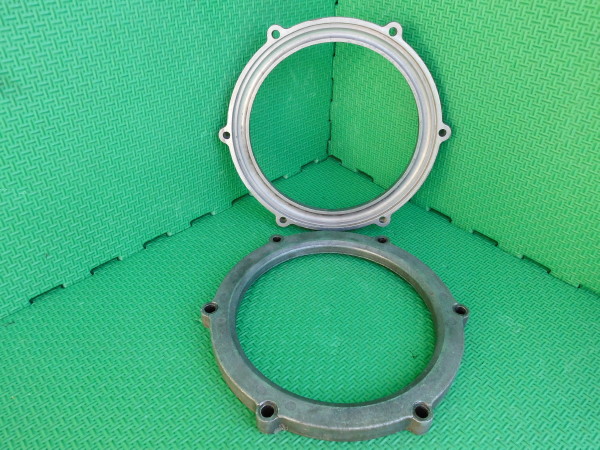

04 Lower Bearing Ring

MR-750 Lower Bearing Ring. $  30 ea
  1

07+ Head plate Plus

MR-750 (07)Head plate inc. (107)limit switches & (29) LS dog plate + (105)POT & (13)POT gear & screws in good condition

$  75.00

5

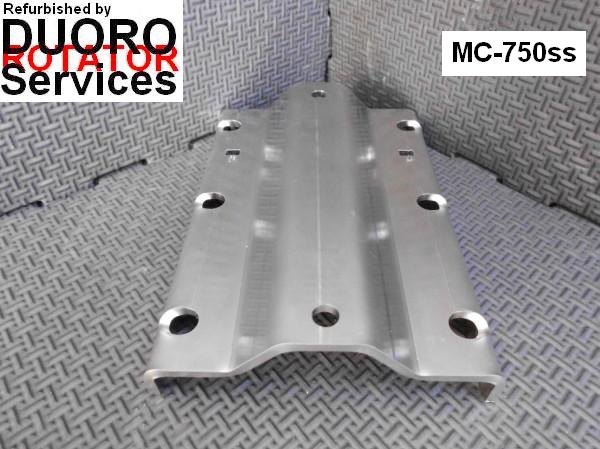

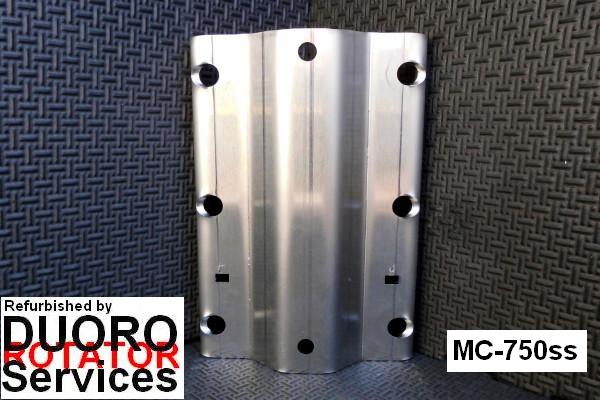

MC-750ss

MR-750 NEW Replacement Stainless Steel Single Piece Mast Clamp plate  for MR-750.

3mm Stainless laser cut & computer controlled press folded with a return edge for strength.

Will clamp pipe in mast bracket from 44 to 65mm round OD.

This clamp has been designed for several applications the extra holes & slots are for NEW the Side Mount Rotator/Bearing Bracket (SMB65ss) I have just had made.

$  49.ea




1

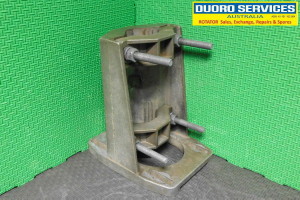

30MB+ Mast brackek + MC-750ss

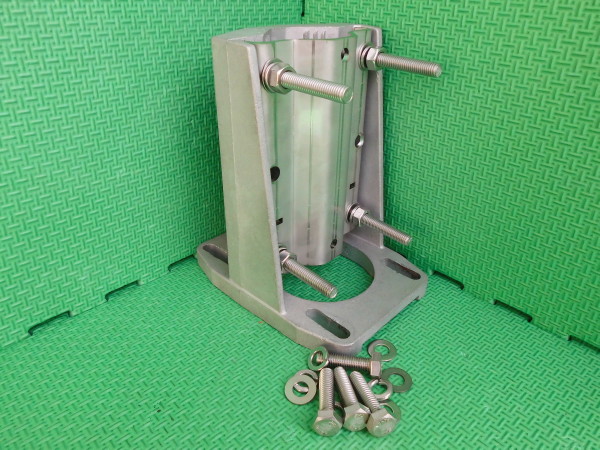

MR-750 Mast bracket (can be used for lower). Striped cleaned & glass bead blasted ready for paint or powder coating includes MC-750ss mast clamp & S/S hardware $ 160.00
  2

30MB Mast Bracket Set

MR-750 Mast Bracket set (can be used for lower) in good condition. inc. Mast clamps & Clamping bolts $ 75.ea
NEW 2nd.H Refurb Image Description Each
  6

14 Retainer

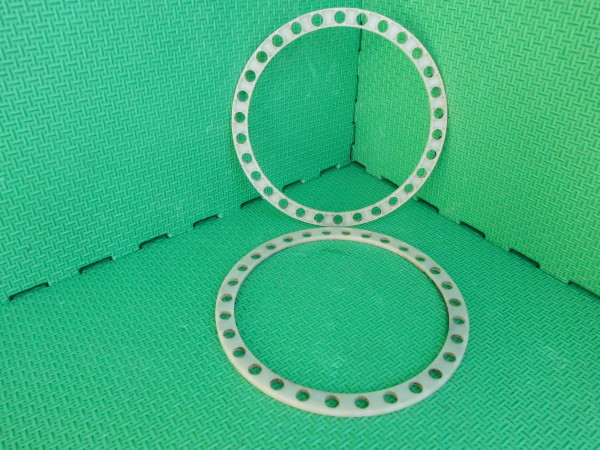

MR-750 Ball bearing retainers $    5.ea

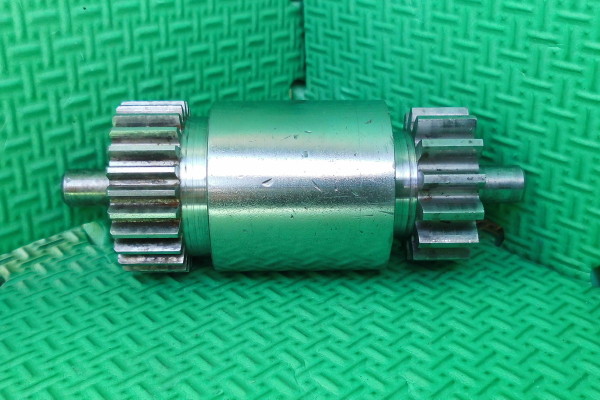

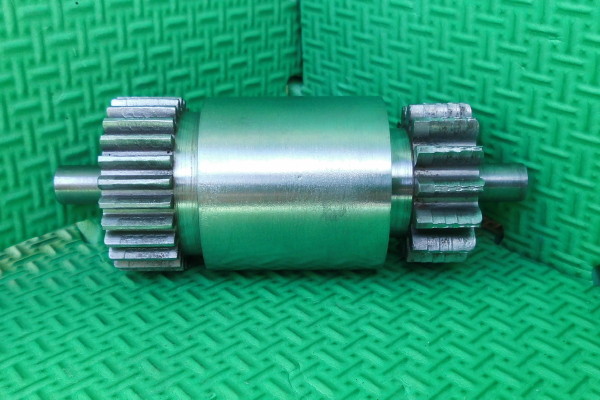

 1     06 NOS Centre Gear Cluster NOS MR-750 Centre Gear Cluster Pinion Shaft in near new condition. I was quoted $360 to have one of these clusters made. $ 200.00
  2

06s Centre Gear Cluster

MR-750 Centre Gear Cluster Pinion shaft  2nd hand has some wear $  55 ea
NEW 2nd.H Refurb Image Description Each
  3sets

36 Final Gear

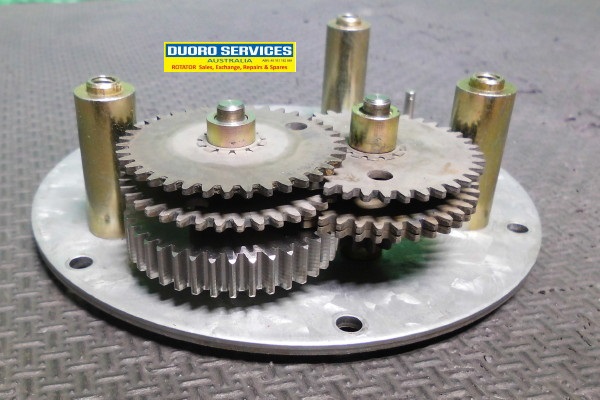

MR-750 Final drive (idle) gears sets 8 gears (4 each side) in very good condition.

$  40.ea PER SET

  6

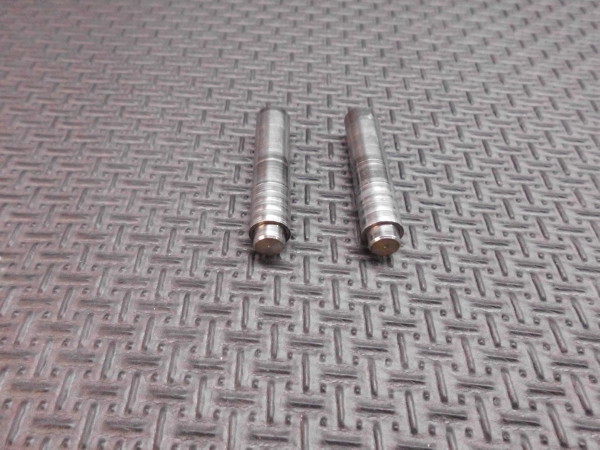

08 Shaft

MR-750 Shaft (idle pin) for final drive gears $    3.ea
  1

109 Wiring & terminal block

MR-750 Wiring harness includes 4 x 3 pin sockets & F/M spade terminals + terminal block in good condition $  25.ea
NEW 2nd.H Refurb Image Description Each
  1

31 Clamp

MR-750 Mast Clamp (has been repaired) $    2.00
  3

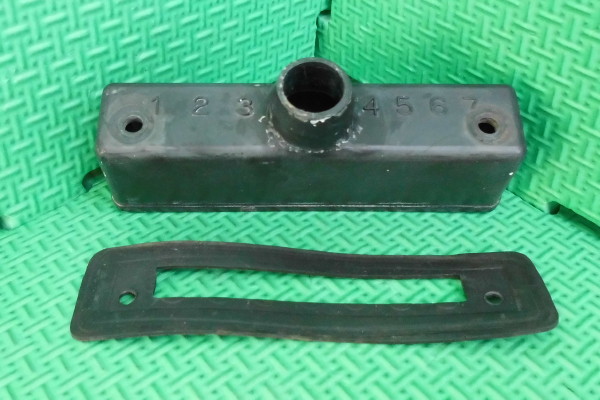

35 T. Cover

MR-750 Terminal cover & rubber seal. in good condition, some have paint &/or scratches on them  $  10.ea
    1

05 M. Cover

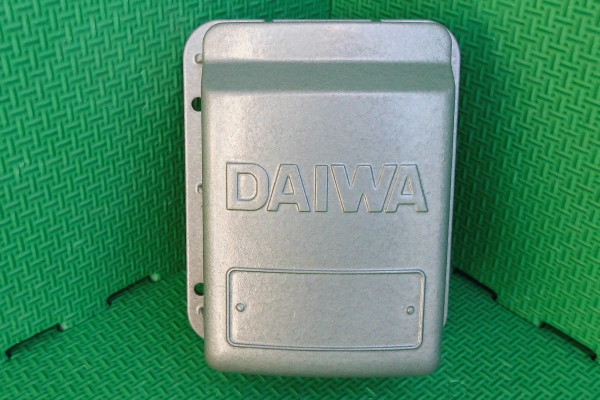

Refurbished. MR-750 Aluminium motor cover, Has been glass bead blasted to clean it up, in good condition  $  49.00
  1

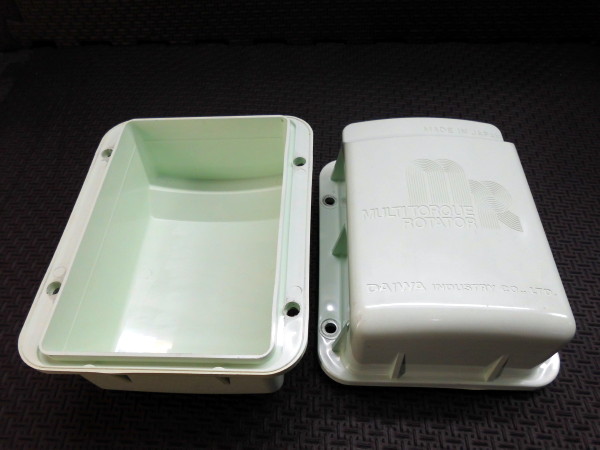

38 F. Cover

MR-750 Plastic covers (false non motor covers) light green in colour in very good condition $  20.00
NEW 2nd.H Refurb Image Description Each
60

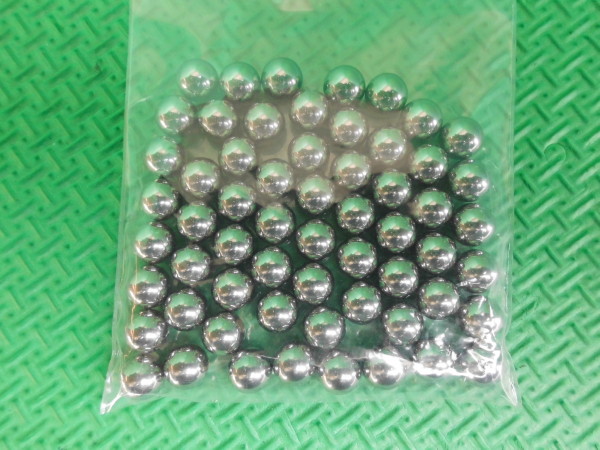

RB8.0 or 104BB

MR-750 NEW Ball bearings 8mm full set to refurbish you rotator $   12.00
  6

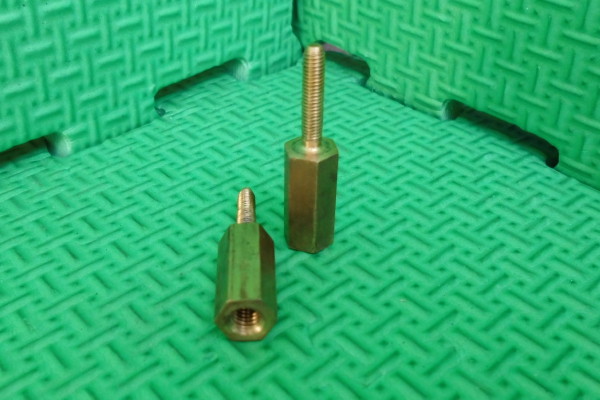

BTP

MR-750 Brass Terminal Posts for terminal cover & block $    2.ea
  sold

20-37 Pinion

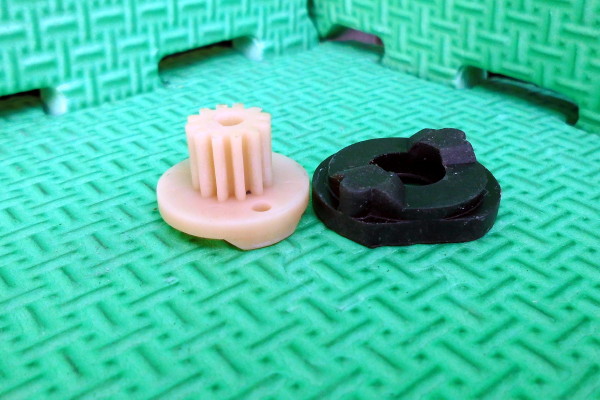

MR-750 (20) Motor Pinion & (37) Brake Shoe $   10.00
NEW 2nd.H Refurb Image Description Each
