EMOTATOR

ROTATOR PARTS etc.

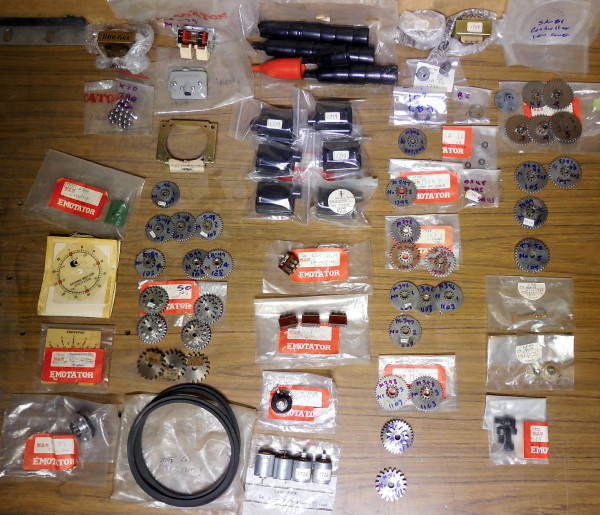

The below 6 pics are just a pic gallery.

PLEASE SCROLL DOWN FOR A COMPLETE PARTS LIST.



Kur02 page updated 26/07/2024



CLICK below buttons for selected manufactures parts.

ALINCO etc   CDE    COMMON   CREATE   DAIWA   HYGAIN   KENPRO
YAESU



PayPal LogoPayPal Logo  Click For PURCHASING Details PayPal LogoPayPal Logo



Buy now with PayPal



All prices are in Australian Dollars (AUD) & includes GST.



 Click For SALES & To CONTACT Duoro Services





I ALSO SERVICE, REPAIR, REFURBISH & UPGRADE YOUR ROTATORS.



 Click For Rotator Manuals     Click For Rotator Comparison Tables



I Have Lots Of Spare Parts Available Not All Are Listed Below, Please Contact Me, I May Have What You Need In Stock Or Within A Rotator Or Controller being stripped for Spares.

I HAVE JUST ACQUIRED ANOTHER BOX OF NOS SPARE PARTS (ie Gears, Top housings,  Terminal covers, Plug boots, Weather seals, Plugs & sockets, POT drive & divider gears, Transformers etc) MAINLY FOR THE 102/103, 105, 502, 1102 & 1103 rotators etc, I have not done individual pics yet. Please view assorted pic below.

ROTATORS & CONTROLLERS NOW STRIPING FOR SPARES :-



EMOTATOR :- NEW, NOS, USED & REFURBISHED PARTS & HARDWARE ETC
AVAILABLE STOCK



 POTS, (POTENTIOMETER) ETC

NEW

USED

Refurb

Part No. & IMAGE  DESCRIPTION $.AUD







OUT

OF STOCK

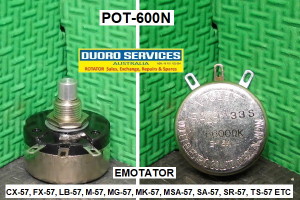

 POT-600-N

CX-57, FX-57, LB-57, M-57, MG-57, MK-57, MSA-57, SA-57, SR-57, SRX-57, TS-57, TSX-57 ETC

**SOLD OUT**.

**THESE POTS ARE NO LONGER MANUFACTURED & ARE NOT AVAILABLE NEW **.

**I SOMETIMES FIND NOS (NEW OLD STOCK), BUT THIS IS VERY RARE**.



NOS 600 ohm wire wound short shaft Potentiometer (POT) for 105, 502, 747, 750, 1102, 1103, 1105, 1200, 1300 rotators.

SOLD

OUT

    2

 POT-600-R.

Emotator P/N :- CX-57, FX-57, LB-57, M-57, MG-57, MK-57, MSA-57, SA-57, SR-57, SRX-57, TS-57, TSX-57 ETC



REFURBISHED. 600 ohm wire wound POT (short shaft for rotators). Stripped & cleaned then reassembled with new grease on the shaft & contact grease on the centre swiper. TESTED.

For EMOTATOR ROTATORS 103, 105, 501, 502, 747, 750, EV700, EV800, 1100m, 1102, 1103, 1105, 1200, 1300, 1500 & 1800.

Also available in a long shaft version for all Emotator full circle display controllers.

$   30.ea
AVAILABLE STOCK



 MAST CLAMPS & BRACKETS ETC

NEW USED Refurb  Part No. & IMAGE  DESCRIPTION $.AUD
    0

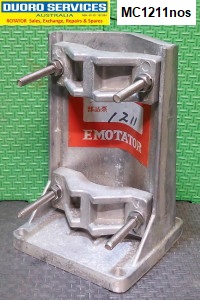

 MC-1211R

#1211



NOS  Mast Clamp/Bracket assembly. For 105 rotator (lower) or 102 rotator (upper or lower).

includes Zinc plated 'U' bolts & Aluminium mast clamps.

$ 00
    0

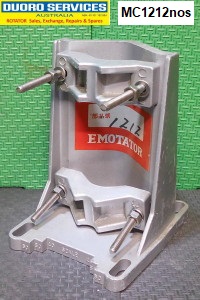

 MC-1212N

#1212



NOS . Upper Mast Clamp/Bracket Assembly for 105 $ 00
    0

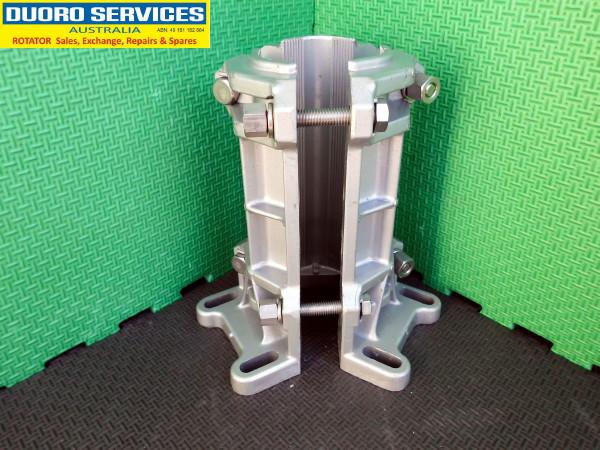

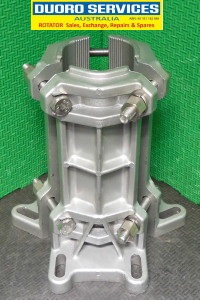

 MC-1213R

#1213



Refurbished. 502 Triple Clamping Mast Clamp Assembly. These mast clamps are unique in the fact they self centre into the middle of the rotator when clamped up on the mast. Can also used as the upper or lower mast clamps on 501, 502, 747, 750, 1102/3, 1105 & 1200 Emotator rotators

$ 00
OUT OF STOCK

 MC-1215R

#1215



NOS . Original mast clamp assembly for 1100M, 1102 & 1103.

(Note:- #1215 was later renamed to #1220), They have original GAL M10 'U' bolts & as they were originally not painted ie raw aluminium, I decided to paint them. So I had the bracket & clamps Glass Bead Blasted, etched & painted in gloss Aluminium silver.

Can also be used as upper or lower mast clamp on 501, 502, 747, 750, 1102/3, 1105, 1200 & 1300 Emotator rotators for that matter any 6 bolt mounting pattern rotator.

$ sold
    0

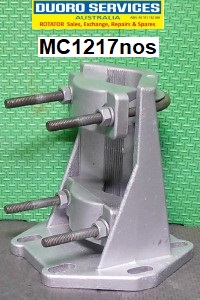

 MC-1217R

#1217



Refurbished. Original mast clamp assembly .

For 747, 750, 1105 & 1200 rotators.

inc GAL. steel U bolts & aluminium mast clamps.

$ 00
OUT  OF STOCK

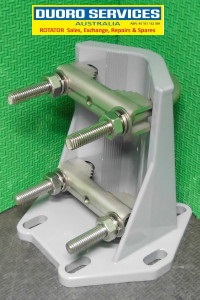

 MC-1217R+

#1217



REFURBISHED.  Mast clamp/bracket assembly.

inc. NEW  M10ss60UBC set, S/S M10 U-Bolts & MC-17cSS V Clamp Set

These U-Bolts are stainless steel M10 (10mm) NOT 8mm have a 60mm inside width & are 120mm long supplied with my new MC-17cSS S/S V clamp, nuts & spring washer.

The new V clamp is made from 3mm S/S, which has been Laser cut & computer folded for me by Micron Manufacturing.

Bracket has been Glass Bead Blasted, etch primed then painted in Epoxy enamel paint, Grey, Pewter or silver.

Mast clamp/bracket assembly can also be used as upper or lower mast clamp on 501, 502, 747, 750, 1102/3, 1105, 1200 & 1300 Emotator rotators.

$ sold
 OUT OF STOCK

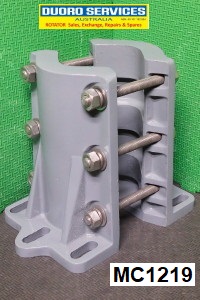

 MC-1219R

#1219



REFURBISHED. Heavy Duty MAST CLAMP for 1200 or 1300 Emotator rotators.

These heavy duty mast clamps were original designed for the 1500 & 1800 extra large rotators.

For this mast clamps to fit the smaller 120mm dia mounting pattern rotator & be able to utilize the full clamping range, it will need an adaptor plate, either the Emotator #453 wobble plate (I have a few in stock) OR MY NEW MC1219AP, see below.

Has been glass bead blasted, etched primed then painted in Gloss Epoxy Enamel (Pewter).

Weight is 2.9kg inc S/S hardware.

Supplied with M10 S/S clamping bolts.



$ Sold
2

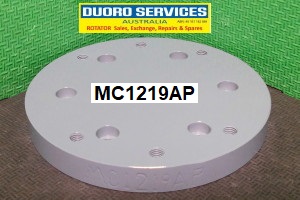

 MC1219AP

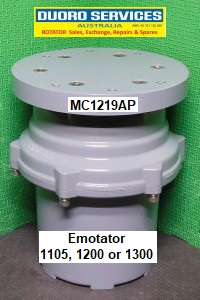

NEW.  Aluminium Adaptor Plate for the heavy duty MC-1219 (#1219) mast clamp.

This replaces the steel Emotator (#453) Universal Coupling (Wobble Plate).

This new adaptor plate was designed for the MC-1219 mast clamps so it can fit any 6 bolt (120 dia.) mount bolt pattern rotator & will then be able to accept a mast of 50 ~ 80mm dia.

Emotator 747, 750, 1102/3, 1105, 1200 & 1300 rotators.

Made from 178mm dia. solid aluminium bar 20mm thick & machined with 6 x counter sunk + 6 x M10 threaded holes & weight is 1.3kg.

It has also been Glass Bead Blasted then Etch primed followed by painting in Epoxy Enamel (Pewter).

Supplied with Stainless Steel mounting hardware.

$ 170.ea
OUT OF STOCK

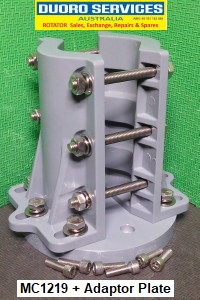

MC-1219+AP



Refurbished Mast Clamp

NEW MC1219AP.

youtube-logo-full_color100.jpg - 5.00 Kb

View the MC1219AP video on YouTube



Aluminium Adaptor Plate designed for the heavy duty MC-1219 (#1219) mast clamp.

This NEW adaptor plate & Refurbished MC-1219 mast clamps will fit most 6 bolt (120 dia.) mount bolt pattern rotator & will then be able to accept a mast of 50 ~ 80mm dia.

Emotator 747, 750, 1102/3, 1105, 1200 & 1300 rotators + Computator CT-1000 rotator + also as a lower mast clamp assembly for CREATE RC5A & RC5B rotators.

Made from 178mm dia. solid aluminium bar 20mm thick & machined with 6 x counter sunk + 6 x M10 threaded holes.

Both have been Glass Bead Blasted then Etch primed followed by painting in Epoxy Enamel (Pewter).

Total weight is 4.2kg inc S/S hardware.

Supplied with Stainless Steel mounting hardware.

$ sold
    sold

 MC-1220R

#1220



Refurbished, Original mast clamp assembly for 1100M, 1102 & 1103.

Bracket & clamps has been Glass Bead Blasted, etch primed then painted in Epoxy enamel paint, Grey, Pewter or silver.

They have the original double 'V' clamp & the U-Bolts are stainless steel M10 (10mm) NOT 8mm

Can also be used as upper or lower mast clamp on 501, 502, 747, 750, 1102/3, 1105, 1200 & 1300 Emotator rotators for that matter any 6 bolt mounting pattern rotator.

 sold out
    0

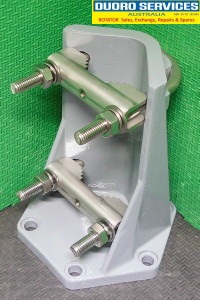

 MC-1220R+

#1220+

REFURBISHED.  Mast clamp/bracket assembly.

With my NEW  M10ss60UBC set, S/S M10 U-Bolts & MC-17cSS V Clamp Set

These U-Bolts are stainless steel M10 (10mm) NOT 8mm have a 60mm inside width & are 120mm long supplied with my new MC-17cSS S/S V clamp, nuts & spring washer.

The new V clamp is made from 3mm S/S, which has been Laser cut & computer folded for me by Micron Manufacturing.

Bracket has been Glass Bead Blasted, etch primed then painted in Epoxy enamel paint, Grey, Pewter or silver.

Mast clamp/bracket assembly can also be used as upper or lower mast clamp on 501, 502, 747, 750, 1100M, 1102/3, 1105, 1200 & 1300 Emotator rotators.

$ 00
OUT OF STOCK

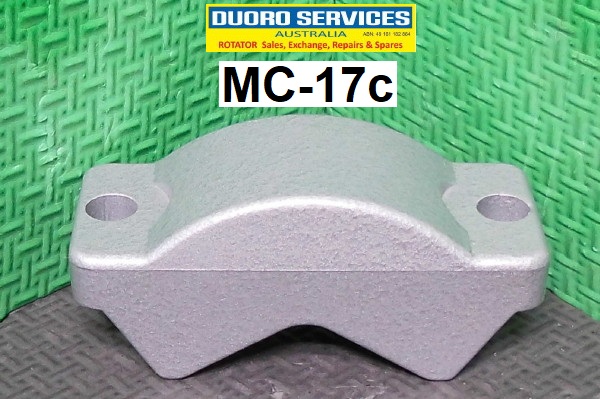

 MC-17c

FX-12, also MK-12



Refurbished.  Mast Clamp for 'U' bolt of MC-1217 (#1217) mast bracket & can also be used on the MC-1220 #1220 mast brackets.

Has been Glass Bead Blasted, etch primed then painted in Epoxy enamel paint, Grey, Pewter or silver.

$ sold

6

Sets

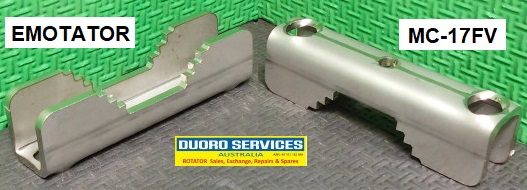

 MC-17FV

NEW.  Folded V Mast Clamp, has sharp teeth to grip the mast & is made from 3mm S/S, which has been Laser cut & computer folded. It will accept M8 & M10 'U' Bolts, Supplied as a set of 2. Designed & Made In Australia.



$  20.set
8

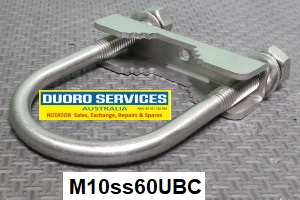

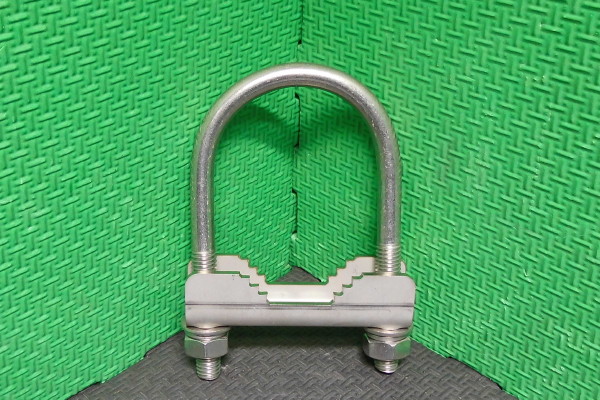

 M10ss60UBC



NEW.  S/S U-Bolts & MC-17FV Clamp Set for Emotator MC-1217, #1217 & MC-1220, #1220 mast brackets etc.

Replacement for SR-112 & SR-116, SRX-112 & SRX-116, M-112 & M-116, MSA-112 & MSA-116, MK-12 & MK-16, FX-12 & FX-16

These are M10 (10mm) NOT 8mm have a 60mm inside width & 120mm long are stainless steel supplied with my new MC-17FV Folded 'V' Mast Clamp, inc, nuts, washers & spring washer. The new MC-17FV is made from 3mm S/S, which has been Laser cut & computer folded. (Designed & Made In Australia).

$   30.ea
Available Stock



 DISPLAY DRIVE BELTS etc

NEW USED Refurb Part No. & IMAGE DESCRIPTION $  AUD
28

 DDB33s



 NEW Display Drive Belt by Daichi of Japan. For all Emotator full circle controllers.

This new belt comes in two versions with a square cross section of 1.4mm or 1.2mm & has a 33mm ID diameter.

Suit controllers:- TS, TSX, VF, FX, FXX, SA, SAX, SR, SRX, MS, MSX, MSA, MSAX, FSX & EV etc for 102/103, 105, 202, 502, 747, 750, 700, 800, 1102/3, 1105, 1200, 1300, 1800 AZ & EL rotators.

$     4.ea
1

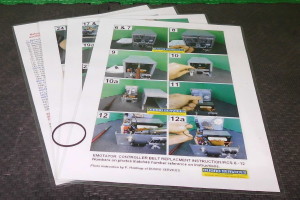

 DBR8+



Drive Belt Replacement Installation & alignment Instructions

Total of 8 colour pages of detailed instructions with 42 pictures to make installation of your new Display Drive Belt easy, also includes Alignment of the POT instruction + lubrication of shafts & gear contact points etc.

Includes 1 page of detailed text & 42 colour photos on 7 pages (double sided & laminated) only available by post.

INCLUDES 1 x DDB33s (Display Drive Belt)

Written, Photographed & Compiled by Peter H. of DUORO SERVICES

$   20.ea

+ postage & PayPal Fees


Available Stock



 BK BRAKE & PINION Parts etc

NEW USED Refurb  Part No. & IMAGE DESCRIPTION $AUD

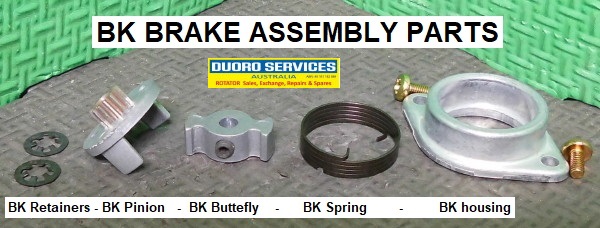

BK Assembly

CLICK TO READ MORE ABOUT THE BK ASSEMBLY

 An installation & alignment manual is now available from the Manuals Page.

 INFO

 ONLY

1

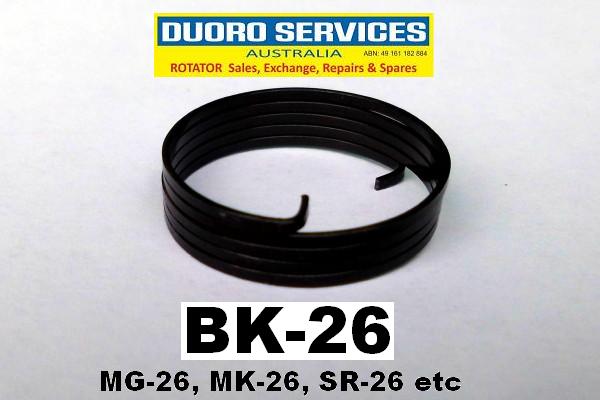

 BK-26n

 also:- FS-26, FX-42, MG-26, MK-26, SR-26

NOS. BK Spring (brake spring) for most Emotator rotators inc 501, 502, 747, 750, EV700, EV800, 1105, 1200, 1300, 1800.

CLICK TO READ MORE ABOUT THE BK ASSEMBLY

An installation & alignment manual is now available, from the Manual Page.

$   79.ea
  1

 BK-26u

 also:- FS-26, FX-42, MG-26, MK-26, SR-26

 USED. BK Spring (brake spring) for most Emotator rotators inc 501, 502, 747, 750, EV700, EV800, 1105, 1200, 1300, 1800. In good condition.

CLICK TO READ MORE ABOUT THE BK ASSEMBLY

An installation & alignment manual is now available from the Manuals Page.

$   45.ea
1

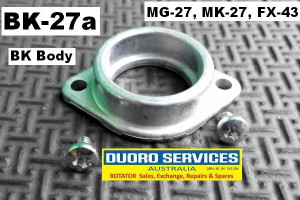

 BK-27n

also:- MG-27, MK-27, FX-43, FS-27

NOS. BK Body (Aluminium Brake Body) for 501, 502, EV700, EV800, 1105, 1200, 1300, 1800.

CLICK TO READ MORE ABOUT THE BK ASSEMBLY

An installation & alignment manual is now available from the Manuals Page.

$   87.ea
3

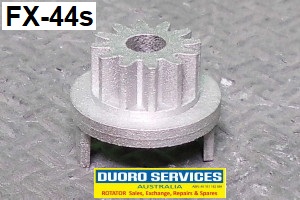

 FX-44s

Replaces FX-44



NEW.  Replacement/upgrade STEEL Pinion gear for the Emotator 1200 rotator, this NEW pinion replaces FX-44 the original aluminium version. The NEW pinion is made from Maraging Steel MS1, which is Laser Sintered 3D printed for me by ASM in Australia. The new pinion hardness is 33-37 Hrc, a lot harder than the original aluminium version, which drives a metal gear that would ware a groove into the aluminium pinion teeth.



youtube-logo-full_color100.jpg - 5.00 Kb



View the FX44s video on YouTube



CLICK TO READ MORE ABOUT THE BK ASSEMBLY

 An installation & alignment manual is now available from the Manuals Page.

$ 100.ea
1



 SA-44n

also LB-44, MG-44, MK-44, MSA-44                      (1732)



NOS. Motor Pinion 103, 502, 1102/3 1105 etc

$   19.ea
1



 SA-45n

also M-45, MK-45      (1760)



NOS. BK Rotor for 502 & 1105 rotators.

CLICK TO READ MORE ABOUT THE BK ASSEMBLY

An installation & alignment manual is now available from the Manuals Page.

$   19.ea

Available Stock



 ROTATOR LIMIT & SEAL Parts etc

NEW USED Refurb  Part No. & IMAGE  DESCRIPTION  $AUD

1

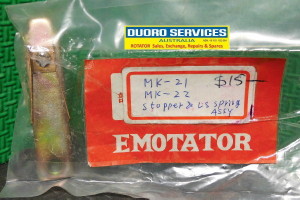

  FX-21 & FX-22

MK-21 & MK-22, MG-59 & MG-60

NOS Limit bar/stopper & LS spring assembly for 1105, 1200 & 1300 rotators.  $   15.00
1

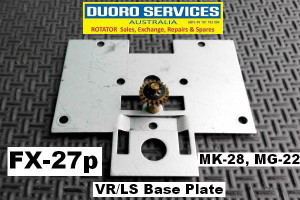

 FX-27p

also:- MK-28

NOS Limit Switch & POT divider gear PLATE in early 1105 & 1200 rotators. $   65.00
6

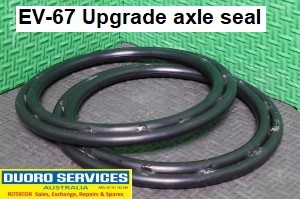

 EV-67n

NEW Upgrade Replacement 'O' Ring Seal For Hollow Axle/Housing of EV-800X elevation rotator.

This is a replacement double 'O' ring seal, that I developed & made too replace the original 2x 'V' (stacked together) seals that cracks & brakes down + is a pain when reassembling EV unit.

Only 1 'O' ring is needed each side instead of the multi stacked together original ones. This replacement 'O' ring seal are made from 2 different size & diameter 'O' rings glued together.

These replacement 'O' ring seals install in one direction only as there are tapered.

$   40.ea
  1 set

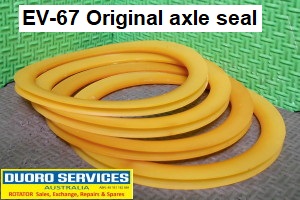

 EV-67

2nd hand Original seal set for the Hollow Axle of the EV800x elevation rotator.

They are in good condition, but are a pain when reassembling the EV rotator.

$  40 set

Available Stock



 CONTROLLER Parts

NEW USED Refurb  Part No & IMAGE DESCRIPTION  $  AUD
1

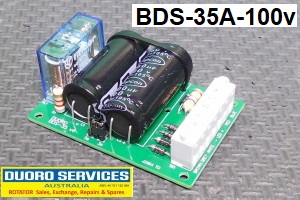

 BDS-35A-100v

NEW & IMPROVED v4. Brake Delay PCB (assembled) for :- 1102/3 MSA & MX etc controllers.

This is a 100v AC version, PCB.

Includes:-

Selectable 3 or 5 second delay via jumper link.

16 Amp DPDT relay & 7 way 16 amp PCB mount terminal block.

No soldering needed onto the PCB.

Also includes brake action LED output.

Plus can also be configured as an AUTO BRAKE RELEASE, controlled via the direction switches, NO BRAKE SWITCH NEEDED.

L 72mm x W 49mm x H 27mm.

I can do the upgraded for you , please contact me for a price.

$   69.00
  10

 TS-71,

also FX-72, MK-71, MG-71, SA-71, SR-71, TS-71, TSX-71, SR-90 etc

USED. 8 volt display lamp & holder inc screw. For most Full circle controllers. Tested working.  $     1.ea
1

 TS-73n,

also FX-73, FS-73, MG-73, MK-73, MSA-73, SA-73 SR-73, TS-73, TSX-73  (1726)

NOS. SERVO MOTOR for display mechanism assembly for all full circle controllers $   16.ea
sold

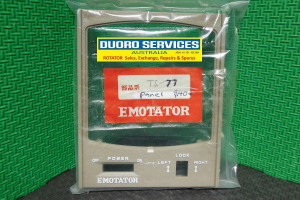

 TS-77n,

also TSX-77, MK-76, MK-86 & SR-83


NOS. Front Panel for standard controllers  sold
sold

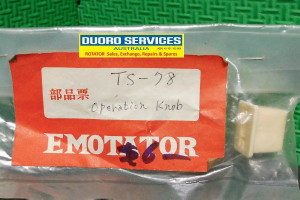

 TS-78n,

NOS. Direction switch KNOB sold
1

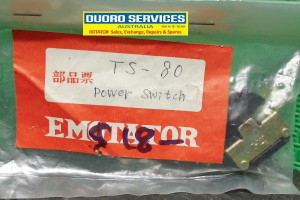

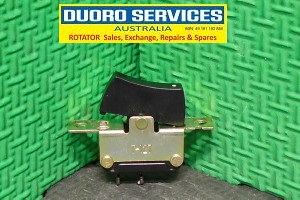

 TS-80n,

also TSX-80, FX-80, SR-80, SRX-80, MG-80, MK-80 etc

NOS. Power switch most current standard controllers $  18.00
  1

 TS-80

also as above

USED. Power switch for most standard controllers $     9.00

1

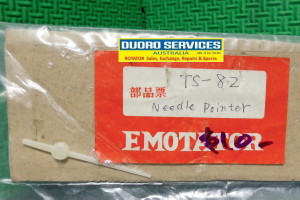

 TS-82n,

Also FS-82, FX-83, SA-82, SR-82, Mk-83, MS-82 & MSA-83

NOS. Needle Pointer For all full circle controller displays $   10.00
  2

 TS-82

also as above

USED. Needle Pointer for all full circle controller displays in black or white $     5.ea
  1    SR-89  USED. Overlap over lay plate 747SRX & 750FX $     1.00

Available Stock



 6 PIN PLUGS, SOCKETS & SCREW TERMINALS ETC

NEW USED Refurb  Part No. & IMAGE DESCRIPTION $ AUD
  1

 LB-32u

Also SA-32a

USED. Terminal cover for 103 & 502 rotators.

Some may have boots, gasket &/or screws etc. Being used may have paint, silicone etc on them, also may have cracks & chips.

$    4.00
2

 LSA-32n

 NOS Terminal cover for 102/201 rotators  $     7.ea

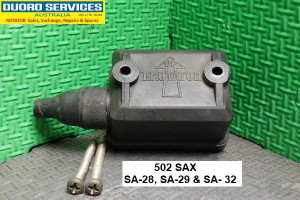

2

 SA-32n

Also LB-32N

NOS Terminal Cover Assembly for 103 & 502 rotators. Inc. cover, boot, screws & some have boot clamps.  $   19.ea


sold

out

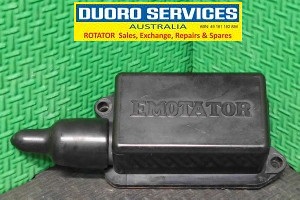

 TS-32u

also SR-32, E-32 & V-32

USED. Terminal Cover assembly for 105, 747,750, EV-700 & EV-800 rotators . With & without weather boot & screws $
  2

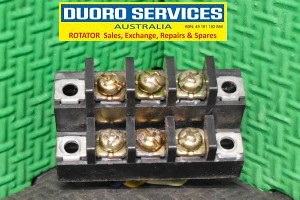

 TS-33u


USED. Screw terminal block for 105 rotators. $     8.ea
1

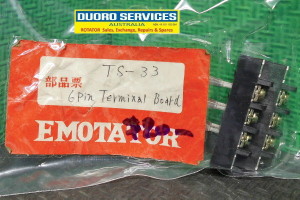

 TS-33n

NEW Screw Terminal block for 105 rotators. $   30.ea


sold

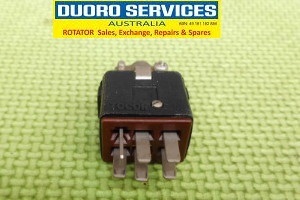

 SR-33u

also E-33, LB-33, SA-33, SR-33, V-33 etc

USED. Rotator 6 pin Square Male chassis plug.

For 103, 502, 747, 750, EV-700, EV-800 rotators.

$
  1

 SA-34u

also :- E-34, LB-34, SA-34, SR-34, SRX-34, V-34

USED. 6 pin square F/M socket for rotator end of cable cable. For 103, 502, 747, 750, EV-700 & EV-800 rotators  $     5.ea
  SOLD

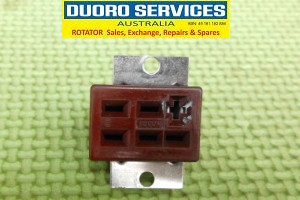

 SR-76u

also EV-76-2, DC-76-2

USED. Controller 6 pin square female chassis socket with adaptor/cover plate.

For controllers of 501/502 747, 750, EV-700, EV-800 etc

$
  sold

 SR-77u

USED. 6 pin Sq. Male plug for controller end of cable. For 103, 501/502, 747/750, EV-700 & EV-800 rotators .

$
          $
Available Stock



 7 - 8 PIN PLUGS, SOCKETS & BOOTS

NEW USED Refurb  Part No. & IMAGE DESCRIPTION $  AUD
  8

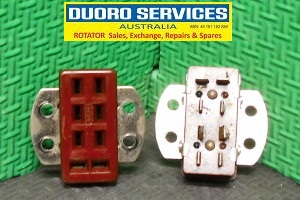

 MSA-76u

also FX-76, M-76, MK-76, MG-76, FS-76, DC-76, EV-76

USED. 8 pin Square F/M Chassis Socket.

For controllers 502MSAX, 750FXX, 1102/3MSAX/MXX, 1105MSAX, 1200FXX, 1300MSAX, 1800FSX, EV700D5X, EV800DX & EV800D7X etc

$     5.ea
  sold

 MSA-77u

also FX-77, M-77, MK-77, MG-77, FS-77, DC-77, EV-77

USED. 8 pin Square Male Plug for controller end of control cable.

For 502MSAX, 750FXX, 1102/3MSAX/MXX, 1105MSAX, 1200FXX, 1300MSAX, 1800FSX, EV700D5X, EV800DX & EV800D7X etc

1

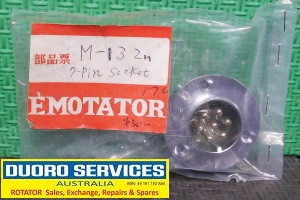

 M-132n

also FX-132, FS-132, MK-132, MG-132, etc

NOS. 7 pin male round Chassis Socket for rotator.

For 1102/3, 1105, 1200, 1300, 1500 & 1800 rotators.

$   30.00
  6

 MSA-132u

also FX-132, FS-132, M-132, MK-132, MG-132 etc

USED. 7 pin male round Chassis Socket for rotator.

For 1102/3, 1105, 1200, 1300, 1500 & 1800 rotators.

In average to good condition.

$    5.ea


SOLD

OUT

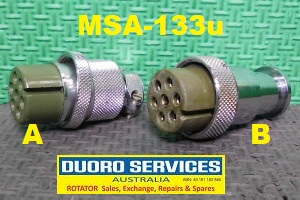

 MSA-133u

Also FX-133, FS-133, M-133, MK-133, MG-133 etc

USED. 7 Pin F/M round PLUG for rotator end of control cable.

In good condition, some may inc MK-134 boot.

They have been stripped down & clean up.

They also come in two versions (A) Screw down cable clamp, (B) Hollow bolt cable clamping.

$   25.ea
7

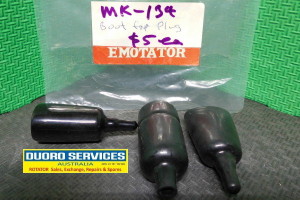

 MK-134n

NOS. Weather boot for round plug of rotator.

For 1102/3, 1105, 1200, 1300, 1500 & 1800 rotators.

$     5.ea
  1 set

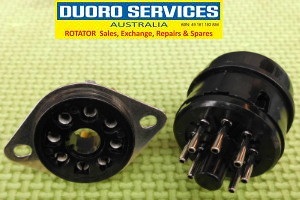

 TSX-68 & 69

USED. Round 8 pin Socket & Plug set for TS & TSX controllers of 105.

In good condition. SOLD AS A SET ONLY


$   15.ea

Available Stock



 102/103 LBX & SA :- ROTATOR Parts

NEW  USED Refurb  103 Part No. & IMAGE DESCRIPTION .  $ AUD
50

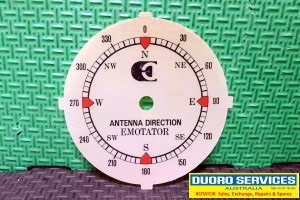

 SAX-Compass    (DD-1700)

NOS. Compass Direction Dial sheet for 103/502 SAX full circle controllers.

80mm in diameter, translucent plastic.

$     1.ea
8      LBX-Compass        (1700a) NOS. Compass plate for 103/502 LBX Panel meter controllers (aluminium) $     4.ea
1

 LB-36 / LSA-36

NOS. Original gear chassis (gear frame) for 102/103 rotators $   36.00
2

 LB-44,

also SA-44, MG-44, MSA-44                                                 (1732)

NOS.  Motor Pinion for 103, 502, 1102/3, 1105 rotators

$   19.ea
1      S-46                       (1733) NOS. Gear No.1 for 103 $   19.00
3      S-47/48                  (1715) NOS. Gear No.2 & 3 for 103 $   19.ea
1      S-49                        (1750) NOS. Gear No.4 for 103 $   19.00
4      S-50                       (1753) NOS. Gear No.5 for 103 $   29.ea
2      S-51                       (1713) NOS. Gear No.6 for 103 $   29.ea
1

 SA-55,

also LB-55, M-55, MSA-55            (1756)

NOS. POT Drive Gear from top housing to POT.

For 103, 502, 1102/3 rotators

$   12.00
2

 SA-56,

also LB-56, M-56, MSA-56            (1757)

NOS. POT Divider Gear for 103, 502, 1102/3 rotators $     8.ea
1

 SA-64,

also LB-64, M-64, MSA-64           (1755)

NOS. Motor Start CAP 6.8mfd (for 100v motors) 103, 502, 1102/3 rotators. $   13.00
2       SA-67                     (1717) NOS. Weather Seal (for bearing ring) 103 & 502 rotators $     4.ea
2      SA-72                      (1728) NOS. Transformer Pri 220 & 240v, Sec 8v & 12v $   16.ea
1      SA-81                     (1771) NOS. Lens/cover for 103/502 SAX full circle controllers $   19.00
Available Stock



 105 TS, TSX & LBX:- ROTATOR Parts

NEW USED Refurb  105 Part No. & IMAGE DESCRIPTION . $ AUD
2

 TS-13

NOS. Original TOP housing for 105 rotator.  $   89.ea
sold

 TSX-40

USED. 24v AC motor for 105 rotator.  sold
1 set      TS-45>50                (1765) NOS. Gear Set (pinion to gear N0.5) for 105 rotator. $ 119.00
2      TS-47/48                 (1766) NOS. Gear No.2/3 for 105 rotator. $   19.ea
1      TS-49                        NOS. Gear No.4 for 105 rotator. $   29.00
1      TS-50                       (1770) NOS. Gear No.5 for 105 rotator. $   29.00
  1

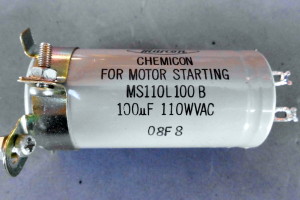

 TS-64

also C100u110v, MS100L110

USED. Motor start capacitor (for 24v AC motor) 100uF x 110v (28 x61mm) for 105 rotators. TESTED  $   12.ea
1

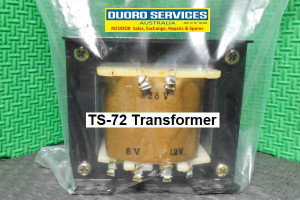

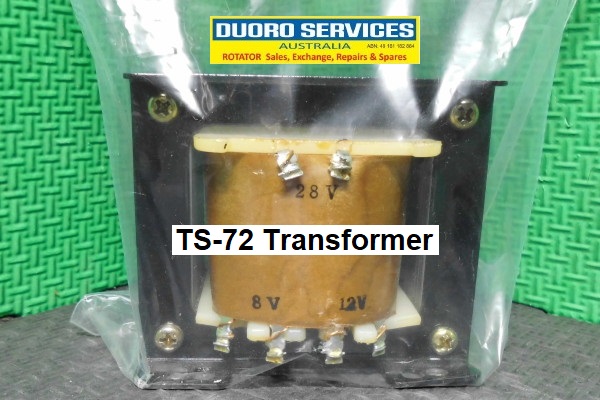

 TS-72

NOS 220-240v AC Transformer for 105TSX (24vAC rotator). Output 28v, 12v & 8v $ 110.00

Available Stock



 502 SAX, LBX & CXX:- ROTATOR Parts

NEW USED Refurb  502 Part No. & IMAGE DESCRIPTION . $ AUD

SOLD

OUT



 CX-13

also SA-13, M-13, MSX-13

NOS Top Gear Housing for 502 & 1102/3 rotators. $
  1

 SA-35

also CX-35, M-35, MSA-35

USED. Top gear plate/chassis (steel) for 502 & 1102/3 rotators $     9.ea
    1

 SA-35r.

also CX-35, M-35, MSA-35

Refurbished. Top gear plate/chassis (steel) for 502 & 1102/3 rotators. Cleaned & zinc plated (silver). $   16.00
    2

 SA-41r.

also M-41, MSA-41

Refurbished. Motor Plate for 502, also 1102/3 rotators. Cleaned & zinc plated (silver).  $   12.ea
1

 SA-41n

also M-41, MSA-41                             (1711)

 NOS. Motor Plate for 502 & 1102/3 rotators. $   10.00
1

 SA-44n

also LB-44, MG-44, MK-44 MSA-44                      (1732)



 NOS. Motor Pinion for 103, 502, 1102/3 1105 rotators etc. $  19.ea
`1

SA-45

also M-45, MK-45      (1760)

NOS. BK Rotor for 502, 1105 rotators.

CLICK TO READ MORE ABOUT THE BK ASSEMBLY

An installation & alignment manual is now available from the Manuals Page.

$   19.ea
1

 SA-46

also CX-46,               (1735)

 NOS. Gear No.1 for 502 rotator. $   19.00
1

 SA- 47/48

also CX-47/48, M-248

 NOS. Gear No.2 & 3 for 502 rotator & No.3 gear for 1102 rotator. $   19.00


 SA-49r.

also CX-49, M-49, MSA-49

Repaired.  Gear No.4 for 502 also 1102/3 rotators. The large gear was replaced. $   19.00
1

 SA- 50

also CX-50, M-50        (1746)

 NOS. Gear No.5 for 502 & 1102/3 rotators. $   29.00
1

 SA-51

also CX-51, M-51,       (1739)

 NOS. Gear No.6 for 502 & 1102/3 rotators. $   29.00
  SOLD

 SA-110

also CX-110, M-110, MSA-110

 USED. Stopper Ring for 502 & 1102/3 rotators  $   19.ea


Available Stock



 1100m, 1102 & 1103:- ROTATOR Parts

NEW USED Refurb   Part No. & IMAGE DESCRIPTION. $ AUD
1

 MXX transformer

NOS display transformer 220v PRi , 15v sec for 1100MXX controller. $   15.00
3

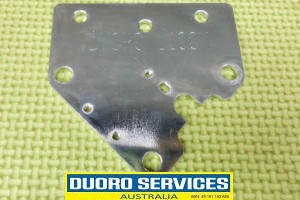

 1100m-35n

 NEW. UPPER FRAME, top gear plate (upgrade) for 1100m rotators.

Laser Cut by Micron Manufacturing to use current standard size POT (POT-600N).

$   49.ea
    1

  M-35r.

also MSA-35

Refurbished.  Upper frame (top gear plate) for 1102/3 rotators.

Strip cleaned & re-zinc plated.

$   16.00
  1

 M-46

also MSA-46

USED. Motor Pinion gear in good condition or 1102/3 rotators. $   10.ea
  0

 M-246/346

also MSA-246/346

USED. Gear No.1   (80/12s) in good condition for 1102/3 rotators. sold out
0

 M-246/346n

also MSA-246/346,    (1741)

 NOS. Gear No.1   (80/12s) for 1102/3 rotators. sold out
1

 M-247n

also MSA-247,         (1742)

 NOS. Gear No.2   (43/12L) for 1102 rotators. $   19.00
0

 M-347n

also MSA-347,          (1745)

 NOSGear No.2   (43/12s) for 1103 rotators. sold out
1

 M-248n

also MSA-248,         (1743)

 NOS. Gear No.3   (32/12L) for 1102 rotators. $   19.00
0

 M-348n

also MSA-348,          (1763)

 NOSGear No. 3  (43/12s) for 1103 rotators sold out
    1

 M-40r.

also MSA-40

Refurbished.  Motor (100v). Stripped, cleaned & installed new bearings. $   75.00
    sold

  M-49r.

also MSA-49

Repaired.  Gear No.4  (32/12L) for 1102/3 rotators. $
order

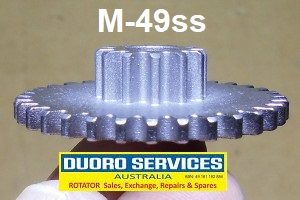

 M-49ss.

 REPLACMENT UPGRADED. Gear No.4  double thickness 32 tooth gear (as it should have been) for 1102/3 & 502 rotators. This replacement gear is manufactured from stainless steel in one piece by Laser Sintered 3D printing. Since this gear is thicker than the original gear it has a recess on the bottom side for the pinion gear beneath it. Designed & Made In Australia.

youtube-logo-full_color100.jpg - 5.00 Kb

View the video I made on my YouTube channel.

$   POA
1

 M-50n

also MSA-50             (1746)

 NOSGear No.5   (32/11) for 1102/3 rotators. Also suit 502 rotator. $   29.00
1

 M-51n

also MSA-51,             (1739)

 NOS.Gear No.6   (18T) for 1102/3 rotators. Also suit 502 rotator. $   29.00
  1

 M-51

also MSA-51

USED. Gear No.6   (18T) in good condition for 1102/3 rotators. Also suit 502 rotator. $   20.00
  2    M-53 & M-54 USED. Gear shafts in good condition for 1102/3 rotators. Also suit 502 rotator. $     2.ea
    sold

 M-58r.

also MSA-58

Refurbished.  Limit switch assembly. For 1102/3 rotators. Also suit 502 rotator.

Strip cleaned & re-zinc plated.

SOLD
  SOLD    M-100~M-105 USED. Brake solenoid (wedge) assembly in good condition $ sold
    1 set   M100~M105r.

Refurbished.  Brake solenoid 100v (wedge) assembly.  for 1102/3 rotators.

Re -zinc plated & new parts used on rebuild.

$  79.00
  1

 M-110

also MSA-110

USED. Stopper ring.

For 1102/3 rotators. Also suit 502 rotator.

$  15.00
  sold

 M-113

also MSA-113

USED. 1102/3 Top Housing. For 1102/3 rotators. Also suit 502 rotator. SOLD

Available Stock



 COMMON ROTATOR Parts

NEW USED Refurb  Part No. & IMAGE DESCRIPTION $ AUD
100

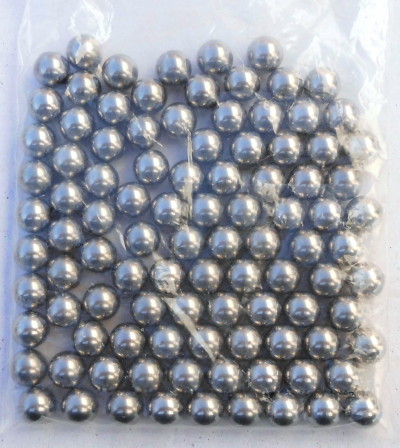

 RB9.5

NEW Rotator Bearings 9.5 (3/8) steel ball bearings $  30.00




DUORO Services

Installation & sales of communications equipment for

CB - Commercial - Amateur & Marine from the following suppliers.

Laser Antenna GME R F Industries

Phone

Australia 0427 043 054

International +61 427 043 054
